🔶 Plugin draw.io for obsidian

🚀 Features

• 🧩 Interactivity – bind your note links to shapes, add external links, and insert markdown fragments!
• 🛜 Works 100% offline – No internet required!
• 🔐 Privacy-first – Runs a local server on your machine.
• 📐 Mermaid & LaTeX - the draw.io native support Mermaid and LaTeX.
• 🖼️ Support Canvas - Use diagram in Canvas, linking notes, add external links!

✨ Interactive diagrams

⚠️ at the moment, work ONLY the reading mode

🖇️ Linking shapes with notes & external links

To link your notes or external resources to shapes, right-click on a shape in the editor and select Add link. Then, insert the link to your note or external resource.

🔗 linking notes demo:

🌐 creating an external link demo:

📄 Markdown fragments

Markdown fragments are pieces of markdown that you can add to diagrams.

Right-click on the shape or element you want to bind a markdown fragment to, then select Add data....
The data name should follow the pattern md-number, for example: md-1, md-2.
Next, insert the markdown text into the property.

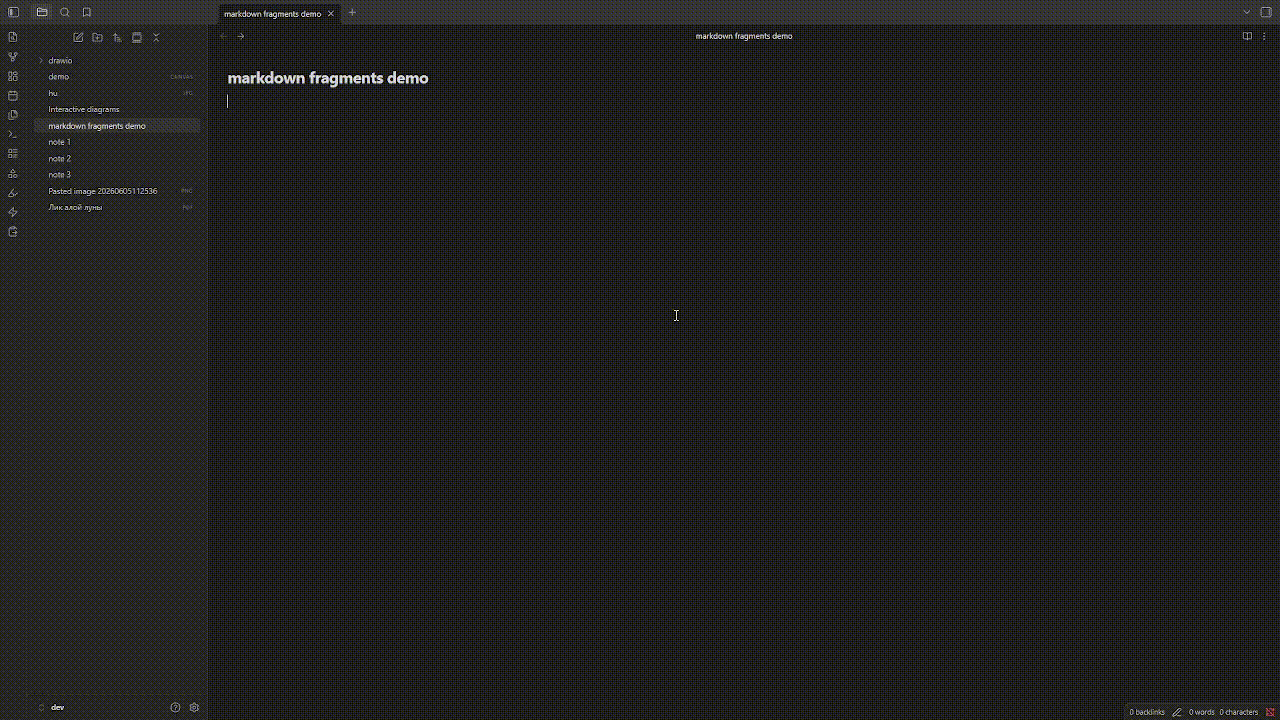

📜 Adding a markdown fragment demo:

You can literally put anything into a diagram that Obsidian is capable of rendering, including rendering features added by plugins.

for example:

• random note

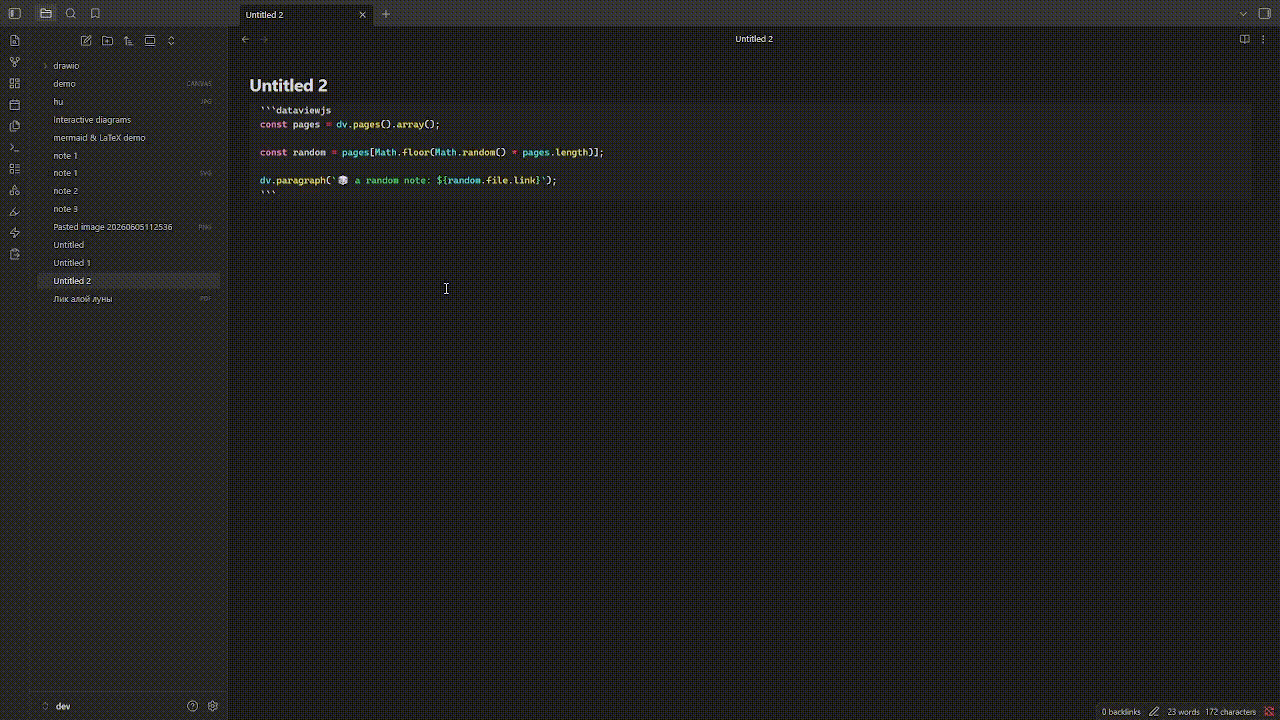

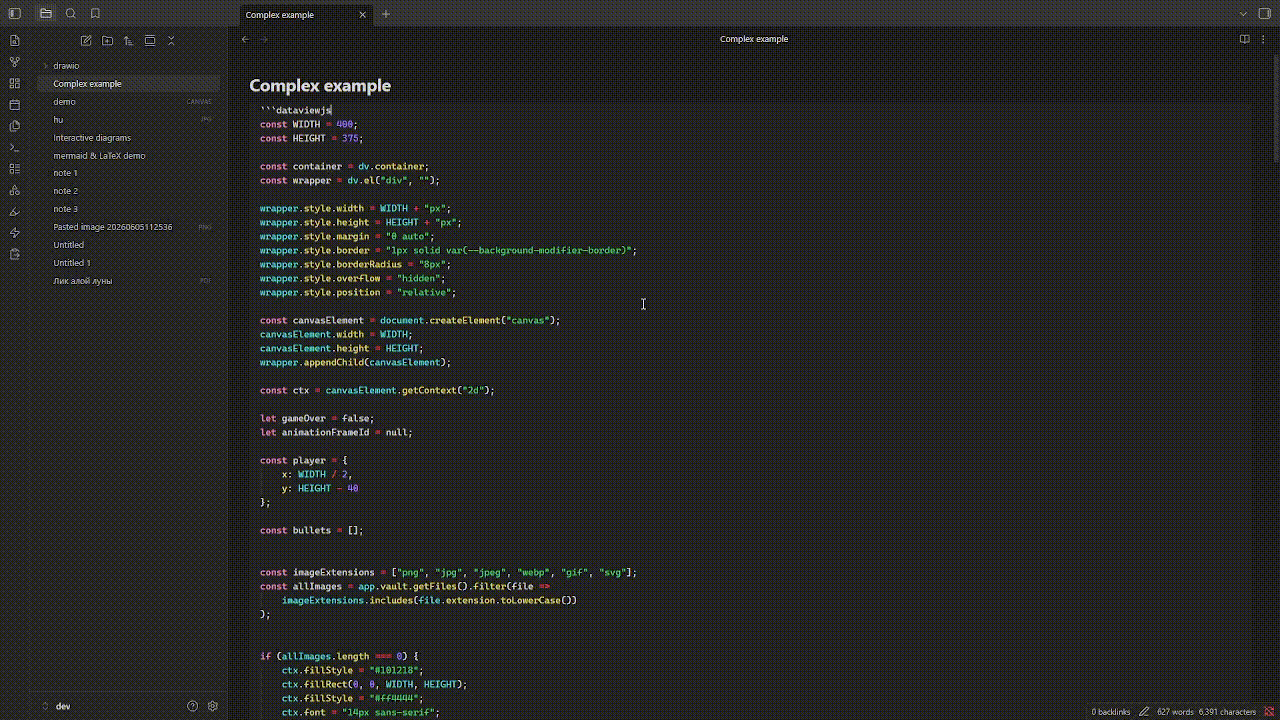

• complex dataviewjs scripts

📐 Mermaid & LaTeX

You can use mermaid, plumt and LaTeX (native support draw.io)

🖼️ Canvas support

Use the diagrams in canvas! Link your notes, add external/internal links and markdown-fragments!

🖱️ How to Use

Diagrams created by the plugin use the .drawio.svg extension. The file is still a regular SVG file; the .drawio part is added so the plugin can recognize that the SVG was created by it.

• diagram.drawio.svg — ✔️
• diagram.svg — ❌

If you remove the .drawio part, the plugin will no longer recognize the file as a draw.io diagram.

How to Open the Editor

You can open the editor using a Command Palette command:

Or you can assign and use a keyboard shortcut:

How to Edit Diagrams

There are three ways to edit a diagram:

1. Using the context menu — right-click the diagram link and select "Edit draw.io Diagram".

2. Using a keyboard shortcut — place the cursor on the diagram link in editing mode and press the assigned shortcut.

3. Using the modal editor shortcut — place the cursor on the diagram link in editing mode and press the modal editor shortcut.

❓ How It Works

This plugin launches a local web server that serves the Draw.io web app directly from your machine.

• When you open your Obsidian vault and enable the plugin, it spins up the server automatically.
• You can then create, edit, and save diagrams directly within Obsidian — completely offline.

📦 Installation Guide

there are 2 ways:

1. install from the plugin page or open this link obsidian://show-plugin?id=drawio in new browser tab

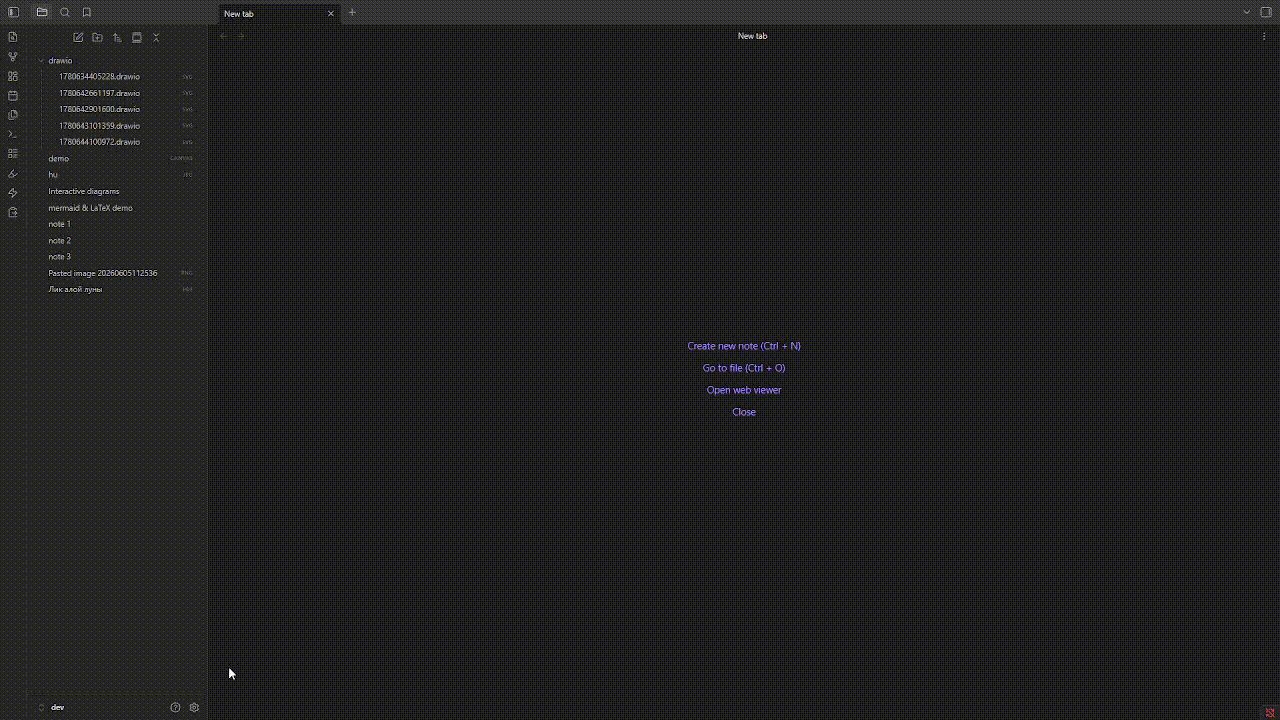

after downloading enable plugin, then go to settings, scroll down and click on the downlaod button draw.io client

2. manually install

3. after downloadingб

🙌 manually install

1. downlaod from Releases

   • main.js
   • manifest.json
   • style.css

2. create Folder in the .obsidian folder (where other plugin) and then move the file to the folder.

   .obsidian/
   └── plugins/
       └── draw-io/
           ├── manifest.json
           ├── main.js
           ├── styles.css


3. enable plugin, then go to settings, scroll down and click on the downlaod button draw.io client

License

This software is licensed under the GNU GPLv3.
