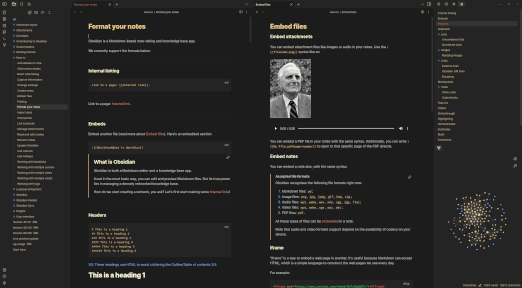

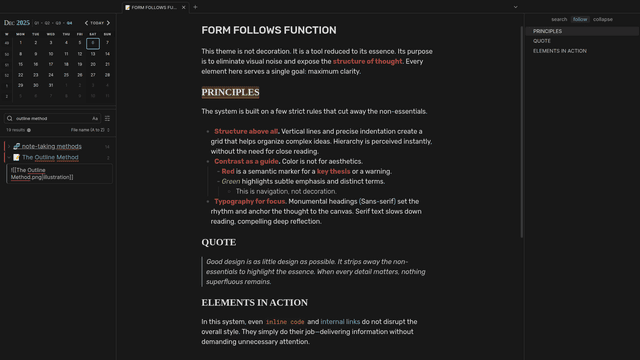

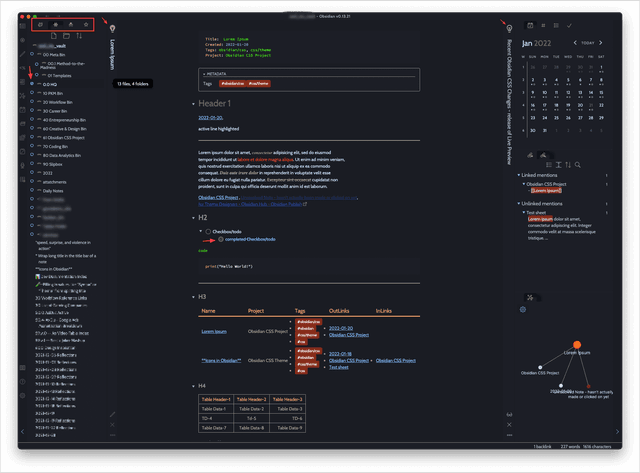

Screenshot of the FlatCap Obsidian theme
5
4
3
2
1
Code

Description

This theme supports Dark Mode

README file from

Github

Flatcap for Obsidian

Version Obsidian License

Flatcap for Obsidian brings the Flatcap visual system to your notes: matte graphite surfaces, one mineral-blue accent, IBM Plex for the interface and for reading, Cascadia for code.

It is a single theme.css with two independently tuned modes: Slate when Obsidian is dark and Daylight when it is light.

The interface organizes. Content takes the foreground. Color informs.

Install

From the community directory (recommended)

  1. Open Settings → Appearance.
  2. Under Themes, click Manage.
  3. Search for FlatCap and click Install and use.

The directory lists the theme as FlatCap, its original registered name. Updates arrive through Obsidian's theme updater.

Manually

  1. In your vault, create the folder .obsidian/themes/FlatCap/ (the folder name must match the name in manifest.json).
  2. Copy theme.css and manifest.json from the latest release (or from this repository) into it.
  3. Reload Obsidian, open Settings → Appearance → Themes and pick FlatCap.

Use it

The theme follows Settings → Appearance → Base color scheme: Dark uses Slate, Light uses Daylight, and Adapt to system follows your operating system.

Flatcap sets its own accent, so the Accent color picker has no effect while the theme is active. Fonts you choose under Settings → Appearance always win over the theme.

Fonts

Obsidian themes cannot load fonts from the network, so Flatcap names them as local families. Install these on every device you use for the intended look:

Without them the interface uses Segoe UI or your system font, and code uses ui-monospace or Consolas. Layout and colors are unaffected. See the Flatcap typography guide.

Accessibility

Text, links and syntax colors were measured in the running app (Obsidian 1.15.0, both modes) against the contracts of the Flatcap core: primary text at least 7:1, secondary and accent text at least 5:1, field boundaries and the focus ring at least 3:1. python3 scripts/build.py --check fails if theme.css is stale or a color does not come from src/theme.json. Increased contrast and forced colors are supported, and the current file, links and callouts never rely on color alone.

Limits that affect you:

  • Only the link focus ring was confirmed in the running app; the tree-row and tab focus rules are in the stylesheet but a full keyboard walk-through is pending.
  • Not covered: the graph's unresolved nodes (Obsidian dims them itself), screen readers, mobile layouts, Windows and macOS.

Measurements, motion and the rest are in the reference.

Compatibility

  • Obsidian 1.13.4 or newer (minAppVersion). Developed and checked on 1.15.0 (Linux). Versions between 1.12.7 and 1.13.4 have not been tested.
  • Plugin-drawn UI that hard-codes its own colors is outside the theme's reach.

Contributing

theme.css is generated from src/theme.json and src/rules.css; do not edit it by hand. Run python3 scripts/build.py --check before opening a pull request. Details are in docs/mapping.md.

License

MIT © Cheycron Blaine. See LICENSE.

Support

If Flatcap makes your workspace calmer, you can support its development.
