Table Dashboard

Create dynamic dashboard visualizations from your markdown tables. Progress bars, counters, streaks, and more — all powered by your existing data.

Features

📊 Multiple Visualizations: Progress bars, counters, percentages, streaks, line plots
📁 Flexible Sources: Current file, specific file, or entire folder
📋 Table-Powered: Extract and visualize data from markdown tables
🏷️ Table Tagging: Filter which tables to scan using HTML comments
🎯 Dynamic Goals: Extract goals from table columns
📅 Time Periods: Daily, weekly, monthly, yearly, or all-time filtering
🎨 Layout Options: Grid or compact-list for multi-widget dashboards
➕ Aggregation: Count, sum, average, min, max
🛠️ Helpful Errors: Clear guidance and examples when configuration is incorrect

Installation

Manual Installation

Download main.js, manifest.json, and styles.css from releases
Create folder: <vault>/.obsidian/plugins/table-dashboard/
Copy files into that folder
Reload Obsidian and enable the plugin

From Source

cd <vault>/.obsidian/plugins/
git clone <repo-url> table-dashboard
cd table-dashboard
npm install
npm run build

Quick Start

Simple Table Tracker

Visualize data from a table in the current file:

<!-- table-tag: weekly -->

| Activity | Done |
|----------|------|
| Exercise | ✓    |
| Reading  | ✓    |


```table-dashboard
type: progress_bar
source: current-file
tableTag: weekly
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
goal: 5
label: Weekly Exercise
```

Progress Bar Example

Multiple trackers in one block with compact layout:

````table-dashboard
layout: compact-list
source: current-file
tableTag: weekly

type: progress_bar
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
goal: 5
label: 🏋️ Exercise

---

type: counter
keyColumn: Activity
key: Reading
valueColumn: Done
value: "✓"
label: 📚 Reading

---

type: counter
keyColumn: Activity
key: Meditation
valueColumn: Done
value: "✓"
label: 🧘 Meditation

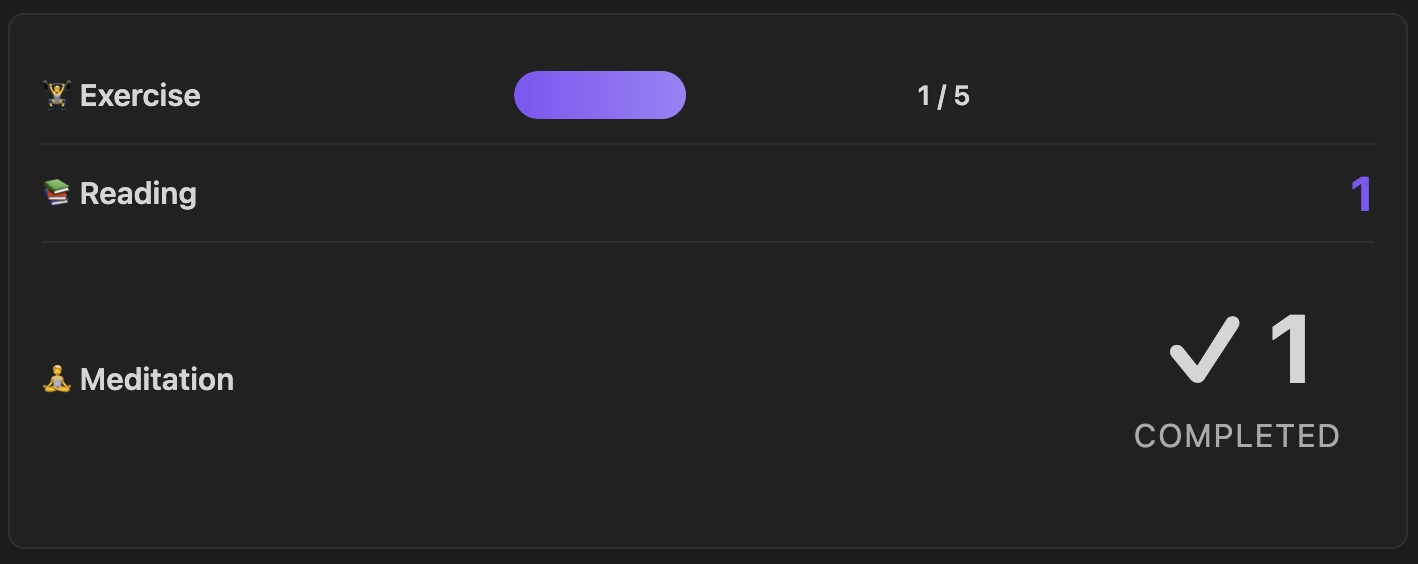

![Multi-Widget Dashboard Example](https://raw.githubusercontent.com/dskarbrevik/table-dashboard/HEAD/assets/dashboard-example.png)

## Source Types

### Current File

Scan tables in the file containing the tracker block:

type: progress_bar
source: current-file
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
label: Exercise Progress


### Specific File

Scan tables in a specific file (useful for dashboards):

type: progress_bar
source: file:Trackers/Monthly Habits.md
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
goal: 20
label: Monthly Exercise


### Folder (Pattern Mode)

Scan multiple files in a folder, counting text pattern occurrences:

type: streak
source: folder:Daily Notes
pattern: "- [x] Meditation"
period: monthly
label: Meditation Streak


**Note:** For folder mode, filenames should include dates in `YYYY-MM-DD` format for period filtering and streak calculation.

## Table Mode

### Basic Structure

Tables require a **key column** (to identify rows) and a **value column** (to extract data):

```markdown
| Activity | Done |
|----------|------|
| Exercise | ✓    |
| Reading  | ✓    |
```

type: counter
source: current-file
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
label: Exercise Count


### Table Tagging

Filter which tables to scan using HTML comment tags:

```markdown
<!-- table-tag: weekly -->

| Activity | Done |
|----------|------|
| Exercise | ✓    |

<!-- table-tag: monthly -->

| Activity | Done |
|----------|------|
| Project  | ✓    |
```

type: counter
source: current-file
tableTag: weekly
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
label: Weekly Exercise


### Value Types

**Text matching** - count cells containing specific text:
```yaml
value: "✓"          # Match checkmark
value: "done"       # Match "done"
value: "yes"        # Match "yes"
```

**Numeric** - extract and aggregate numbers:
```yaml
value: numeric
aggregate: sum      # Sum all numbers
```

**Any** - count any non-empty cell:
```yaml
value: any
```

### Numeric Values

Sum numeric values from a table:

```markdown
<!-- table-tag: reps -->

| Activity | Reps |
|----------|------|
| Pushups  | 25   |
| Situps   | 30   |
```

type: counter
source: current-file
tableTag: reps
keyColumn: Activity
key: Pushups
valueColumn: Reps
value: numeric
aggregate: sum
label: Total Pushups


### Dynamic Goals

Extract goals from a table column:

```markdown
<!-- table-tag: goals -->

| Activity | Current | Goal |
|----------|---------|------|
| Running  | 8       | 20   |
```

```table-dashboard
type: progress_bar
source: current-file
tableTag: goals
keyColumn: Activity
key: Running
valueColumn: Current
value: numeric
aggregate: sum
goalColumn: Goal
label: Running Progress
```

Dynamic Goal Example

Visualization Types

Type	Description	Best For
`progress_bar`	Visual bar showing progress toward goal	Goal tracking
`counter`	Simple count display	Totals
`percentage`	Percentage of goal completed	Completion rates
`streak`	Consecutive days (folder mode) or count	Habit streaks
`line_plot`	Trend chart over time (folder mode)	Trends

Layouts

Grid Layout (Default)

```table-dashboard
layout: grid
gridColumns: 2
source: current-file
tableTag: weekly

type: progress_bar
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
goal: 5
label: Exercise

---

type: counter
keyColumn: Activity
key: Reading
valueColumn: Done
value: "✓"
label: Reading
```

Compact List

```table-dashboard
layout: compact-list
source: current-file
tableTag: weekly

type: progress_bar
keyColumn: Activity
key: Exercise
valueColumn: Done
value: "✓"
goal: 5
label: Exercise

---

type: progress_bar
keyColumn: Activity
key: Reading
valueColumn: Done
value: "✓"
goal: 3
label: Reading
```

Configuration Reference

Required Parameters

Parameter	Description
`type`	Visualization: `progress_bar`, `counter`, `percentage`, `streak`, `line_plot`
`source`	Where to scan: `current-file`, `file:<path>`, or `folder:<path>`

Table Mode Parameters

Parameter	Required	Description
`keyColumn`	✅	Column containing row identifiers
`valueColumn`	✅	Column to read values from
`value`	✅	What to match: `numeric`, `any`, or exact text like `"✓"`
`key`	❌	Filter to rows containing this value in keyColumn
`tableTag`	❌	Filter to tables with this HTML comment tag
`goalColumn`	❌	Column to extract dynamic goal from
`aggregate`	❌	How to combine values: `count` (default), `sum`, `average`, `max`, `min`

Pattern Mode Parameters

Parameter	Required	Description
`pattern`	✅	Text to search for in file content
`useRegex`	❌	Enable regex matching (default: false)

Common Optional Parameters

Parameter	Description
`goal`	Static goal number
`label`	Display label
`period`	Time filter (folder mode): `daily`, `weekly`, `monthly`, `yearly`, `all-time`

Block-Level Parameters

Apply to entire dashboard (before first type:):

Parameter	Description
`layout`	`grid` (default) or `compact-list`
`gridColumns`	Number of columns for grid layout
`source`	Default source for all widgets
`tableTag`	Default table tag for all widgets

Examples

See examples/widget-screenshot-demo.md for ready-to-use templates.

Error Handling

When you misconfigure a widget, the plugin displays helpful error messages with guidance on how to fix the issue.

Example: Missing required fields

```table-dashboard
type: counter
source: current-file
keyColumn: Activity
```

This configuration is missing valueColumn and value, which are required for table mode. Instead of a cryptic error, you'll see:

Error Guidance Example

The error display includes:

⚠️ Clear description of what's wrong
💡 Step-by-step guidance on how to fix it
📋 Example code snippet showing correct syntax

Troubleshooting

Tracker shows 0:

Verify keyColumn matches your table header exactly (case-insensitive)
Check that key value exists in your table
For tableTag: ensure the HTML comment is above the table
Check value matches what's in your cells

Streak shows 0:

Streaks require folder mode with date-named files (YYYY-MM-DD)
For current-file mode, streak shows the count instead

Doesn't update:

Trackers update on file save
Reload Obsidian (Cmd+R / Ctrl+R) if stuck

Period filtering not working:

Only works with source: folder:...
Filenames must include dates in YYYY-MM-DD format

Development

npm install
npm run dev          # Watch mode
npm run build        # Production
npm test             # Run tests

License

MIT License - see LICENSE file for details.
