QuickTimeBox

QuickTimeBox — Obsidian Plugin

Plan your day directly inside your notes. Drop a quicktimebox code block anywhere in a note and get an interactive, editable timeline — no extra bloat needed.

---

What it does

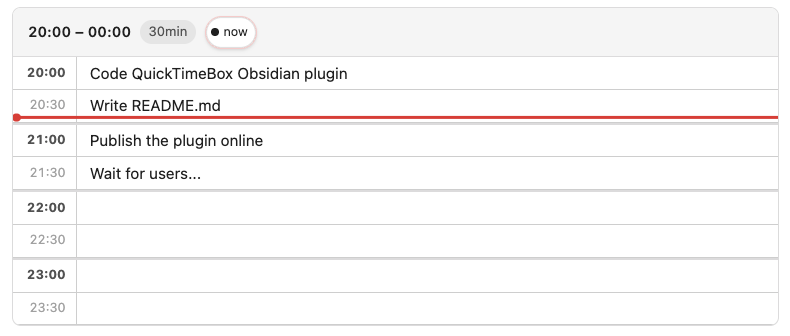

QuickTimeBox renders a structured time grid inside your Obsidian note. Each row is a time slot, you type your task directly into it. Changes are saved back to the note automatically.

---

Features

• Inline time grid — a clean table of time slots rendered right inside your note, from any start time to any end time
• Editable slots — click any slot and type; the note updates itself automatically after you finish
• Configurable granularity — slots of 15, 30, 60, or 120 minutes
• Live "now" indicator — a red line tracks the current time across the grid, updating every minute
• Now-line toggle — click the ● now button in the header to show or hide the current time marker
• Midnight-wrap support — ranges like 22:00–03:00 work correctly across midnight
• RTL support — set "rtl": true in the block or write in a right-to-left note; the layout mirrors automatically

---

Installation (from source)

1. Navigate to your vault's plugins folder:

   <your-vault>/.obsidian/plugins/


2. Clone the repository:

   git clone https://github.com/loudinthecloud/obsidian-quick-timebox


3. Install dependencies and build:

   cd obsidian-quick-timebox
   npm install
   npm run build


4. Reload Obsidian
5. Go to Settings → Community plugins, find QuickTimeBox, and enable it.

---

Usage

Use the QuickTimeBox: Insert timeboxing command on any note.

This will add a fenced code block with the language tag quicktimebox:

```quicktimebox
{
  "startTime": "20:00",
  "endTime": "00:00",
  "granularity": 30,
  "entries": {
    "20:00": "Code QuickTimeBox Obsidian plugin",
    "20:30": "Write README.md",
    "21:00": "Publish the plugin online",
    "21:30": "Wait for users..."
  },
  "rtl": false
}
```

Empty slots are blank and ready to type in. You don't need to list every time slot — only the ones you want pre-filled.
