Narrative Canvas is a node-based workspace for building complex interactive narratives. It unifies beats, dialogue, branching choices, conditions, variable updates, routing, cast and notes into a single connected structure that can be previewed and edited directly.

It is intended for structure planning, branch validation, pitch preparation, and narrative explanation. Keep prose drafting, text polishing, and dialogue writing in your preferred writing tool.

The interface supports both English and Chinese. The web app has an EN / 中文 floating language switch in the lower-right corner, and the Obsidian plugin has a Language setting that can follow Obsidian’s language.

Safety Notes

• Playbook.json is declarative. It defines Play titles, body text, choice options, condition syntax, and variable writes, and does not execute arbitrary JavaScript.
• Hide only hides Events Sheet columns; it does not delete data. Delete removes a schema field and also clears matching values from frame nodes in the Events Sheet.
• Deleted nodes are moved to an archive outside the runtime path for recovery safety, but you should still version important projects.
• Save: saves the current project. In the web app, it writes to browser localStorage. In Obsidian, it writes the active .ncanvas file in your vault.
• New: creates a fresh project. In the web app, this uses browser storage. In Obsidian, it creates a .ncanvas file according to plugin settings.
• Open: in the web app, imports a project file from disk; in Obsidian, opens a project file from the vault.
• Reload: discards unsaved changes and reloads the last saved source. In the web app, this reads browser storage; in Obsidian, it rereads the active .ncanvas file.
• Clear storage: web app only. Removes the browser-stored project and opens an empty project.

Web App

Open index.html directly, or visit:

https://ringeringeraja33.github.io/NarrativeCanvas/

When the Project File control shows Browser storage, the web app reads and writes localStorage (not browser HTTP cache). If you clear browser cache, the saved project file may still remain. Use Clear storage if you want a full local reset.

The lower-right floating EN / 中文 button switches language. The web app stores your last choice in localStorage; on first load it auto-selects based on document and browser locale.

Obsidian Plugin

For manual installation, copy the latest released plugin files into:

.obsidian/plugins/narrative-canvas/

Then reload Obsidian and enable Narrative Canvas under Community plugins.

Plugin settings:

• Language options: Follow Obsidian, 中文, and English.
• Sample project opens the bundled sample project.
• Project save folder and New project file name control where new .ncanvas files are created.
• Auto-save interval (seconds) sets how often Narrative Canvas writes the active project file. Empty means Obsidian’s own autosave behavior applies.
• Current project shows the path that the ribbon button will open next, with a clear action.

Main Workflow

1. Open or create a .ncanvas project.
2. Add nodes from the Node Library.
3. Connect one node’s output port to another node’s input port.
4. Use frames to group nodes. Frames are shown in Events Sheet by default; frame-only types can be hidden there via node type settings.
5. Select a node and edit it in the Inspector.
6. Use Story to inspect the reachable graph from Entry.
7. Click Play to preview the current narrative path.
8. Save or export when structure is ready. PNG export presets are 4096 x 4096, 6144 x 6144, 8192 x 8192, and 12000 x 12000, and filenames include the final rendered size. Very large canvases are auto-scaled to stay within browser raster limits.

Default Node Types

• The current default node types are: Entry, Content, Dialog, Choice, Condition, Set, Marker, Event, Story Sequence, Clue, Interview Note, Location Frame, Conversation Frame, Investigation Event, Archive Note, and Draft Frame.
• Condition and Set are kept as compatibility types and are hidden by default for migration support.
• Archive Note and Draft Frame are hidden by default; other advanced defaults are visible.

Default node types are editable templates. Entry is a system type and cannot be deleted. Other types can be renamed, hidden, restored, recolored, and extended with custom fields. Set and Condition are retained for legacy compatibility and are not recommended for new workflows.

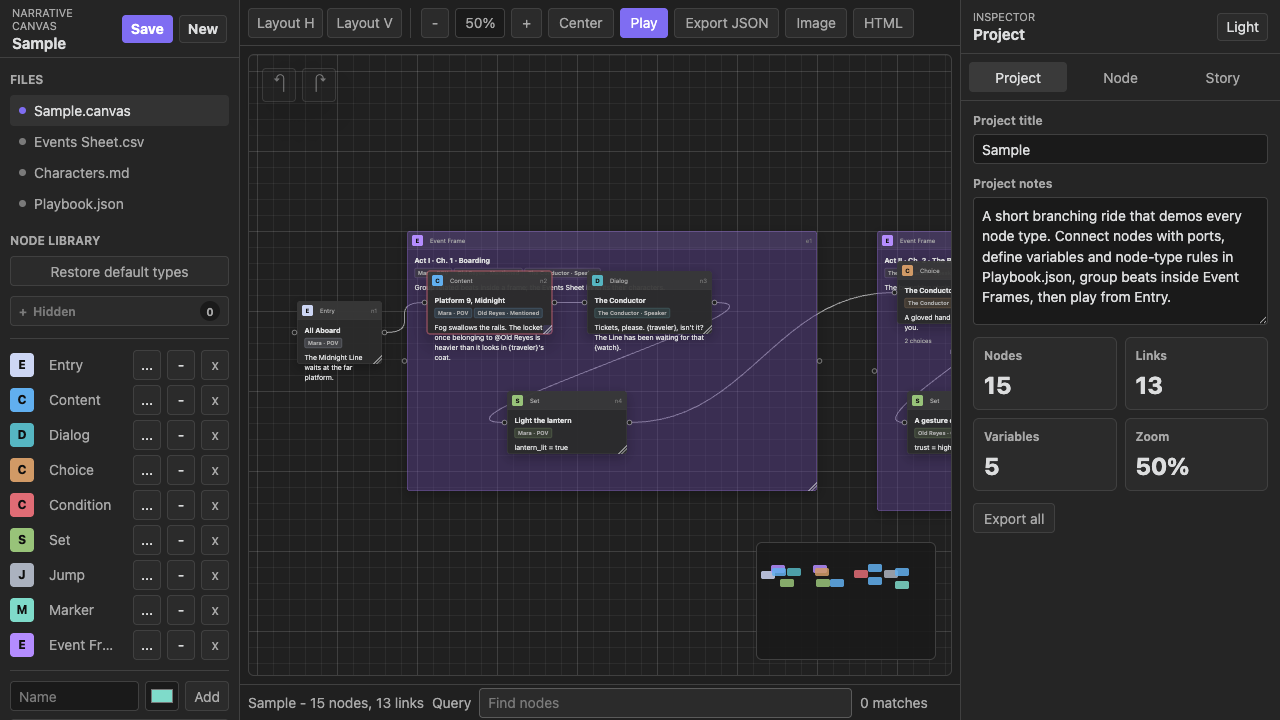

Canvas Operations

• Drag a node by its header to move it.
• Drag a frame by its header to move all nodes inside it.
• Use Shift/Cmd/Ctrl + click or rectangle select for multi-select, then drag a selected header to move the group.
• Click an output port then an input port to create a link.
• Double-click empty canvas space to cancel a pending connection.
• Right-click an existing link to reconnect or delete it.
• Canvas and Story can both collapse frames, with shared collapse state. When collapsed in Canvas, links to child nodes are routed through frame ports temporarily; underlying links are not rewritten.
• Frame and Event Frame are rendered below normal nodes by default. New frames are inserted above existing frame layers; frame depth can be adjusted via the node context menu.
• Every node has two ports: an input port (input) that receives links, and an output port (output) that starts links. Flow is always output → input, and input-to-output clicks are ignored. A Focus action selects and centers that node at 100% zoom.
• Ports can be repositioned by dragging along a node boundary. Port positions are saved on the node and persist across sessions.

Story

Story shows the reachable structure from Entry. Non-frame nodes appear only if reachable from Entry. Frame nodes appear when the frame itself is reachable, or when it contains reachable descendants.

Story membership is stored explicitly as frameId on each node. On opening older projects, membership is initially inferred from canvas geometry: ungrouped nodes are assigned to the smallest frame containing their center. After that, moving nodes, Story rows, or frames updates explicit membership instead of recomputing overlap continuously.

Story updates read from current canvas links and frame membership, then write back to the canvas. Dragging a Story row into a frame assigns its node to that frame and writes frameId. If the dragged row is a frame, descendants move together. The target frame may expand to include incoming nodes. Dragging a row to root level clears frameId and removes it from frames.

Frame collapse state is shared between Story and Canvas. Collapsing a frame hides descendants in both views; expanding restores child rows and node-to-node link rendering.

Manual Story order is stored in storyOrder. Re-sort by graph clears manual ordering and restores graph-based order.

Focus in Story selects the node, opens the Node Inspector, centers it on canvas, and zooms to 100%.

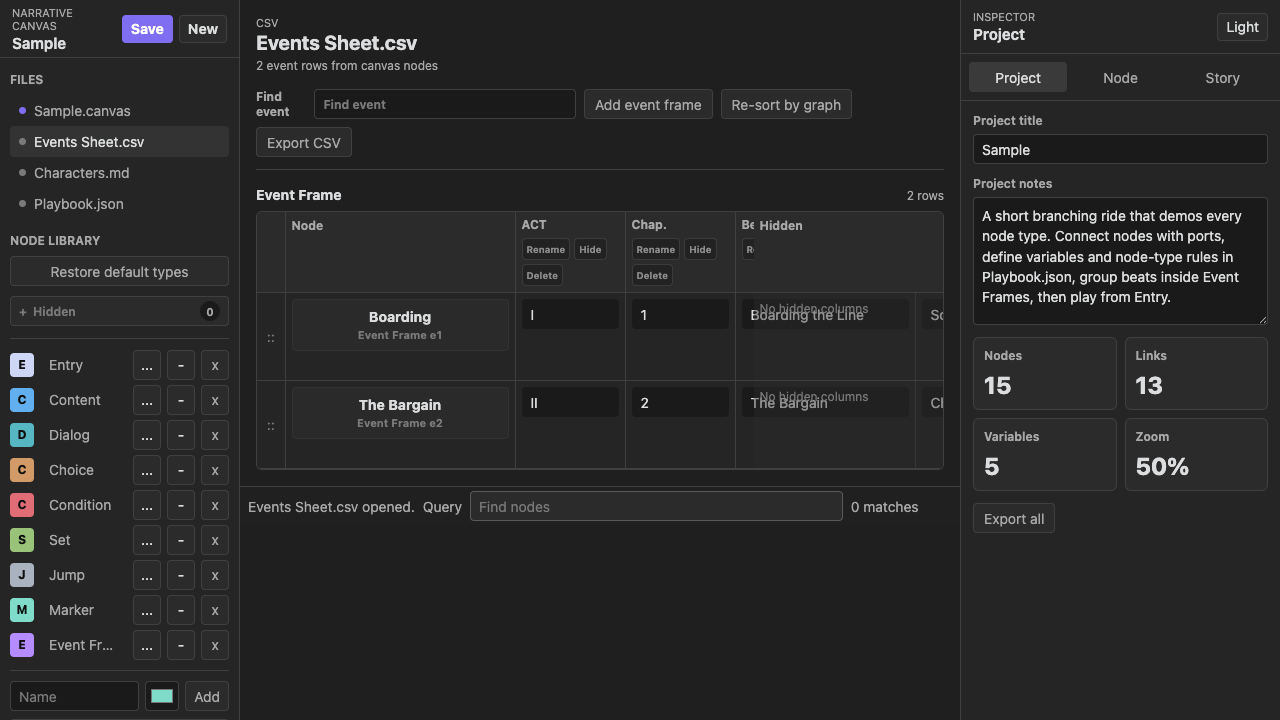

Events Sheet

Frame nodes appear in Events Sheet by default. Different frame types are placed in separate tables. Frame types used only for canvas grouping can enable Hide frame rows from Events Sheet in the node type editor.

You can rename, hide, or delete columns. Hidden columns are collected in each table’s rightmost Hidden column for recovery. Deleting schema fields removes them from frame-type definitions and clears matching values from existing frame nodes.

Re-sort by graph clears manual row order and sorts rows by current canvas graph position.

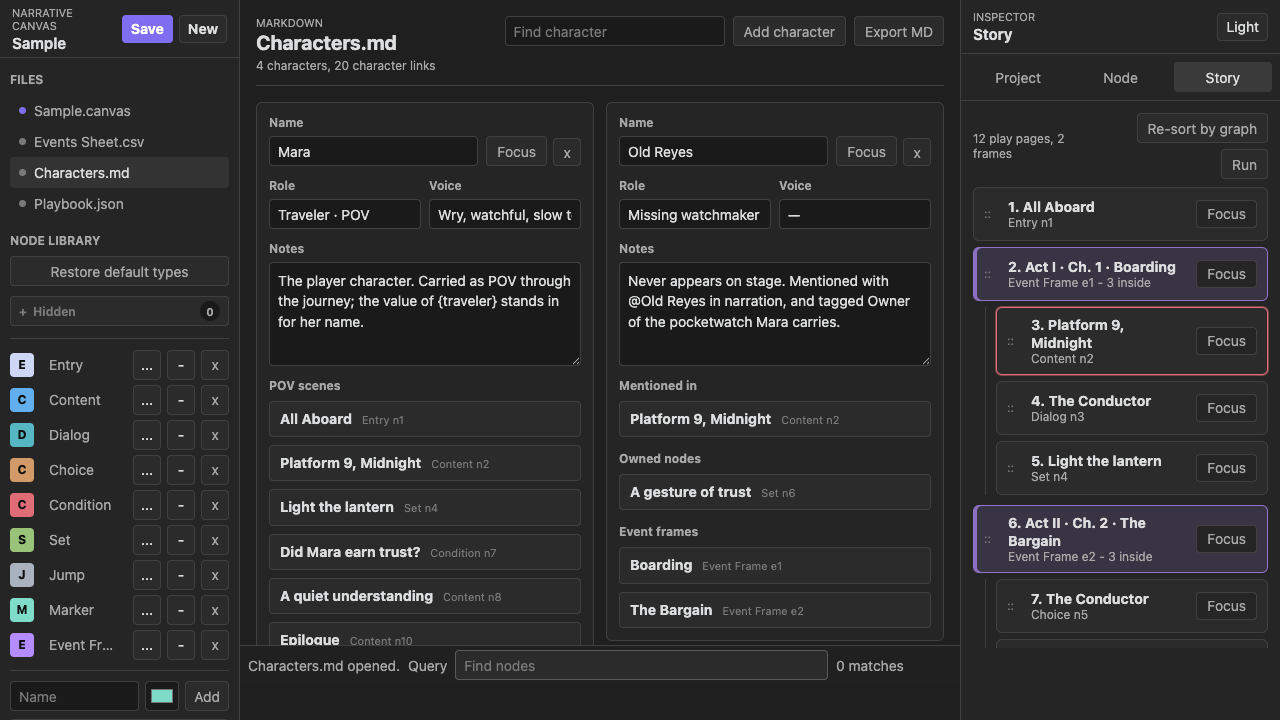

Characters

Characters can be linked to nodes using Cast chips:

• POV
• Speaker
• Present
• Mentioned
• Target
• Owner

You can also create references in node text with @Character Name. Character pages show backlinks in story order, including speaker scenes, present scenes, mentions, ownership, and frame scenes.

Use Character focus to highlight related nodes.

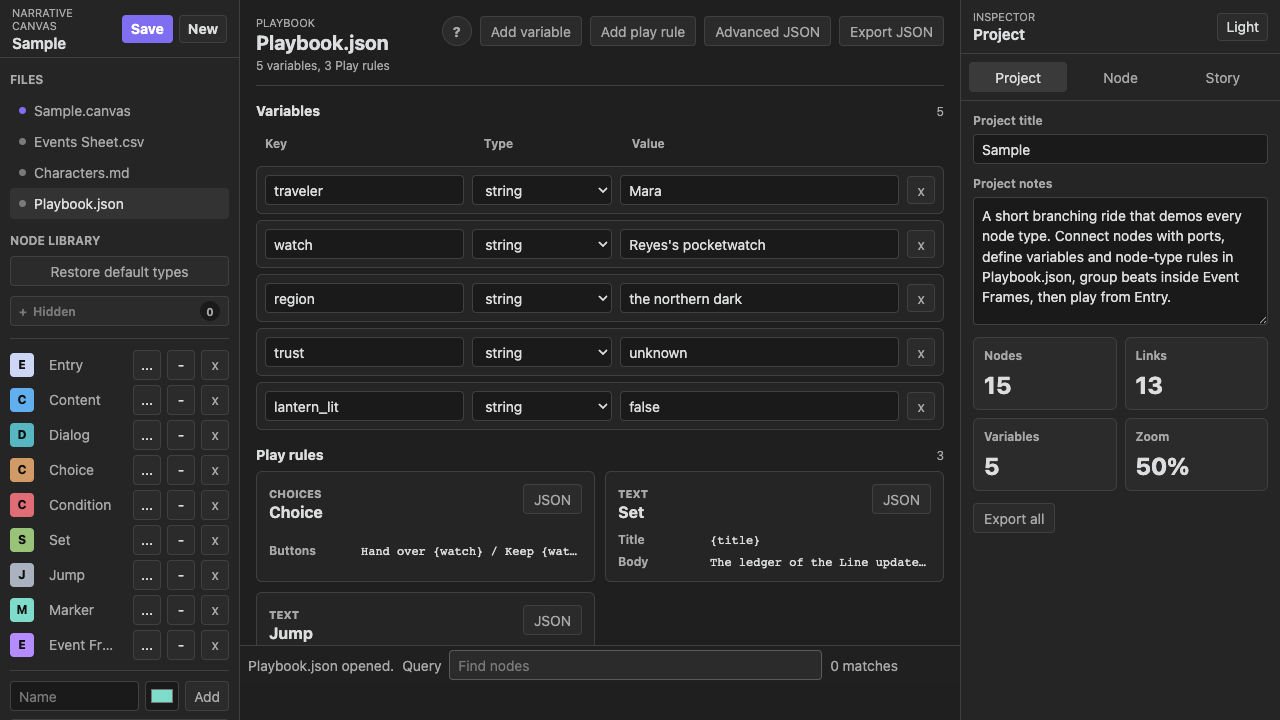

Playbook

Think of Playbook.json in this way:

Node Library defines the fields each node type has. Node Inspector fills those fields. Playbook defines how Play preview reads and uses them.

Use Playbook to configure Play runtime state and rules. Keep manuscript writing in your writing tool and runtime logic in your engine project.

Playbook has six tabs:

• Variable Definitions lists project variables with types and current values. New variables auto-focus.
• Variable Actions edits state changes outside node rows, including timing, target, key, operation, and value. The value control is constrained by variable type.
• Script Builder batch-edits non-frame node Requirements, effects, and Routing. It uses the same State Logic data as Inspector and provides structured row entry for common patterns.
• Choice Conditions batch-edits choice availability rules and displays each option’s on-choose Effects. It shares option data with Inspector and keeps legacy condition rows for migration consistency.
• Play rules controls preview behavior only: Start Node, End Condition, and Debug Mode. Visit Tracking is under Debug Mode, and its visit list is discarded when Play preview ends.
• Validation checks state reads/writes, text interpolation, and export risks. Each entry points to where a key is read, written, or interpolated, with links back to canvas or Advanced JSON.

Runtime state keys are flat names by default. For values shared across requirements, effects, text templates, and portable exports, prefer underscore keys like inventory_coins, flag_watch_missing, and clue_glass_key. Dot keys from older projects are still loadable: resolution checks flat keys first, then falls back to object paths like inventory.coins. Portable text exports flatten object paths and include key mappings in the export report.

Condition fields use a safe JavaScript expression subset: comparisons, &&, ||, !, parentheses, quoted strings, numbers, booleans, dotted state paths, and .includes(...). Arbitrary JavaScript is not executed. Expressions outside this subset stay in Runtime JSON with an export warning; Yarn, Ink, and Twee receive a parseable false guard for that branch.

Projects saved in older versions continue to load through normalization: legacy choices[], choiceIndex links, missing actions, old custom node types, Events Sheet columns, Frame / Jump data, legacy ports, and dotted state keys are preserved or migrated. Legacy choices[] receive stable IDs (opt_1, opt_2, ...), so older branches keep order and sidecar output remains aligned after save.

Portable Exports (Beta)

The top toolbar supports these export types:

• Text Source Mode: after Import MD, this mode flag is written automatically. Project file control remains unified across project JSON, Story MD, sidecars, and engine exports.
• Runtime JSON: a stripped runtime IR for external tools or custom loaders. It removes canvas layout fields while keeping nodes, links, state variables, cast, conditions, effects, play rules, and report output.
• Story MD: exports a readable story.md draft of the runtime graph including node IDs (in comments), body, conditions, choices, effects, and goto targets. It is used for review and text-first exploration. Import MD reads this format back into a canvas project and intentionally replaces the current project via explicit action.
• Layout JSON exports a schema-sidecar keyed by node/link IDs for canvas-only layout data. Import Layout restores positions, frames, ports, collapsed states, and link metadata after Story MD import.
• State Schema: exports <slug>-state.schema.json for Story MD workflows, including variables, portable exportKey names, initial values, read/write/template references, validation status, and export warning blocks. Import State restores variables from this sidecar after Import MD.
• Export Profile: exports <slug>-export.profile.json, listing portable files, target consumers, schema pointers, node/variable mapping, and export warning blocks for downstream handoff.
• Yarn: exports .yarn nodes, shortcut options, variable declarations, <<jump>>, and <<set>> commands.
• Ink: exports .ink knots, VAR declarations, sticky + choices, diverts, and ~ assignments.
• Twee: exports Twee 3 .twee passages for Twine / Tweego, including SugarCube StoryData, StoryInit, conditional links, <<goto>>, and <<set>>.

All exporters share one mapping of node slugs and variable names. Complex variables, Playbook actions, and effect operations that do not map cleanly to target formats are retained in Runtime JSON and exported as comments with warnings. After Story MD, Runtime JSON, Yarn, Ink, Twee, or Export All, an export report dialog appears with warnings and renamed variable mappings. Runtime JSON retains the full report for downstream tools.
