Graph Presets

Graph Presets

Save and switch named Graph View presets in Obsidian — filters, color groups, and node positions. Presets are stored in data.json, syncable via git across devices.

Features

• 💾 Save current graph state as a named preset (filters, color groups, display settings, node positions)
• 🔄 Switch presets from a floating panel in the Graph View
• ➕ Save As New creates a copy without overwriting
• ✏️ Rename & delete presets from settings
• 🏷️ Tab titles show the active preset name (Graph: My Preset)
• 🔀 Multi Graph View — each tab tracks its own preset independently
• 📦 Git-friendly — presets live in data.json, commit and sync across machines

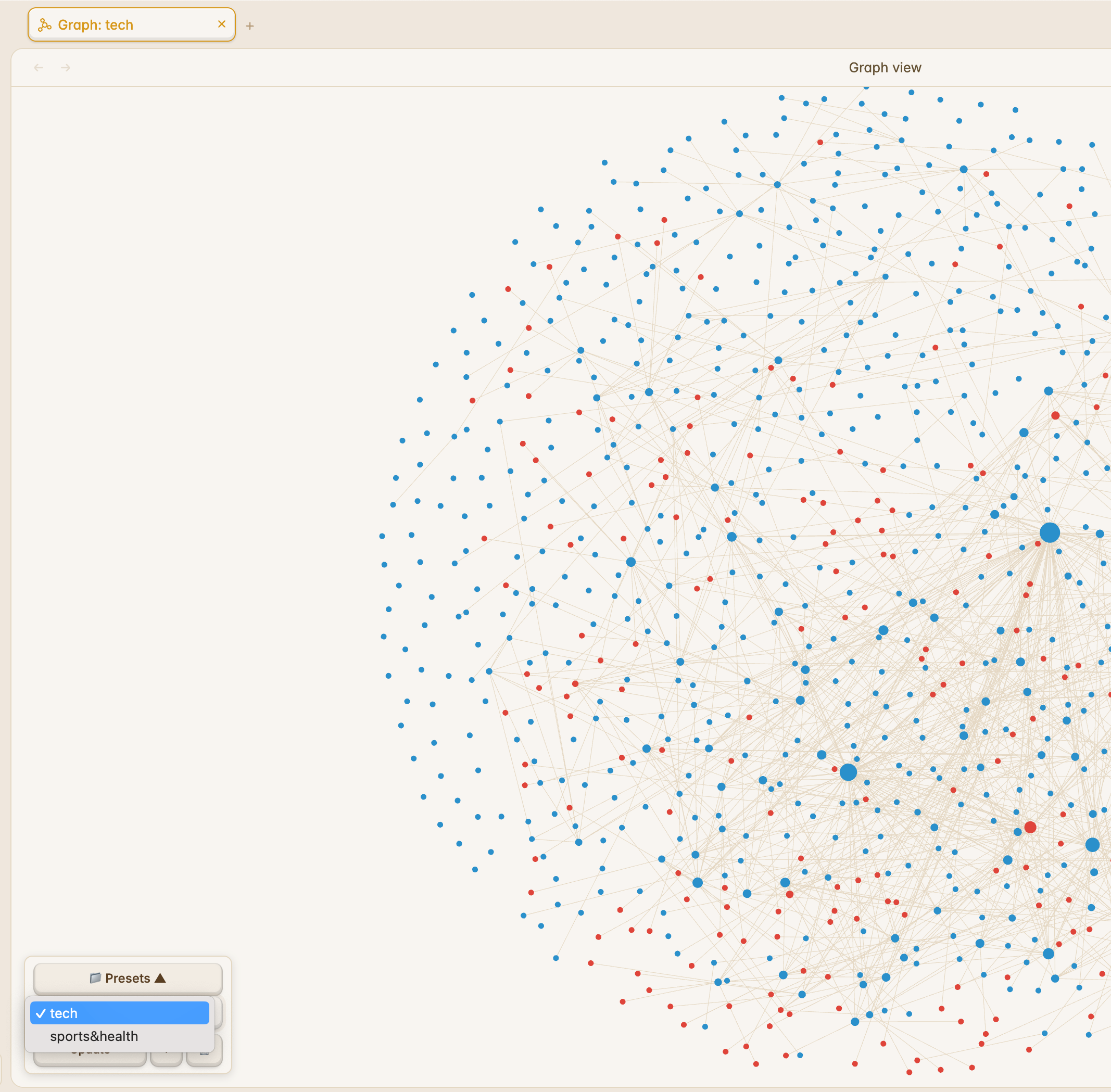

Screenshot

Installation

Community Plugins

Once accepted to the Obsidian Community Plugin list, install via Settings → Community Plugins → Browse → "Graph Presets".

Manual (BRAT)

1. Install BRAT
2. Add Sphinxes0o0/graph-presets as a beta plugin
3. Enable "Graph Presets" in Community Plugins

Manual (direct)

cd YOUR_VAULT/.obsidian/plugins/
git clone https://github.com/Sphinxes0o0/graph-presets.git graph-presets
cd graph-presets && npm install && npm run build

Then enable "Graph Presets" in Settings → Community Plugins.

Usage

1. Open the Graph View (Cmd+G / Ctrl+G)
2. Set up your filters, color groups, and display options
3. Click 📁 Presets in the bottom-left corner
4. Click Save → enter a name → press Enter

Settings Tab

Settings → Community Plugins → Graph Presets → ⚙️

• Rename or delete presets
• The Graph View floating panel is where you activate presets

How It Works

Save → dataEngine.getOptions() → { search, colorGroups, ... } → data.json
Load → dataEngine.setOptions(preset.options) + worker.postMessage(nodePositions)

Contributing

git clone https://github.com/Sphinxes0o0/graph-presets.git
cd graph-presets && npm install && npm run dev

• npm run dev — watch mode, auto-rebuild on changes
• npm run build — production build

License

MIT
