Description

Category: Note Enhancements
#chord#sheets#lyrics

The Chord Sheets plugin for Obsidian brings UltimateGuitar-like functionality to your vault, allowing you to render and work with chord sheets seamlessly. With features like automatic chord symbol highlighting, customizable chord diagrams, and transpose functions, this plugin is perfect for musicians looking to organize their songs and practice more effectively. The plugin also includes support for multiple instruments, including guitar and ukulele, making it a great tool for music enthusiasts of all levels.

Reviews

No reviews yet.

Stats

166
stars
22,984
downloads
27
forks
932
days
6
days
6
days
5
total PRs
0
open PRs
2
closed PRs
3
merged PRs
45
total issues
15
open issues
30
closed issues
46
commits

Latest Version

1.9.1
7 days ago

Changelog

Various fixes to make Obsidian’s review bot happy

See all version on GitHub

README file from

Github

Obsidian Chord Sheets

Render and work with chord sheets (chords over lyrics or inline chords in brackets) in your vault. This plugin brings UltimateGuitar-like functionality into Obsidian, featuring chord diagrams (guitar, ukulele, mandolin, piano), transposition, and autoscroll. Works seamlessly in edit / live preview and reading mode. It integrates with your theme colors and is customizable to your needs.

Features

✨ Highlight Chord Symbols

Detects and highlights chord symbols in fenced code blocks marked as ```chords.



Note: When copy and pasting a chord sheet from a website, paste as plain text to preserve formatting (per default ⌘ + ⇧ + V on Mac and Ctrl + ⇧ + V on Windows/Linux or right click ➔ Paste as plain text).

The plugin auto-detects chord and lyric lines. If it fails, add %c at the end of chord lines or %t for lyrics (an idea 'borrowed' from the Chord Lyrics plugin):


🎼 Chord Diagrams

Show chord diagrams for fretted instruments or piano, on hover or on top of a chord block. Provides alternative fingerings / voicings for each chord. Diagrams are rendered locally, no API calls to an external service are required.

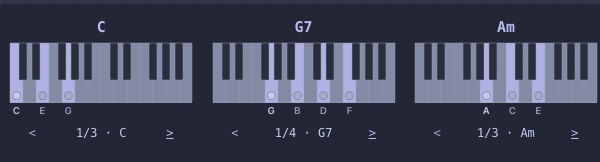

🎹 Piano voicings

In edit / live preview mode, clicking the name of the voicing you picked writes it into the sheet as a slash chord, either for every occurrence of the chord in the block (from the chord overview) or just for the one you hovered (from the popup).


🎸 Choose Your Instrument

Includes chord diagrams for guitar, ukulele, mandolin, and piano. The instrument can be set globally or specified per chord block.


📝 Seamless Editing

Allows seamless editing of chords and lyrics in live preview / edit mode while keeping chord symbol highlighting and chord diagram rendering active, without needing to switch the fenced block to source view. This is achieved by implementing a CodeMirror editor extension for rendering instead of a code block post processor.

🔄 Transpose Songs

Transpose songs up and down with a click or an editor command. When a chord symbol gets longer or shorter (C → C#), the spaces after it are adjusted so that the following chords stay above their syllables.


📜 Autoscroll

Scroll down as you play with configurable speed.


Save your preferred scroll speed for a note by adding the autoscroll-speed frontmatter property. Set it manually or use the Save current autoscroll speed command to add it with the last used speed. The property will update automatically as you adjust the speed.

🌈 Uses Theme Colors

Minimal dark Minimal light AnuPpuccin light
minimal-dark.png minimal-bright.png anuppuccin-bright.png
piano-minimal-dark.png piano-minimal-bright.png piano-anuppuccin-bright.png

To customize colors and styles, use the Style Settings plugin.

🔨 Custom Chord Shapes

Define your own chord shapes using brackets. On fretted instruments, use fret numbers (or x for muted) in brackets: Bbadd13[x13333], Dm6[4|x2x132] (with capo), or C°[x34_242_] (with barre). For frets higher up the neck, separate with spaces or commas: C*[0 10 10 12 8 8], C*[0,10,10,12,8,8].

On piano, use note names (Cmaj7[E G B D]) or chord degrees (C7[3 b7 9]) to define a voicing. A bar splits the left and the right hand: C7[1 5 | 3 b7 9]


Custom fretted chord shapes and symbols are never transposed. For piano, note names are transposed along with the chord symbol.

⌨️ Editor Commands

Access all features using dedicated editor commands with support for keyboard shortcuts.


Note: The keyboard shortcuts in the screenshot are just for illustration. Shortcuts are empty by default and need to be set in Obsidian settings after installing the plugin.

📱 Mobile Support

Works well on mobile. Bring up chord diagram popups by tapping on the chord symbols. Can be a bit fiddly in edit / live preview mode because tapping on a chord will position the caret there which brings up the keyboard. Prefer reading mode on mobile.

⚙️ Configurability

  • Turn chord or section header highlighting on or off
  • Hide certain UI elements (instrument and transpose controls, chord diagrams, autoscroll button) for edit / live preview mode, reading mode, or both.
  • Adjust chord diagram size and the default instrument, show or hide the note names in piano diagrams
  • Customize the block "language" specifier (e.g., start a chord block with ```tab instead of ```chords) and the line markers (e.g. [c] instead of %c)
  • Integrates with Style Settings for fine-grained customization of colors and styles

Development

  • Clone this repo.
  • npm i to install dependencies
  • npm run dev to start compilation in watch mode.

This repo contains run / debug configurations for JetBrains IDEs (such as WebStorm). You will need to adapt the Run Obsidian configuration to the path of your Obsidian installation and set the working directory to the path where you cloned this repo.

To start a development and debug session with support for breakpoints etc.:

  1. Run the Run Obsidian configuration in debug mode. This will start Obsidian with the --remote-debugging-port=9222 parameter which enables Chrome remote debugging on port 9222.
  2. Run the Debug configuration which attaches the IDE to Obsidian.
  3. Run the dev configuration in debug mode which starts the development server.

Manually installing the plugin

  • Copy over main.js, styles.css, manifest.json to your vault VaultFolder/.obsidian/plugins/chord-sheets/ and enable the plugin in Obsidian's settings.

Credits

This plugin uses:

  • Vexchords for rendering chord diagrams.
  • tonal for parsing chord symbols, chord normalization, and transposition.
  • chords-db for ukulele and guitar fingerings.

Inspiration / Alternatives

  • Scales and Chords
    • Highlights chord symbols over lyrics in fenced code blocks
    • Shows chord diagrams on click that are fetched through an external web service
  • Obsidian Chord Lyrics
    • Highlights chord symbols over lyrics in fenced code blocks
    • Maintains chord / lyrics relationships when line wrapping, good for reading chord sheets on your phone
  • Obsidian Markdown Chords
    • Renders chords in the ChordPro-inspired markdown-it-chords (bracketed chords in lyrics) format in fenced code blocks
    • Optional rendering of chord diagrams above lyrics
    • Fingering needs to be specified explicitly as part of the chord symbol
  • Obsidian jTab
    • Renders tabs and chord diagrams in jTab format in fenced code blocks
