Checkboxes: Sort Done to Bottom

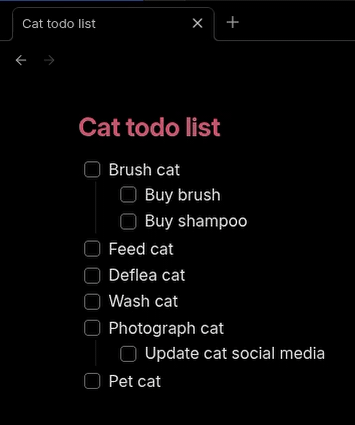

A demo of the plugin working

An Obsidian plugin that keeps your checkboxes sorted. When you check off an item, it sinks to the bottom of the list automatically.

How it works

The moment you tick a checkbox, the plugin reorders the surrounding list block: unchecked items stay at the top, checked items move to the bottom. A subtle divider line appears between the two groups so you can see at a glance what's done and what isn't.

  • Works in Reading or Editor mode.
  • Only the contiguous checkbox block containing the changed item is reordered; other lists in the note are not affected.
  • Child (indented) items stay attached to their parent item.
  • The plugin sorts on user edit.

Installation

From the Obsidian community plugin browser (recommended)

  1. Open Settings → Community plugins
  2. Turn off Safe mode if prompted
  3. Click Browse and search for Checkboxes: Sort done to bottom
  4. Install and enable

Development workflow

Prerequisites

  • Node.js ≥ 16
  • npm

Setup

npm install

Development (watch mode)

Run the build in watch mode — it recompiles main.ts to main.js on every save:

npm run dev

For the fastest feedback loop, clone the repo directly into your vault's plugin folder:

<vault>/.obsidian/plugins/checkbox-auto-sort/

After each recompile, open the Command palette in Obsidian and run Reload app without saving (or toggle the plugin off and on in Settings → Community plugins) to pick up the latest build.

Production build

npm run build

This type-checks first (tsc -noEmit) then bundles with esbuild. The output is main.js.

Linting

npx eslint main.ts

How the code works

main.ts registers two CodeMirror 6 extensions:

Extension Role
makeSorterPlugin() ViewPlugin — watches for document changes, identifies the affected checkbox block, and dispatches a transaction that sorts checked items to the end of the block
makeDividerField() StateField — scans the document on every relevant change and adds a checkbox-divider-line CSS decoration to the first checked item in each sorted block

A SORTED_EFFECT state effect acts as a re-entry guard so the sorter ignores transactions it produced itself, preventing infinite update loops.

styles.css draws the divider using a top border on the decorated line, themed with Obsidian's --background-modifier-border CSS variable so it adapts to light and dark themes automatically.
