A local-first Obsidian 3D viewer focused on knowledge workflows. It renders common 3D assets in local WebGL viewports, lets you annotate key parts, and turns models into linked notes. Single-model previews (GLB, GLTF, STL, PLY, OBJ) use a configurable Three.js rendering path across reading surfaces and direct file view; the file-view workbench can opt into an experimental Three.js GLB/GLTF path with Babylon.js fallback, while 3dgrid and SPLAT stay on the Babylon.js capability path that fits them best.

English | 简体中文

---

Table of Contents

• Features
• Platform Support Matrix
• Quick Start
• Installation
• Format Support
• Usage
• Settings
• External Dependencies
• Security & Privacy
• Funding
• Technical Details
• Known Limitations
• Deployment
• License

---

Features

• Direct mesh preview for GLB/GLTF, STL, OBJ, and PLY (all routed through Three.js by default)
• Optional conversion for CAD, FBX, 3MF, and DAE assets
• Hybrid preview routing: single-model previews use Three.js for GLB/GLTF/STL/PLY/OBJ with a Babylon.js compatibility fallback in settings
• Inline and file previews: Live Preview, code blocks, and direct file view
• Grid system: render multiple models in a single viewport with presets
• 3D annotations: click-to-pin bookmarks with labels, colors, and depth-aware occlusion
• Knowledge notes: generate structured Markdown from loaded models and auto-register captured part candidates for cross-model reuse checks
• Snapshots: copy, save, or download rendered previews as PNG
• i18n: English and Simplified Chinese with auto-detect system locale
• Desktop support: Obsidian Desktop on Windows, macOS, and Linux
• Mobile support: iOS, iPadOS, and Android support direct formats, inline previews, and direct file view

---

Platform Support Matrix

---

Quick Start

1. Build the plugin:

npm install
npm run build

2. Open your local Obsidian vault folder on your computer.

3. Create this folder inside the vault:

<your-vault>/.obsidian/plugins/ai-model-workbench/

4. Copy main.js, manifest.json, and styles.css into that folder.

5. In Obsidian, open Settings > Community Plugins and enable AI Model Workbench.

6. Put a supported model file into the same vault, for example model.glb.

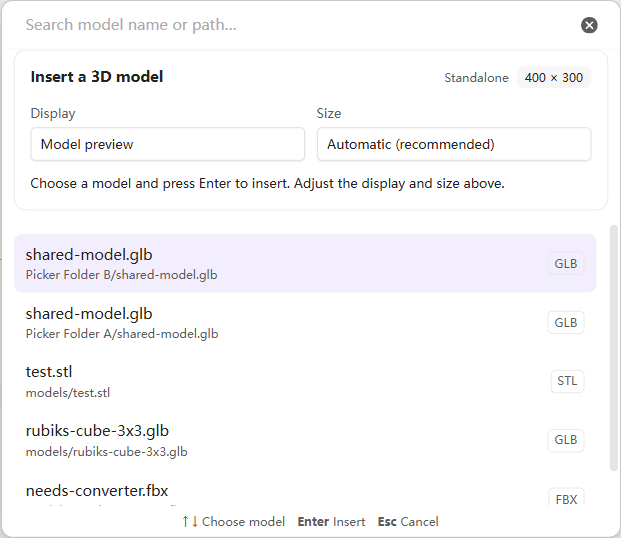

7. In any note inside that vault, embed it like this:

![[model.glb]]
![[model.glb|400x300]]

---

Installation

Use Quick Start if you only want the fastest setup.

Requirements

• Obsidian 1.5.0 or later
• Obsidian Desktop on Windows, macOS, or Linux for local tool-based conversion
• A local Obsidian vault folder on your computer
• This plugin folder inside the vault:

<vault>/.obsidian/plugins/ai-model-workbench/

All install methods place the same three files in that folder:

Direct rendering works on desktop and mobile. Local converter tools for CAD, FBX, 3MF, and DAE require desktop OS access.

Option A: Build from Source

1. Clone the repository and build the plugin:

git clone https://github.com/flash555588/ai-model-workbench.git
cd ai-model-workbench
npm install
npm run build

2. Install the built files into a vault:

# Install to the bundled test vault
npm run install:vault

# Or install to your own vault
npm run install:vault -- --vault "C:\path\to\your-vault"

The installer copies main.js, manifest.json, and styles.css into .obsidian/plugins/ai-model-workbench/ and enables ai-model-workbench in community-plugins.json.

3. If Obsidian is already open, reload the app or disable and re-enable AI Model Workbench in Settings > Community Plugins.

Manual fallback: create <vault>/.obsidian/plugins/ai-model-workbench/, copy main.js, manifest.json, and styles.css into that folder, then enable AI Model Workbench in Obsidian.

Option B: Download a Release

1. Download main.js, manifest.json, and styles.css from Releases.
2. Create <vault>/.obsidian/plugins/ai-model-workbench/ if it does not exist.
3. Put the three files in that folder.
4. In Obsidian, enable AI Model Workbench in Settings > Community Plugins.

Option C: Symlink for Development

1. Make sure <vault>/.obsidian/plugins/ already exists.
2. Create a symlink named ai-model-workbench that points to this repository.

Windows (PowerShell):

New-Item -ItemType SymbolicLink `
  -Path "C:\path\to\your-vault\.obsidian\plugins\ai-model-workbench" `
  -Target "C:\path\to\ai-model-workbench"

macOS / Linux:

ln -s /path/to/ai-model-workbench \
  /path/to/your-vault/.obsidian/plugins/ai-model-workbench

3. In this repository, run npm install once if needed.
4. Run npm run dev while developing.
5. In Obsidian, enable AI Model Workbench in Settings > Community Plugins.

After Install

1. Put a supported model file into the same vault, for example model.glb.
2. In any note inside that vault, embed it like this:

![[model.glb]]
![[model.glb|400x300]]

---

Security & Privacy

AI Model Workbench does not collect telemetry, phone home, or run background network sync. Model previews are loaded from files already present in the Obsidian vault, and OBJ material/texture references are resolved from the vault instead of being fetched from the network.

The bundled Babylon.js runtime contains generic loader utilities that are capable of loading URLs for web applications. This plugin passes vault file bytes to Babylon as data URLs, overrides OBJ MTL loading to avoid remote fetches, and installs a runtime guard that rejects explicit http(s) / ws(s) asset or script URLs while disabling Babylon retry hooks for those requests. Optional converter diagnostics and conversions run only after a user action and execute local tools on desktop platforms.

Knowledge-note generation is local-only by default. If you configure an optional remote draft service, the plugin sends only the selected evidence payload to your configured POST /draft-note endpoint. The current client refuses raw model upload, and geometry summaries or preview image references must be enabled explicitly before they are included.

Release assets are limited to the three files Obsidian downloads: main.js, manifest.json, and styles.css. GitHub Actions builds these files from source and publishes artifact attestations for provenance verification.

---

Funding

AI Model Workbench does not include donation prompts, payment flows, or cryptocurrency wallet addresses in the plugin bundle.

---

Format Support

Direct Rendering (No External Tools)

SPLAT preview is temporarily disabled in packaged builds while its loader is replaced with a local-only implementation.

SPLAT Status and Roadmap

• Current status: SPLAT preview is temporarily disabled in community release builds. GLB, GLTF, STL, OBJ, PLY, and the current local conversion routes are unaffected.
• Why: the current Babylon SPLAT/SPZ loader still carries dynamic script and remote module fallback paths. The plugin runtime already rejects remote requests, but the packaged release also aims to remove those paths from the shipped bundle to reduce review and static-scan risk.
• Roadmap: first restore local-only .splat loading; then reopen it after idle-render stability is improved for Windows and large scenes; finally evaluate .spz separately, and only re-enable it if the decoder dependencies can be bundled locally and reviewed as local assets.

Conversion (Requires External Tools)

STEP conversion preserves XDE assembly/component labels when available, exporting each component as its own GLB node with extras.ai3d identity metadata. PCB STEP files from tools such as EasyEDA can therefore register reference-designator parts like R1, USB1, and U4 instead of collapsing the board into one mesh.

Format Feature Matrix

---

Usage

Syntax Guide

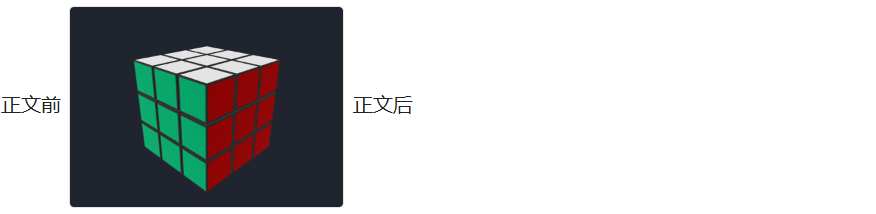

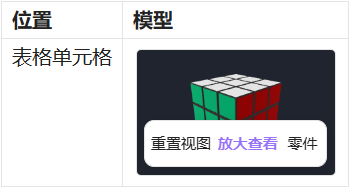

1. Inline Embed

Write a wikilink anywhere in your note. Works in Reading and Live Preview.

![[model.glb]]
![[model.glb|400x300]]

2. 3d Code Block

Quick — file path only:

```3d model.glb
```

Full config — camera, lights, scene, multi-model:

```3d
{
  "models": [
    { "path": "model.glb" },
    { "path": "part.stl", "color": "#ff0000", "wireframe": true }
  ],
  "camera": { "fov": 30, "position": [5, 5, 5] },
  "lights": [
    { "type": "hemisphere", "color": "#fff", "intensity": 1 },
    { "type": "directional", "position": [10, 20, 10] }
  ],
  "scene": { "autoRotate": true, "grid": true },
  "width": "100%",
  "height": 500
}
```

3. 3dgrid Code Block

Render multiple models in one viewport using layout presets.

```3dgrid
{
  "models": [
    { "path": "v1.step" },
    { "path": "v2.step" },
    { "path": "v3.step" }
  ],
  "preset": "compare"
}
```

3dgrid accepts the same camera, lights, scene fields as 3d, plus: preset, params, columns, rowHeight, gapX, gapY, sections, direction.

4. Direct File View

Click any .glb/.gltf/.stl/.obj/.ply file in the file explorer.

Supported Extensions

Keyboard Shortcuts (in preview)

3D Annotations

Add labeled bookmarks directly on model surfaces. Annotations persist per model file.

Direct View (edit mode):

1. Click the tag icon in the toolbar
2. A blue overlay indicates annotation mode is active
3. Click anywhere on the model surface to place a pin
4. Enter a label and pick a color in the popup editor
5. Click an existing pin to edit its label/color or delete it
6. Press Esc to exit annotation mode

Depth-aware occlusion: Pins behind geometry display blurred and dimmed. During camera movement, occlusion refreshes in small batches so existing bookmarks do not visibly lag behind model rotation; when idle, the overlay catches up with a full refresh cadence.

Code blocks & Live Preview: Saved annotations display as read-only overlays with the same occlusion behavior.

---

Knowledge Notes

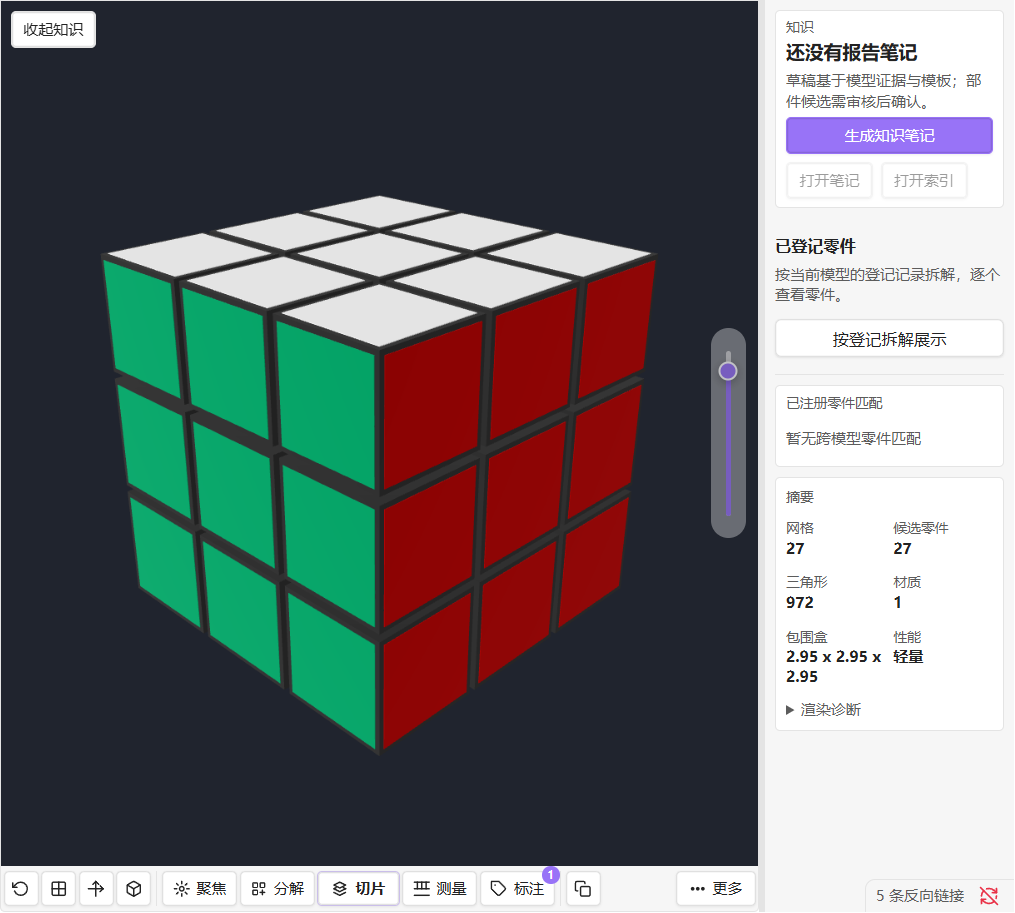

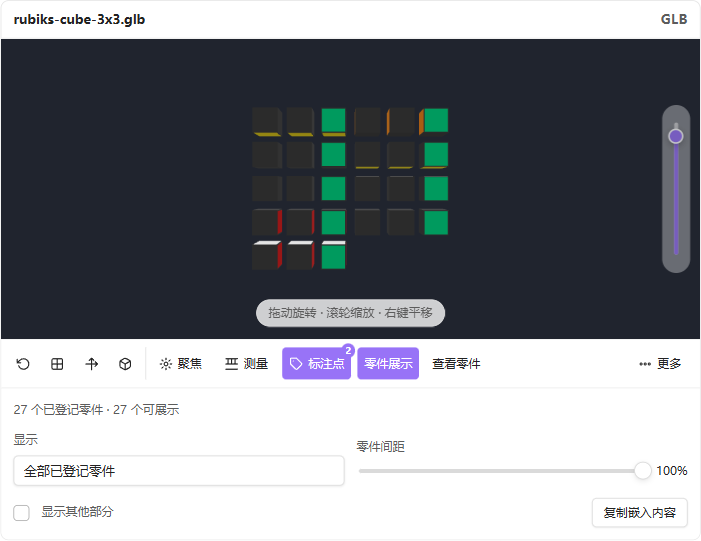

The workbench Generate note action creates an evidence-backed Markdown note rather than a bare template. Each generation pass writes:

• a model report in Analysis/3D Reports
• a JSON analysis sidecar with preview summary, part candidates, knowledge nodes, warnings, and pipeline metadata
• a model knowledge index in Analysis/3D Reports that links the report, sidecar, evidence images, annotations, and part notes
• up to 8 first-pass part note drafts in Parts/3D Components, linked from the report and sidecar without overwriting existing part notes
• a current viewport evidence snapshot in Media/3D Previews
• an editable local draft that turns the captured evidence, annotations, tags, and profile notes into a first-pass knowledge note body, plus local draft metadata for tags and next actions

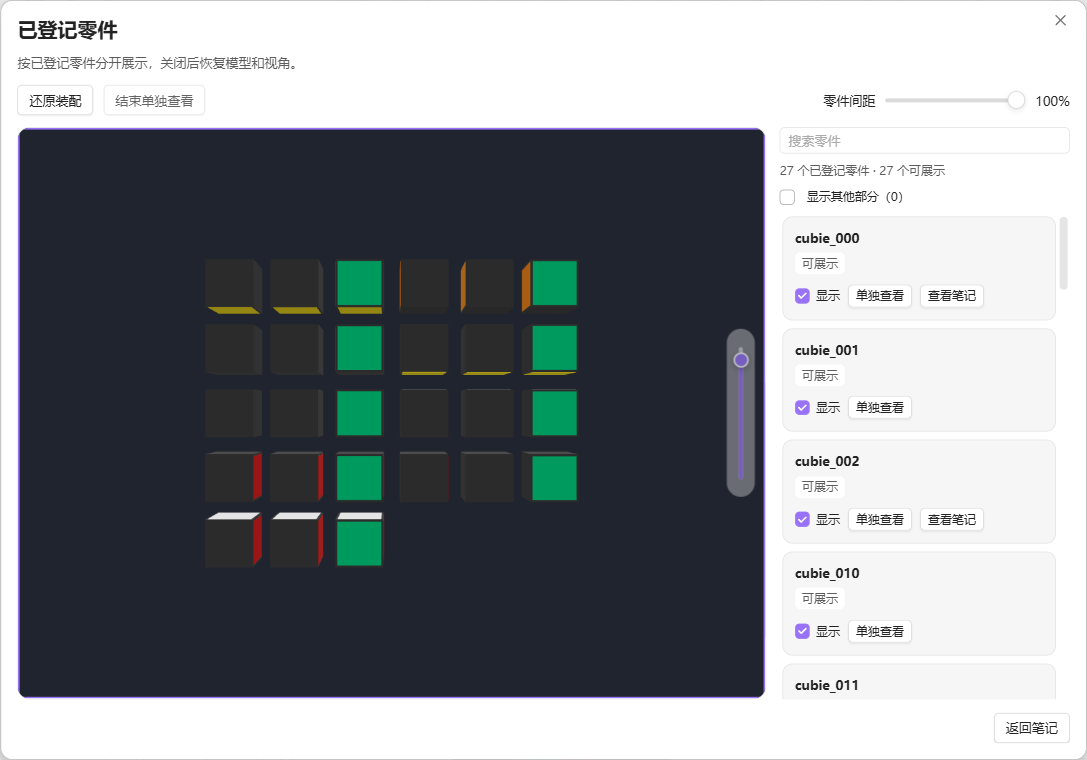

The default local pass does not send model data to a remote service. It uses renderer evidence, saved annotations, tags, and profile notes as the grounding layer for later AI-assisted drafting. When a GLB/GLTF file contains named internal groups or assemblies, the renderer registers those groups as higher-confidence part candidates and keeps ungrouped meshes as standalone candidates. GLB/GLTF component metadata in extras.ai3d (partId, occurrenceId, partNumber, and componentPath) is registered as individual component parts when present. STEP conversion preserves XDE component labels as GLB component metadata, so PCB reference designators and CAD assembly children can become individual registered parts after conversion. Direct file view stores those captured candidates in the model profile immediately after a successful load, preserving source extensions such as STEP, FBX, 3MF, and DAE in the analysis record so later imported models can match reused parts across converted model types even before a full report exists. During note generation, current part candidates are also compared with parts registered in other profiles or analyzed model sidecars, so likely reused components can be linked back to their existing part notes for review.

After a report has been generated, use the direct workbench Open index action or the command palette Open knowledge index command to jump back into the model's knowledge map.

Optional remote drafting can be enabled in settings by choosing Local evidence + remote draft or Remote draft from evidence and entering a draft service URL. The client sends POST /draft-note with sanitized drafting input only. Raw model upload is blocked; geometry summaries and preview image references are controlled by separate privacy toggles.

---

Settings

Converter Settings

Portability and diagnostics

The rendering layer is cross-platform: direct formats like GLB, OBJ, STL, PLY, and already-converted .ai3d-converted.glb assets can render anywhere Obsidian Desktop can provide WebGL.

On iOS, iPadOS, and Android, the plugin now supports direct formats such as GLB, GLTF, OBJ, STL, and PLY. Local conversion routes for CAD, FBX, 3MF, DAE, and SLDPRT remain desktop-only because they depend on external CLI tools and Python environments.

The conversion layer is less portable because it depends on local tools and Python environments that vary by machine. Use the converter diagnostics panel in plugin settings as the first check when a CAD or mesh format fails. It verifies both the executable path the plugin resolved and whether the selected Python environment can import the required packages or the native converter CLI can launch.

For repository-level implementation rules, see docs/cross-platform-development.md.

On macOS in particular, the system Python at /usr/bin/python3 often exists but does not include CAD packages. If diagnostics show that path and the self-check fails, install a separate Python environment and point the plugin setting to that interpreter explicitly.

---

External Dependencies

Only needed for CAD, FBX, and mesh conversion. Direct formats work without any external tools.

Python + CadQuery (STEP, IGES, BREP)

# Install
pip install cadquery trimesh

Verify with the Python command your OS uses:

• Windows: py -c "import cadquery; print('OK')"
• macOS / Linux: python3 -c "import cadquery; print('OK')"

If diagnostics resolve to /usr/bin/python3 on macOS and the import check fails, install a separate Python (for example Homebrew Python), install cadquery and trimesh there, then set that interpreter path in plugin settings.

FreeCAD (SLDPRT)

Install FreeCAD for your platform:

• Windows: install from freecad.org/downloads
• macOS: install the app bundle or use brew install --cask freecad
• Linux: install your distro's FreeCAD package and make sure freecadcmd is available

The plugin prefers the explicit setting and environment variable first, then checks common user-managed install locations, then PATH, and finally system fallback hints such as:

• Windows: %LOCALAPPDATA%\Programs\FreeCAD*\bin\FreeCADCmd.exe
• macOS: /Applications/FreeCAD.app/Contents/MacOS/FreeCADCmd, /usr/local/bin/FreeCADCmd, /opt/homebrew/bin/FreeCADCmd
• Linux: /usr/bin/freecadcmd

Python + trimesh (3MF, DAE)

pip install trimesh numpy networkx pycollada

Auto-discovery: Same Python as CadQuery (see above).

Override: Environment variable AI3D_ASSIMP_CMD.

obj2gltf (OBJ, optional)

The plugin already has a built-in OBJ loader. obj2gltf is an optional alternative that can produce higher-fidelity GLB output.

Install:

npm install -g obj2gltf

Resolution order: The plugin prefers the explicit setting and environment variable first, then checks common user-managed install locations, then PATH, and finally system fallback hints such as obj2gltf.cmd on Windows and obj2gltf in standard macOS/Linux locations like /usr/local/bin/obj2gltf and /opt/homebrew/bin/obj2gltf.

Enable: Settings > Enable OBJ2GLTF converter, or set "obj2gltf path".

FBX2glTF (FBX)

FBX files are converted to GLB through the local FBX2glTF binary. The older community FBX loader is not bundled because its current release targets Babylon.js 8, while this plugin uses Babylon.js 9.

Install:

Download or build FBX2glTF for your platform and place the binary in a known location.

Resolution order: The plugin prefers the explicit setting and environment variable first, then checks common user-managed install locations, then PATH, and finally system fallback hints such as:

C:\Program Files\FBX2glTF\FBX2glTF-windows-x64.exe
C:\Program Files\FBX2glTF\FBX2glTF.exe
/usr/local/bin/FBX2glTF
/opt/homebrew/bin/FBX2glTF
/usr/local/bin/fbx2gltf

Enable: Settings > Enable FBX2glTF converter, or set "FBX2glTF path".

Environment Variables

The legacy alias AI3D_FREECMDCMD is still accepted for compatibility, but new setups should use AI3D_FREECADCMD.

---

Technical Details

Architecture

src/
├── main.ts                    # Plugin lifecycle, commands
├── domain/
│   ├── models.ts              # Shared interfaces
│   └── constants.ts           # Default settings, extensions
├── store/
│   ├── create-store.ts        # Custom store primitive
│   └── plugin-store.ts        # Obsidian saveData bridge
├── render/
│   ├── preview/               # Renderer-agnostic abstraction layer
│   │   ├── types.ts           # ModelPreview, AnnotationPreview, WorkbenchPreview interfaces
│   │   ├── routing.ts         # Three/Babylon route decision logic
│   │   ├── factory.ts         # Dynamic import factory for renderers
│   │   ├── selection.ts       # Preview selection with logging
│   │   ├── annotations.ts     # AnnotationManager (pin overlay + occlusion)
│   │   ├── geometry.ts        # Renderer-agnostic vector math
│   │   ├── bounds.ts          # Bounding box utilities
│   │   ├── camera-fit.ts      # Camera fitting algorithms
│   │   ├── disassembly.ts     # Disassembly controller (adapter pattern)
│   │   ├── explode.ts         # Explode view (adapter pattern)
│   │   ├── report.ts          # Markdown report generation
│   │   └── summary.ts         # Model/part summary creation
│   ├── three/                 # Three.js renderer
│   │   ├── scene.ts           # ThreeModelPreview class (GLB/GLTF/STL/PLY/OBJ)
│   │   ├── loaders.ts         # Format-specific loaders with vault MTL resolution
│   │   ├── disassembly.ts     # ThreeDisassemblyAdapter
│   │   └── explode.ts         # ThreeExplodeAdapter
│   ├── babylon/               # Babylon.js renderer
│   │   ├── scene.ts           # BabylonModelPreview class
│   │   ├── grid.ts            # GridRenderer class
│   │   ├── picking.ts         # Click-to-pick with highlight
│   │   ├── loaders/
│   │   │   ├── stl-loader.ts  # Custom binary STL parser
│   │   │   ├── ply-loader.ts  # Custom ASCII/binary PLY parser
│   │   │   └── register.ts    # Babylon SceneLoader plugins
│   │   └── presets/           # Grid layout presets
├── io/
│   ├── formats/
│   │   └── registry.ts        # Format capability registry
│   ├── conversion/
│   │   ├── manager.ts         # Conversion orchestration
│   │   └── adapters/          # Converter implementations
│   └── model-pipeline.ts      # Format routing logic
└── view/
    ├── workbench/             # Knowledge-note helpers
    ├── inline/                # Code blocks, live preview
    └── direct-view.ts         # Direct file opening

Model Import Pipeline

┌─────────────────────────────────────────────────────────────┐
│  1. Format Detection                                        │
│     └─ getFormatCapability(ext) → { family, strategy }      │
│                                                             │
│  2. Route Decision                                          │
│     ├─ strategy: "direct" → prepareDirectLoad()             │
│     └─ strategy: "convert" → convertForPreview()            │
│                                                             │
│  3. Data Loading                                            │
│     ├─ readBinaryPath() → ArrayBuffer                       │
│     └─ [if converted] → read converted .glb                 │
│                                                             │
│  4. Babylon Rendering                                       │
│     ├─ GLB/GLTF/OBJ → SceneLoader.ImportMeshAsync()        │
│     ├─ STL → loadSTLBuffer() (direct parse)                 │
│     └─ PLY → loadPLYBuffer() (direct parse)                 │
└─────────────────────────────────────────────────────────────┘

Why Direct Buffer Loading for STL/PLY

Babylon.js v9 SceneLoader has a bug where custom plugins receive data URL strings instead of ArrayBuffer when loading via SceneLoader.ImportMeshAsync(). Built-in loaders (GLTF and OBJ) are unaffected.

Workaround: STL and PLY parsers are called directly with the raw ArrayBuffer, bypassing SceneLoader entirely.

Conversion Caching

• Location: Same directory as source file
• Format: {filename}.ai3d-converted.glb
• Validation: Checks converter identity, cache key, file existence
• Invalidation: Automatic when converter settings change
• Manual clear: Command palette > "Clear Conversion Cache"

---

Known Limitations

---

Deployment

Prerequisites

• Node.js >= 18
• npm >= 9
• Obsidian >= 1.5.0

Build Commands

npm install           # Install dependencies
npm run dev           # Development build with watch
npm run build         # Production build
npm run typecheck     # TypeScript type check
npm run verify:preview  # Targeted browser preview smoke test
npm run verify:preview:success  # Full preview routing success suite
npm run verify:obsidian  # End-to-end Obsidian app smoke test
npm run verify:release   # Release asset version/hash/size check
npm run verify:settings  # Legacy data.json/default-settings migration check
npm run verify:remote-draft  # Remote draft privacy/client behavior check
npm run verify:knowledge-index  # Knowledge index link and refresh regression check
npm run verify:diagnostics  # Sanitized diagnostics report regression check

Preview Verification

Run npm run verify:preview:success before shipping preview changes. For a focused default-route check, npm run verify:preview still works. The harness auto-detects common Chrome, Edge, Chromium, and Brave installs on Windows, macOS, and Linux; set PLAYWRIGHT_CHROMIUM_EXECUTABLE only when using a custom browser path. The success suite launches a temporary Playwright harness, loads models/rubiks-cube-3x3.glb, and verifies:

• default simple GLB preview
• default direct-edit GLB preview
• default readonly saved-pin GLB preview
• reading-surfaces-only rollout behavior
• compatibility-mode rollback behavior
• workbench Babylon fallback routing and experimental Three.js workbench probe
• direct-format STL, PLY, and OBJ preview routing
• helper toolbar interactions, focus mode, moving-pin occlusion, selected-part export, performance snapshots, and wheel-scroll containment

If verification fails, the script saves a screenshot and a log with preview state plus browser messages under .tmp/preview-failures/.

Obsidian Verification

Run npm run verify:obsidian on macOS before release when Obsidian is installed. The script builds a temporary test vault under /tmp/ai-model-workbench-verify-vault, installs the packaged plugin, opens a note in Obsidian through a remote debugging port, trusts the temporary vault when prompted, confirms that GLB/STL preview canvases are loaded, checks converter feedback for an FBX route without FBX2glTF enabled, then opens the real GLB file view with Experimental Three workbench enabled and checks backend selection, focus/disassembly controls, panel explode controls, annotation mode, and knowledge-note generation.

Use npm run verify:obsidian -- --clean when you want the temporary vault removed after the run. On macOS, the clean path quits Obsidian and unregisters the temporary vault before deleting it so the developer console does not keep reporting stale ENOENT reads from /tmp.

Knowledge Note Verification

Run npm run verify:knowledge-index after changing generated reports, part drafts, or model index behavior. The script bundles the knowledge-note helpers with a small Obsidian shim, builds a representative model index, refreshes the AI-managed block, and confirms user-written notes remain intact.

Build Output

ai-model-workbench/
├── main.js           # ~3.8 MB (minified plugin runtime bundle)
├── manifest.json     # Plugin manifest
├── styles.css        # Plugin styles
└── src/              # Source code

Release Publishing

Releases are published by the GitHub Actions Release workflow. Push a tag that matches manifest.json, for example 0.4.0, or run the workflow manually. The workflow uploads only main.js, manifest.json, and styles.css, removes unsupported release assets, verifies asset sizes and SHA-256 hashes, and generates GitHub artifact attestations for the published files. After a release is published, run npm run verify:obsidian -- --release-tag 0.4.0 to install the assets downloaded from GitHub into the temporary Obsidian vault.

Release Token Safety

Prefer GitHub Actions or GitHub CLI browser login for publishing. See SECURITY.md for the token safety checklist and PAT leak response.

Platform Support

Bundle Size Optimization

The rendering runtimes dominate the bundle size. The project keeps the output in check with:

• Subpath imports (@babylonjs/core/Engines/engine.js) instead of barrel imports
• Tree-shaking to remove unused features
• esbuild for fast, optimized bundling

Because the shipped preview mix now includes both Babylon and Three paths, the exact bundle size moves as routing coverage changes. Treat the build output above as the current reference point rather than a fixed ceiling.

---

License

MIT
