Description

Chinese chess (xiangqi 象棋) variation tree.

Reviews

No reviews yet.

Stats

18
stars
2,305
downloads
5
forks
110
days
6
days
6
days
2
total PRs
0
open PRs
0
closed PRs
2
merged PRs
2
total issues
0
open issues
2
closed issues
977
commits

Latest Version

6 days ago

Changelog

Changes

  • New: [Title] tag support - the game nav info bar (above the branch graph) shows the game title; editable via Edit Tags; UI strings localized in 8 languages
  • New: newly created PGNs (new file / new game) now seed [Game "Chinese Chess"] by default
  • Fix: upgrade @weshell/xiangqi.js to ^1.0.6 - digit-prefix multi-pawn moves (e.g. 二卒平4, 三卒平6) rewritten with official WXF2Node semantics (column-grouped global numbering)
  • Test: full-game regression for 百变象棋谱·廉蔺争功(改图2) (25-ply mainline + 2 variations)

Full Changelog: https://github.com/west-shell/obsidian-xiangqi/compare/4.20.2...4.21.0

README file from

Github

Chinese Chess

Version License: GPL-3.0 Discord PayPal Afdian

Play, explore and analyze Chinese chess (xiangqi) right inside your Obsidian notes — full PGN support, interactive boards, variation trees and a built-in Pikafish engine (WASM).

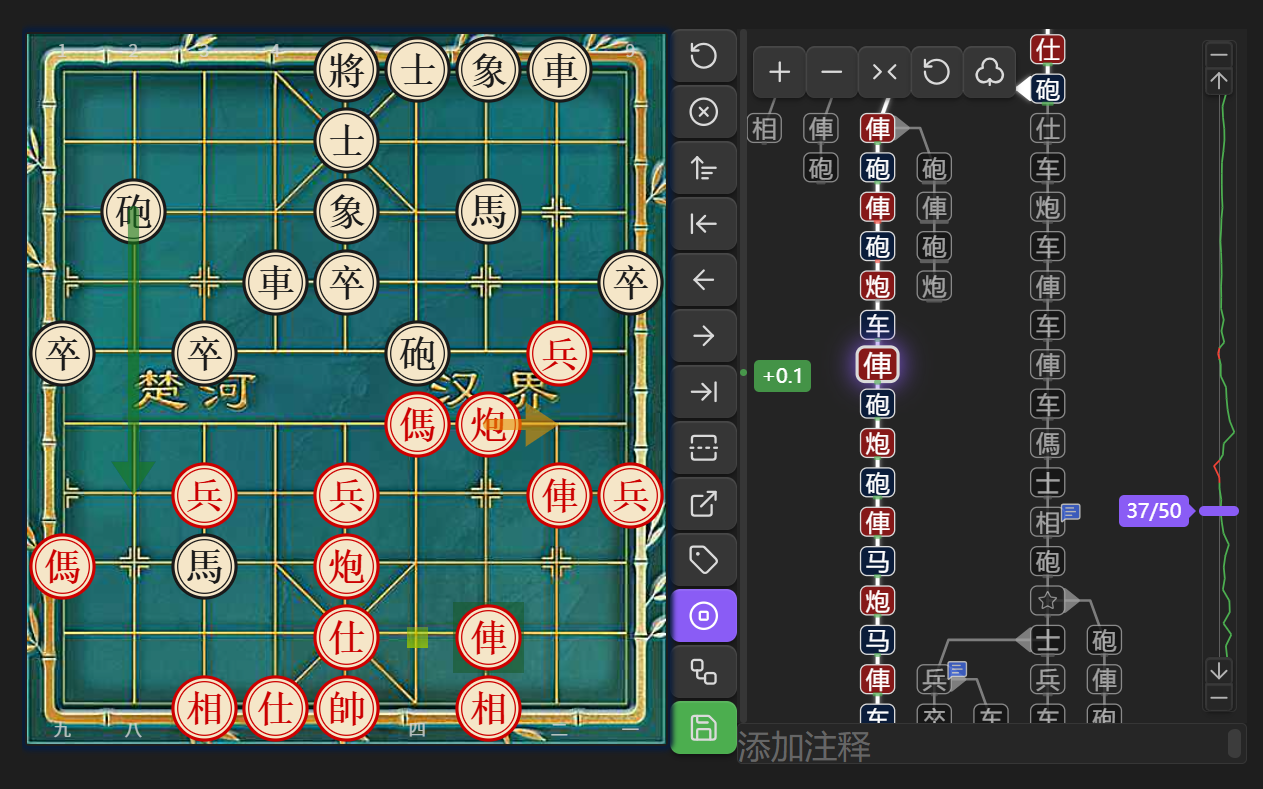

Branch Diagram

English | 中文文档

Getting Started

There are three ways to use the plugin — all of them end up on the same interactive board.

Open a PGN file

Any .pgn file opens in a dedicated chess view: browse the variation tree, edit moves and comments, run engine analysis, and save back to the file with one click. Multiple games in one file are managed via the game navigation bar — switch, add, reorder, or delete them — and the ribbon button creates a new PGN file in your configured folder, opening the rename dialog so you can name it right away.

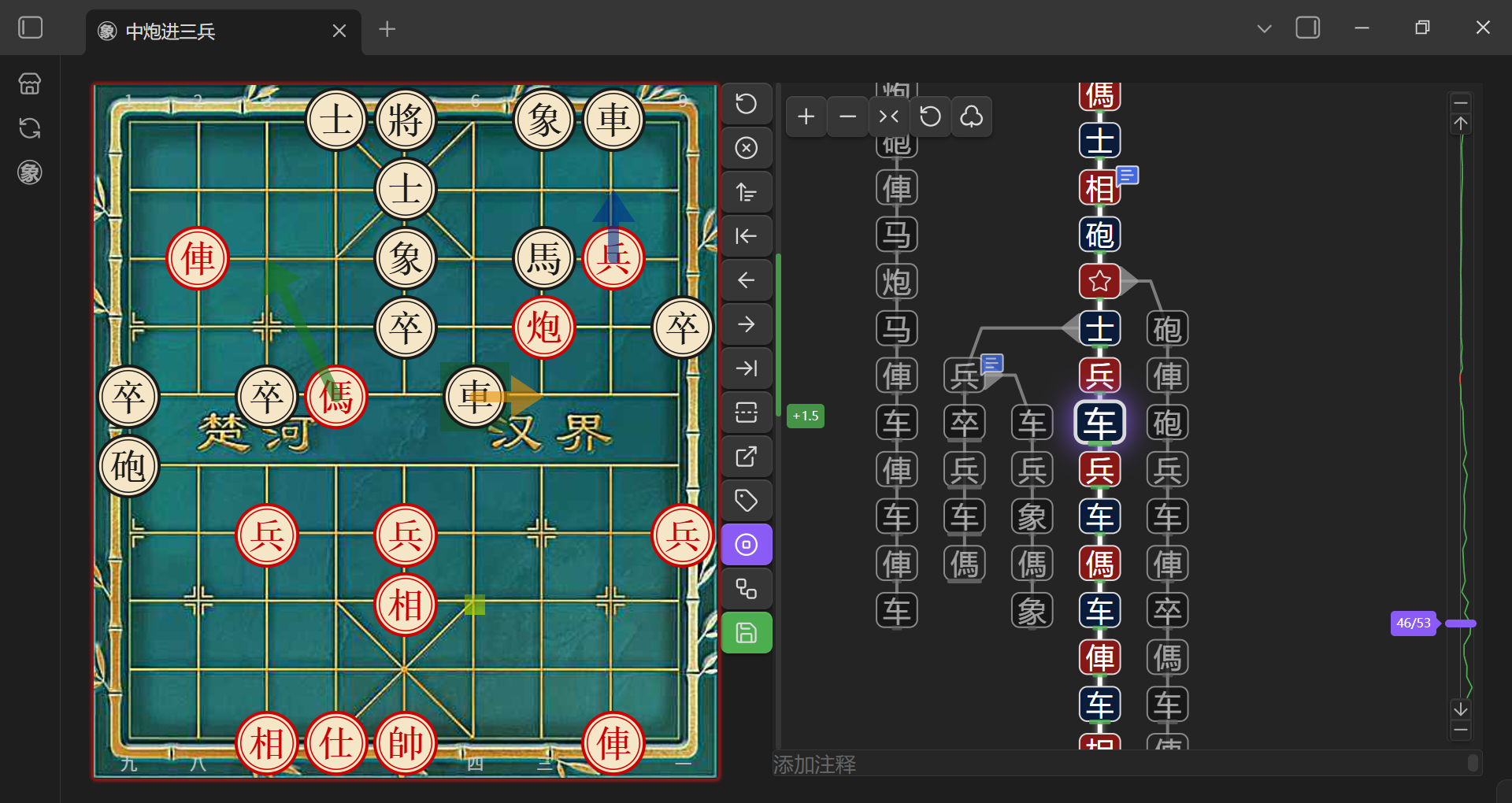

PGN File

Embed a game in a note

Write moves in a xiangqi code block — the position renders as an interactive board with the full variation tree:

```xiangqi
1. H2-E2 H9-G7
2. H0-G2 I9-H9
3. I0-H0 B9-C7
```

Optional parameters: protected/p (disable Save), rotated/r (flip board, Red on bottom). FEN is optional — with quotes or without:

```xiangqi
r:true
[FEN "2bk1a3/5n3/3Pb4/R7p/2p6/C3p2N1/PR2c3P/1nr1B1C2/4A4/1rB1KA3 w"]
1. G2-G9 F9-E8
2. D7-D8 D9-E9
```

Moves can be numbered together, unnumbered, or written one by one.

Set up a position

A fen code block opens a visual position editor — drag or click to place pieces, set the side to move, then save. It becomes a playable xiangqi code block containing the FEN.

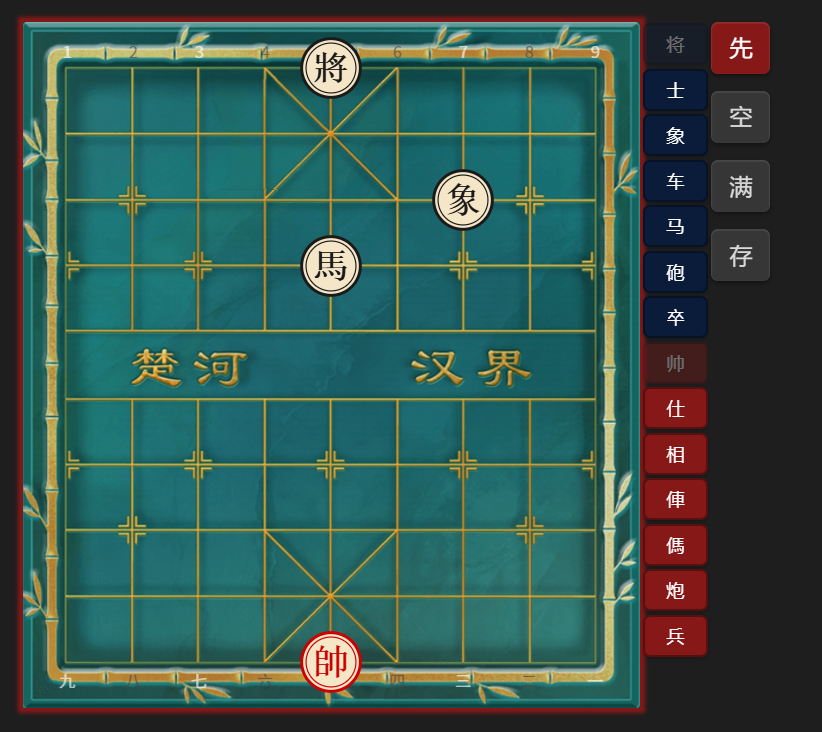

FEN Editor

Feature Tour

Variation Tree & Keyboard Navigation

Every branch is visualized as a tree graph — click any node to jump to that position, and switch between icon and text label modes. Nodes are laid out at their real pixel size, so labels, pinned blocks and previews never overlap. The current branch's arrows render at full opacity while sibling branches fade to 50%, so the line you're on stands out. Keyboard shortcuts keep your hands on the board:

Shortcut Action
Ctrl+↑ / Ctrl+↓ Jump to the previous / next fork (branching point) along the line
Ctrl+← / Ctrl+→ Switch the displayed branch at the first unfolded fork below the current node (wraps)
Ctrl+Alt+Shift+← / Ctrl+Alt+Shift+→ Cycle through every visible variation below the current node (wraps)
Alt+← / Alt+→ Cycle through every branch's node at the current ply (short or folded branches are skipped; wraps)
Alt+Shift+← / Alt+Shift+→ Jump between the ends of all visible branches (wraps)
Ctrl+Shift+← / Ctrl+Shift+→ Cycle between the first steps of all visible branches (wraps)
↑ / ↓ / ← / → Step one move back / forward; jump to game start / end

These shortcuts work in the PGN file view and in xiangqi code blocks alike. In the PGN view they are built into the view and active while it is focused. In a code block, click the board (or anywhere on the block) first — the focused block takes the shortcuts; click back into the note to return to typing. On macOS, Ctrl+↑/Ctrl+↓ may conflict with Mission Control. All branch-switching shortcuts skip branches hidden by folding. All PGN view navigation actions are also available as commands in the Command Palette — without preset hotkeys, to avoid conflicts with core and other plugins; assign your own in Settings → Hotkeys if you want global bindings.

Pin to the Tree

Keep annotations visible while you browse — the tree itself carries the extras:

  • Pinned comments: the pin button in the comment box renders the comment as a text block on the tree, connected to its move node
  • Pinned board previews: right-click any tree node → Pin board preview to keep that position's board on the tree
  • Grouped cards: a node's board preview and pinned comment form one aligned card
  • Persistence: pins are stored as [%pin] PGN markers, so they survive reloads; save options control what gets written back

The right-click node menu also promotes and reorders branches and applies annotations, acting on the right-clicked node without moving the current one.

Engine Analysis

Built-in Pikafish (WASM) — no external installation needed.

  • Single / batch / auto analysis: analyze one position, every node, or automatically as you play
  • Best-move & ponder arrows: green for best move, yellow for the ponder move
  • Eval bar: live evaluation beside the board (green = red advantage, red = black advantage)
  • Eval trend chart & node color bars: see the whole game's evaluation at a glance
  • Instant eval attribution: eval bars light up along a searched line without re-running the engine — display only, every position still gets its own full-depth search
  • Ghost lines: engine principal variations render on the tree graph as dashed ghost lines — toggle them, pick how many lines (1–5) and how deep each one goes (1–20 plies) in settings
  • Live streaming: analysis results (eval, arrows, ghost lines) update progressively per depth while the engine searches
  • Persistence: evaluations are stored as %e: comments in PGN
  • Engine play: play against the engine with configurable depth (1–30) and skill level (0–20)
  • Engine simulation: let the engine play Red, Black, or both sides (self-play) from the analysis menu, with a configurable move interval (0.1–10 s); it stops by itself on game end, threefold repetition, or when the halfmove clock runs out

Board & Pieces

  • 7 board styles: Auto, Light, Dark, Parchment, Green, Wood, Bamboo — with a swatch picker in the board menu
  • Adjustable size: board and piece display scale (0–100%)
  • Board markers: draw arrows and highlights on the board
  • Feedback options: last-move highlight, next-move hints, other variations, turn border, move sounds, spoken moves (desktop)
  • Board editor: Edit board turns any game into a position editor; existing moves are discarded on save

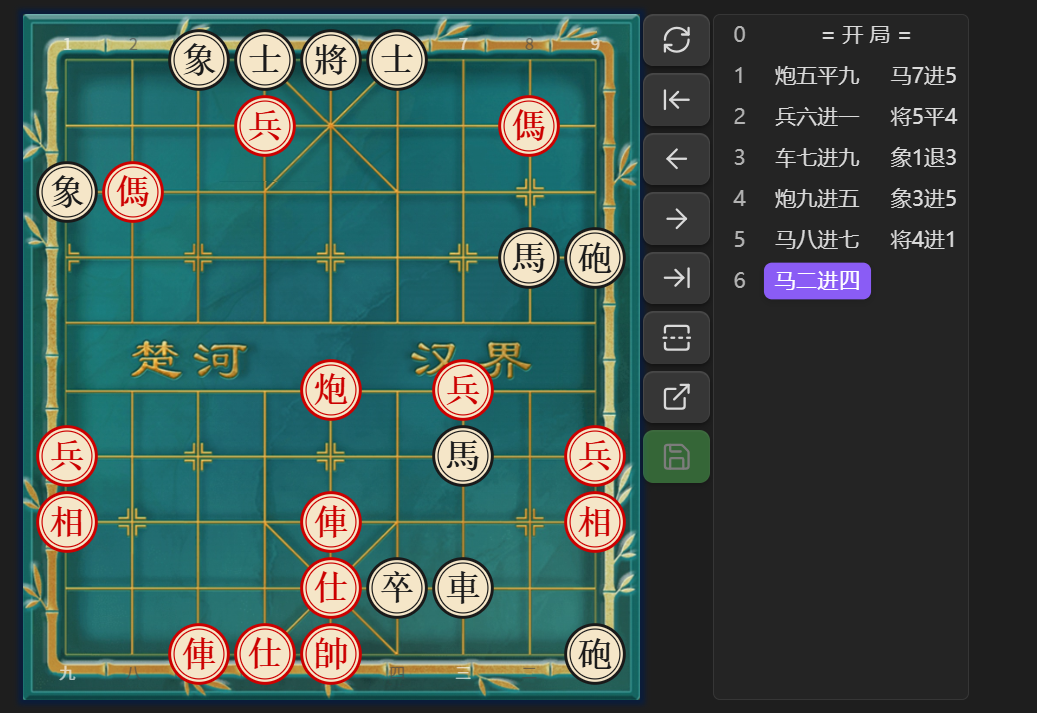

Move List

Grid-aligned move columns with Chinese (炮二平五) or coordinate (h2e6) notation, adjustable font size, and per-move marks — eval bar, annotation badge, glyph and comment underline — each independently toggleable.

Export & Share

  • PNG snapshot: export the current board as a high-resolution image with your board style
  • Animated GIF: export the mainline, the current branch, or every game in the file as a compact GIF with a configurable frame interval (0.1–10 s)
  • Save-as dialog: pick the destination before saving — fuzzy folder picker (/ = vault root) plus filename, with an overwrite confirmation; missing folders are created automatically
  • Default export folder: a settings field that prefills the save-as dialog (unset falls back to Obsidian's attachment-folder setting)

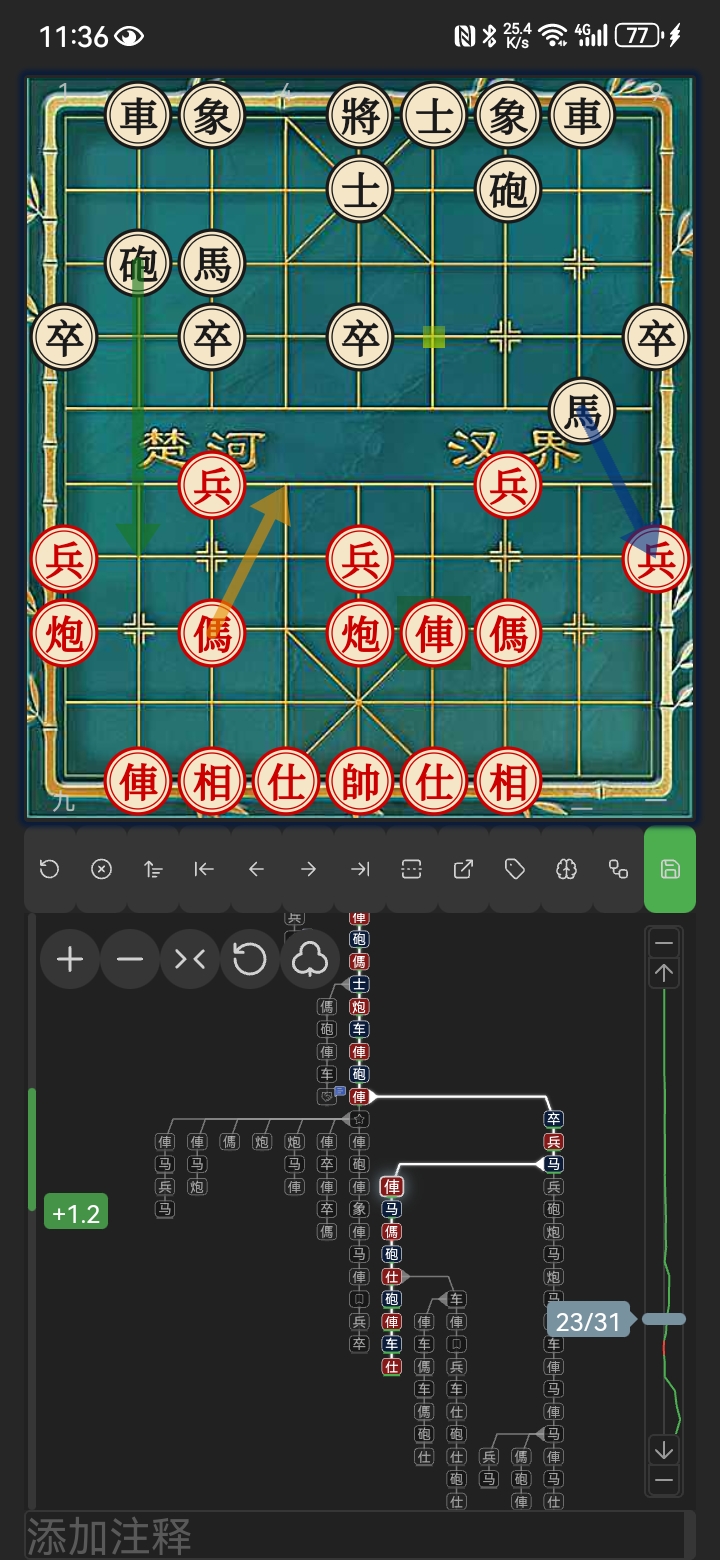

Mobile

The responsive layout automatically switches between single-column (portrait) and double-column (landscape) views. For best results, combine it with a fullscreen plugin (e.g. obsidian-full-screen-cross-platform-plugin) and tune the top/bottom board margins in settings.

Mobile

Settings Overview

All options live in Settings → Xiangqi, grouped as follows:

Group What you can configure
Board Appearance Board style, board/piece size, coordinate labels
Game Hints Last move, next moves, other variations, turn border, sounds, speech, auto jump
Move List Visibility, text size, notation, per-move marks
Board Margins Top/bottom margin (0–100 px) for fullscreen layouts
Code Block Names Aliases for xiangqi/tree blocks, FEN save target
Engine Analysis Depth, skill level, simulation interval, arrows, ghost line visibility/count/depth, engine/board annotations
Save Include eval on save, ask-before-saving (evals & pinned blocks), save pinned blocks, default export folder
PGN File View Enable/disable the view, custom file extensions, new PGN file location

Code block names, file extensions, and custom file types take effect after restarting the plugin or Obsidian.

Installation

This plugin is available on the official Obsidian community plugin marketplace:

  1. Open Settings → Community plugins (Restricted mode off)
  2. Click Browse and search for "Chinese chess" or "xiangqi"
  3. Click Install, then Enable

Build

git clone https://github.com/west-shell/obsidian-xiangqi.git
cd obsidian-xiangqi
npm install
npm run build        # Minified production build (for release)
npm run build:debug  # Unminified production build (with sourcemaps)

xiangqi.js and xiangqiground are installed from npm.

Credits & License

Released under GPL-3.0.
