Obsidian Stats logoObsidian Stats

MinerU Converter

by liyifan
5
4
3
2
1
Score: 50/100
Install Code

Description

Obsidian plugin: right-click any document and convert to Markdown via the MinerU accurate-parse API.

Reviews

No reviews yet.

Stats

0
stars
16
downloads
0
forks
2
days
3
days
3
days
0
total PRs
0
open PRs
0
closed PRs
0
merged PRs
0
total issues
0
open issues
0
closed issues
24
commits

Latest Version

0.3.3
3 days ago

Changelog

See all version on GitHub

README file from

Github

mineru-converter

License: MIT Release

English | 简体中文

Let MinerU's accurate-parse API and Obsidian work together: convert any PDF / Word / PPT / Excel / image in your vault to editable Markdown with one right-click.

This repository hosts the MinerU Converter Obsidian plugin plus the engineering notes and tooling behind it.

Contents

Folder What's in it
plugin/ The Obsidian plugin (TypeScript → bundled main.js). Ready to install.
docs/01-API文档理解.md Structured understanding of the MinerU v4 API — every endpoint, parameter, state machine, and error code.
docs/02-实操经验总结.md Hard-won engineering notes: rate limits, CDN SSL workaround, 200-page limit, encrypted PDFs, proxy pitfalls, batch processing.
docs/03-Obsidian插件开发规划.md Product plan + technical design + interaction patterns for this plugin.
code/ Python tools that pre-date the plugin (252-file batch converter). Useful when you have a giant library to process.

Quick start (Obsidian plugin)

  1. Apply for a MinerU API token at https://mineru.net/apiManage/apiManage (free tier available).
  2. In Obsidian → Settings → Community plugins → MinerU Converter, paste the token. Click Test connection to verify.
  3. Right-click any PDF / Word / PPT / Excel / image in the file explorer → Convert to Markdown via MinerU.
  4. A .md file appears next to the original. The plugin will ask if you want to open it.

PDFs longer than 200 pages are handled automatically: the plugin splits the page tree into 200-page parts, submits each part to MinerU in turn, then merges the Markdown and images back into a single .md file next to the original. The output looks identical to a non-split conversion — no part markers, one shared images/ folder. Turn this off in Settings → MinerU Converter → Auto-split oversized PDFs.

For supported formats and limits, see docs/03-Obsidian插件开发规划.md.

Demo

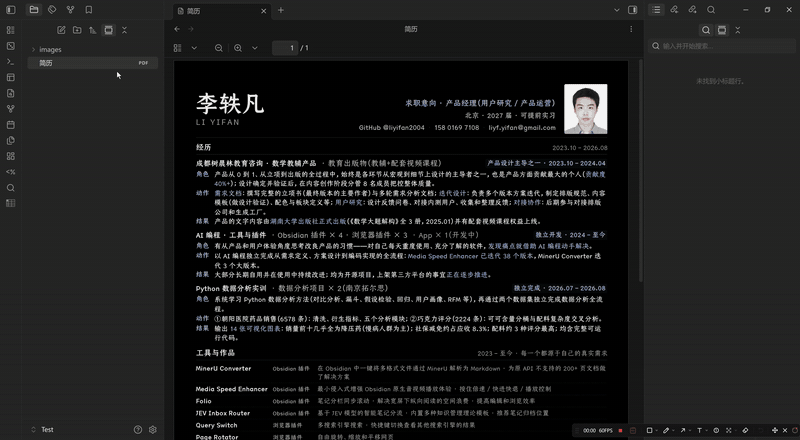

Right-click a PDF, wait a few seconds, get Markdown:

Converting a PDF to Markdown via MinerU

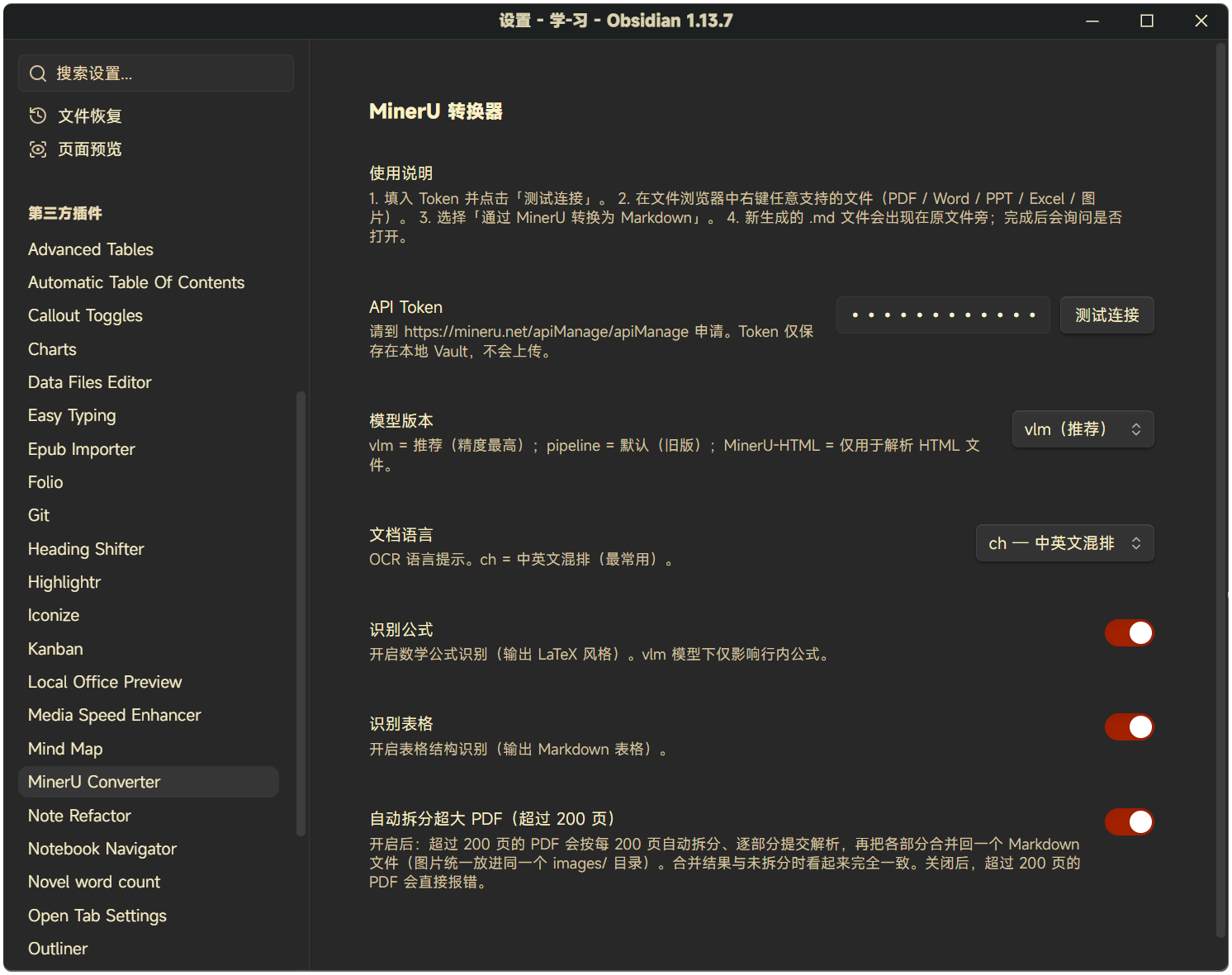

Settings — API token, model version, OCR language, formula / table recognition, auto-split for oversized PDFs:

MinerU Converter settings

Quick start (Python batch tool)

If you have hundreds of files to convert, the plugin's per-file flow is slow. Use the Python tools in code/ instead:

pip install requests PyPDF2
# Edit TOKEN and ROOT_DIR at the top of code/mineru_convert.py
python code/mineru_convert.py

The script auto-batches (40 files per batch, 70 s between batches to respect MinerU's 50/min limit), resumes on re-run, and writes .md siblings in place.

Plugin development

cd plugin
npm install
npm run dev   # watch mode, auto-rebuilds main.js

To test locally, copy the produced main.js, manifest.json, and styles.css into <your-vault>/.obsidian/plugins/mineru-converter/, then enable Community plugins → MinerU Converter in Obsidian settings.

Releases are built and attested by GitHub Actions when a bare-semver tag is pushed. Every asset carries a GitHub artifact attestation and can be verified with gh attestation verify main.js -R liyifan2004/obsidian-mineru-converter. See plugin/README.md for the release flow.

License

MIT
