Draw your notes, live. Markdown Mindmap reads the links you already keep in your notes' frontmatter and renders them — as a leveled mind map, a gantt chart, a kanban board, or a causal-loop diagram. There is no second copy of the data to maintain: every map is rebuilt from your notes each time you open it, so the picture can't drift from the source.

A map is one fenced code block, so you can drop as many as you like anywhere in your vault. There are two kinds:

• ```mindmap — a leveled left-to-right tree, switchable between map, gantt, and kanban views of the same notes.
• ```causalmap — a causal-loop diagram for systems thinking, with feedback loops detected automatically.

Point a block at some folders, name the frontmatter field that links each note to its parent, and it draws the graph.

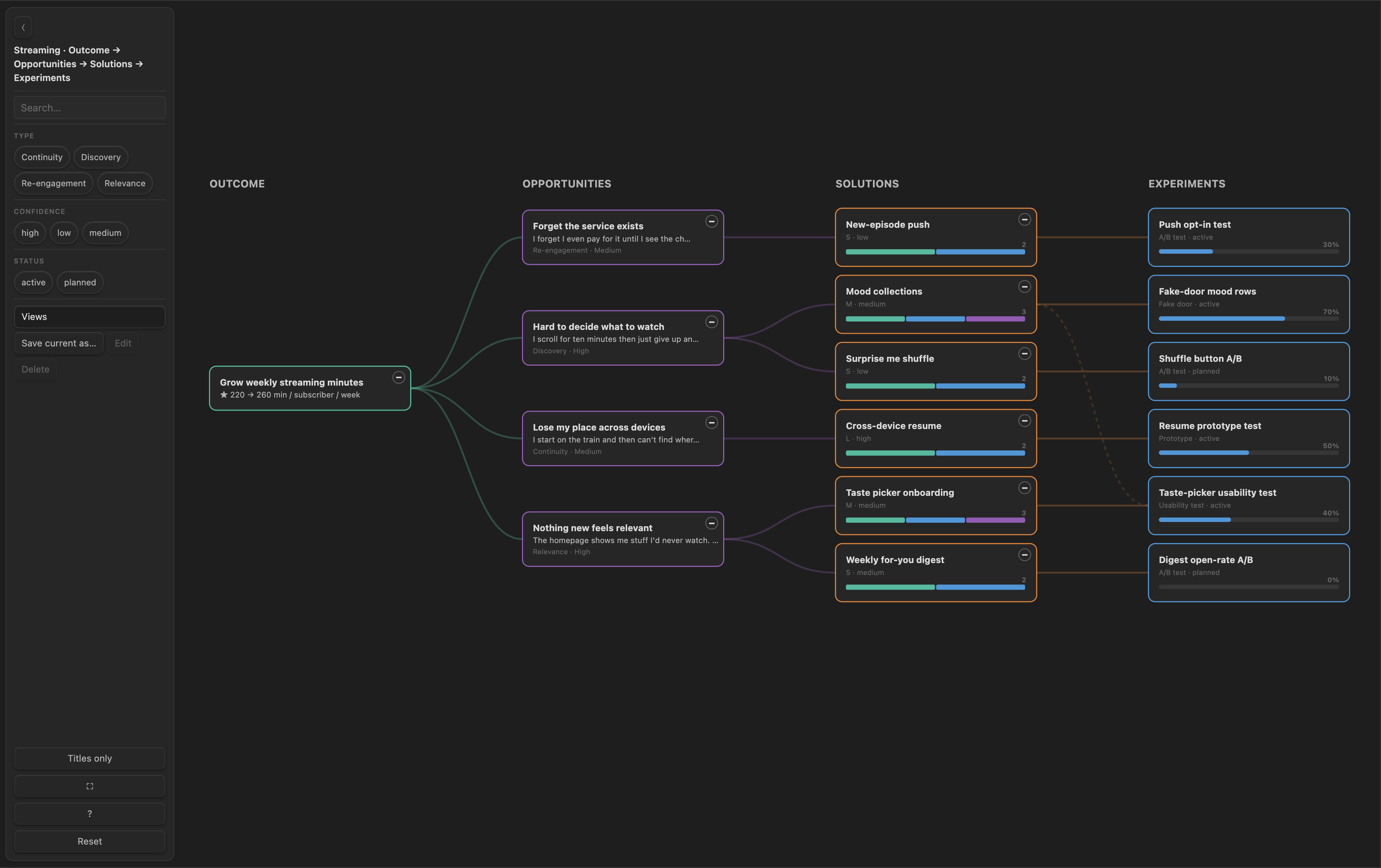

Screenshots

What you get

• Four pictures from one set of notes — mind map, gantt, kanban, and causal-loop diagram, all driven by frontmatter you already write.
• Cards you design per level — choose which fields become the title, subtitle, meta line, progress bar, category bar, or coloured pills. Cards size themselves to fit.
• Filters, search, and saved views — multi-select chips per property, a search box that spotlights matches, and named filter combinations saved back into the block.

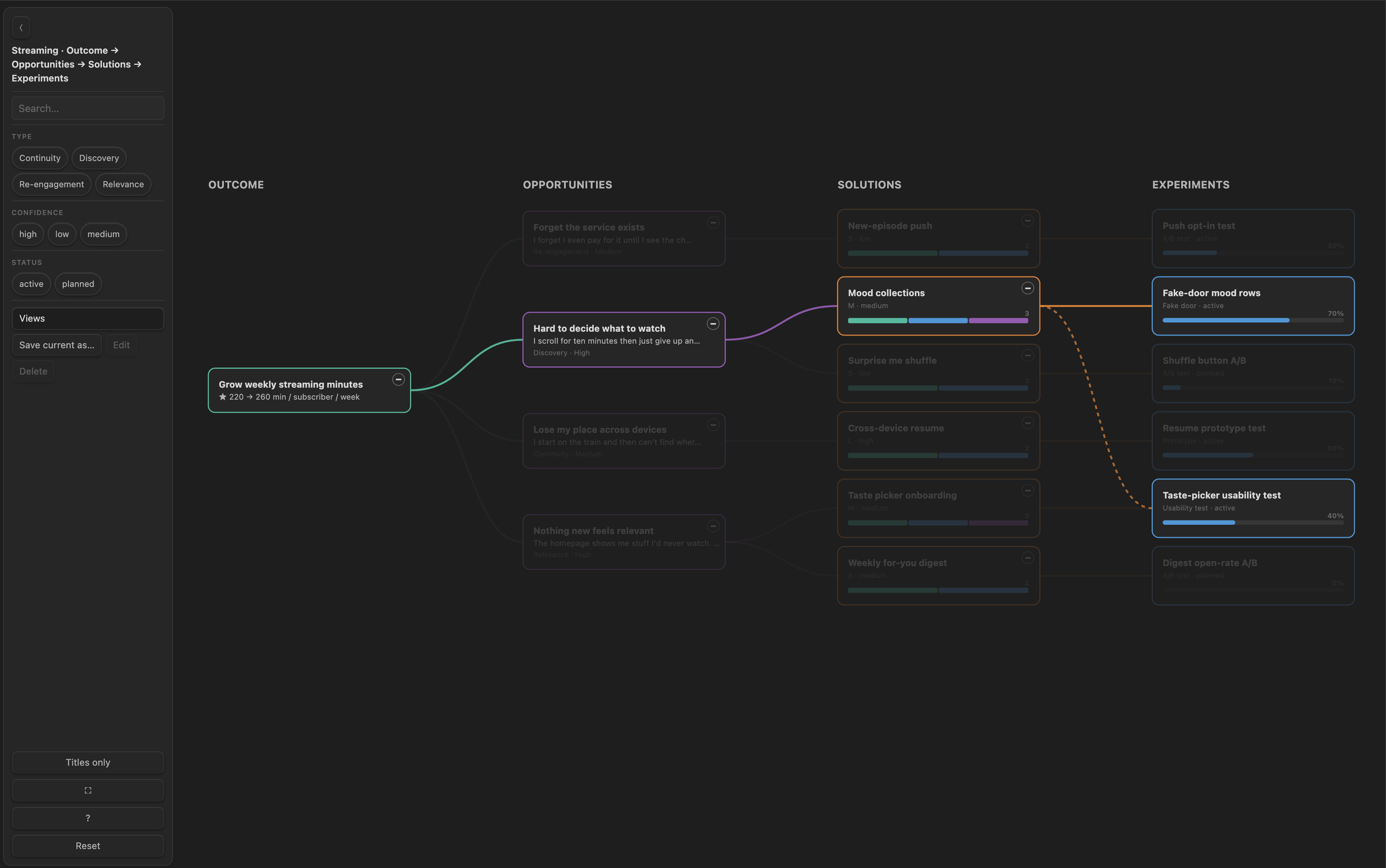

• Navigation that respects the tree — hover to light up a node's whole lineage, collapse any subtree, focus a branch, or open a card for its linked parents, siblings, and children.
• Export — save the current view as a standalone HTML file or an editable Excalidraw drawing.
• Native-feeling — themed with Obsidian's own CSS variables, so it follows your light/dark theme.
• Two hosts — everything above is the Obsidian plugin; a VS Code extension renders ```mindmap blocks from the same core, in a panel.

Install

Community plugins (recommended)

Markdown Mindmap is in the Obsidian community plugin store: Settings → Community plugins → Browse, search "Markdown Mindmap", Install, then Enable. Updates arrive through Obsidian's normal plugin-update flow.

BRAT

For pre-release builds, use BRAT: Add beta plugin → kikocastro/markdown-mindmap. BRAT-managed plugins also survive Obsidian Sync, unlike a hand-copied folder.

Manual

Get the three build files (main.js, manifest.json, styles.css) from a Release or by building from source (npm install && npm run build), copy them into <your-vault>/.obsidian/plugins/markdown-mindmap/, reload Obsidian, and enable the plugin under Settings → Community plugins.

Quick start

Put this in any note and open it in Reading view or Live Preview:

```mindmap
title: Goals → Projects → Tasks
levels:
  - id: goals
    label: GOALS
    from: planning/goals
    card: { title: title, sub: kpi }
  - id: projects
    label: PROJECTS
    from: planning/projects
    card: { title: title, meta: [status] }
  - id: tasks
    label: TASKS
    from: planning/tasks
    card: { title: title, meta: [status], progress: progress }
edges:
  - { from: goals,    to: projects, via: goal }     # each project note: goal: "[[Goal A]]"
  - { from: projects, to: tasks,    via: project }  # each task note: project: "[[Project 1]]"
filter: [status]
```

Three folders become three columns; the goal: and project: frontmatter fields become the arrows between them; status becomes a row of filter chips.

Two runnable demos ship with the repo — copy either folder into your vault root and open its note:

• examples/mindmap-demo/ — vision → areas → features → tasks, exercising per-level colours, a reverse edge, category bars, and a dashed secondary link.
• examples/ost-demo/ — an Opportunity Solution Tree with interview-quote subtitles and a saved view.

See examples/README.md for what each one demonstrates.

How it works

A map is a list of levels. Each level reads notes from a from: folder and becomes a column, left to right in the order you list them. Edges connect levels: an edge says "notes in the child level point up to a note in the parent level via frontmatter field X".

 LEVEL 0          LEVEL 1              LEVEL 2
 ┌──────────┐     ┌──────────────┐     ┌────────────┐
 │  Goal A  │────▶│  Project 1   │────▶│   Task …    │
 │          │──┐  └──────────────┘     └────────────┘
 └──────────┘  │  ┌──────────────┐     ┌────────────┐
               └─▶│  Project 2   │────▶│   Task …    │
                  └──────────────┘     └────────────┘
        edge: project.goal=[[Goal A]]    edge: task.project=[[Project 1]]

By default the linking field lives on the child notes and points up. Set reverse: true when it lives on the parent and points down (a serves: list, say). Mark an edge secondary: true and it draws dashed and stays out of the layout spine — the way to show "also relates to" without distorting the tree.

How links resolve

A via value is matched, in order, against Obsidian's own link resolution ([[wikilink]]), then the target's basename, then its title frontmatter, then its id frontmatter — so pm-style parentId: p-broker-operator hierarchies link up. A value may be a single link or a list.

A note's first non-secondary parent is its layout parent, keeping the drawing a single-parent tree; any extra parents still draw their edges.

How filters treat the hierarchy

A filter only constrains notes that have the property — a note missing it is never hidden by that chip. What differs is what happens to the notes around a match:

• Strict (default). A note that fails the filter hides itself and its whole primary subtree. Right for "show me only the devops tasks", where a parent that isn't devops shouldn't drag its children along.
• filterKeepsHierarchy: true. A match keeps its context: its subtree rides along (a matching epic still shows its subtasks, whatever their own status) and its ancestors stay visible as scaffolding. Right for a roadmap where the tree shape matters.

Collapse applies last either way, so a contracted subtree stays hidden.

A fuller example

A product strategy tree using per-level colours, secondary dashed links, category bars, and progress bars:

```mindmap
title: North Star → Drivers → Opportunities → Roadmap
height: 860
properties: true
levels:
  - { id: northstar, label: NORTH STAR,   from: strategy/north-star,   color: "#1abc9c", card: { title: title, sub: metric } }
  - { id: drivers,   label: DRIVERS,       from: strategy/drivers,      color: "#9b59b6", card: { title: title, sub: metric } }
  - { id: opps,      label: OPPORTUNITIES, from: strategy/opportunities, color: "#e67e22", card: { title: title, labels: [kind, horizon], bars: demand } }
  - { id: roadmap,   label: ROADMAP,       from: strategy/roadmap,      color: "#e74c3c", where: { parentId: null }, card: { title: title, meta: [status], progress: progress } }
edges:
  - { from: drivers, to: opps,    via: ladders-to }
  - { from: opps,    to: roadmap, via: serves }
  - { from: opps,    to: roadmap, via: alsoServes, secondary: true }   # dashed
filter: [horizon, kind, status]
```

The three views

One ```mindmap block can draw its notes three ways. Add a gantt: or kanban: config and a View switcher appears in the toolbar; set view: to choose which one opens by default. Filters, search, and collapse are applied before layout, so they behave identically in all three — and a saved view pins the filters and the view type, letting you keep a "devops · gantt" one click away.

```mindmap
title: 2026 Roadmap
view: gantt
levels:
  - id: tasks
    from: strategy/2026 Roadmap_tasks
    where: { parentId: null }
    card: { title: title, labels: [status], meta: [start, due], progress: progress }
  - id: subtasks
    from: strategy/2026 Roadmap_tasks
    card: { title: title, progress: progress }
edges:
  - { from: tasks, to: subtasks, via: parentId }
gantt: { start: start, end: due }
kanban: { groupBy: status }
filter: [status, tags]
```

Map is the default: a column per level, curved edges, cards centred on their children.

Gantt lays the same tree out against a time axis. Rows run from start to end with a progress fill; a task whose dates are equal — or that has only one of them — becomes a milestone diamond, and a task with neither gets a plain row. Bars take their colour from the note's status, matched case-insensitively, with the spaced and hyphenated spellings of each both recognised:

• green — done, complete, completed, closed, shipped
• blue — in progress, in-progress, doing, active, wip, started, ongoing
• grey — todo, to do, to-do, planned, backlog, open, not started, new, pending

Anything else — or a missing status — falls back to the level's colour. A vertical today marker appears when the current date is in range, and hovering a row shows its title, dates, status, progress, and tags.

By default rows sort by start date within the hierarchy — siblings and roots are ordered by date, but children stay grouped under their parent, never flattened. Nested rows share the map's collapse state, so a saved view's collapsed list applies here too.

Kanban stacks the same cards into columns by any frontmatter field. All the card configuration carries over; notes with no value gather under a trailing (none) column.

Keys for all three live in the configuration reference.

Causal maps

A ```causalmap block renders a causal-loop diagram — the multi-connected graph systems thinkers use to diagnose retrospectives and post-mortems and to find leverage points. (Obsidian only for now.)

Each causal variable is a note carrying its outgoing signed edges in frontmatter, so the topology is stored once, on the source note, with no separate edge file:

---
id: untested-code-live # optional, defaults to the file name
label: Untested code live
type: vice # driver | vice | capability | virtue — colours the border
status: active
affects:
  - to: incident # id, note name, or [[wikilink]]
    sign: "+" # "+" moves the same direction (default), "-" opposite
    loops: [R1] # optional: name the loop(s) this edge belongs to
---

The block itself just points at the folders:

```causalmap
title: Engineering system
folders: [systems/nodes]
loopFolders: [systems/loops]   # optional loop cards (id + label) naming detected loops
where: { status: active }
height: 700
```

What the diagram gives you:

• Loops found for you. A bounded simple-cycle search detects every feedback loop and classifies it by sign parity — an even number of - edges makes a reinforcing loop, odd makes a balancing one. There is no hand-maintained loop list to fall out of date.
• A loop rail. Each detected loop becomes a chip (● amber = reinforcing, ● teal = balancing); click it to spotlight exactly that cycle's nodes and edges — the retro-projector view — and click again to release. Hovering shows the whole cycle as an A → B → C → A tooltip. Loops whose edges share a loops: tag take that name and lead the rail alphabetically, with a matching card in loopFolders supplying the display label; untagged cycles get auto names (L1, L2, …) in discovery order.
• A type legend listing the node types actually present, with their colours.
• Signed edges as curved arrows with a +/− badge; negative links draw dashed.
• A deterministic layout. The force-directed placement has no randomness, so the same notes always produce the same picture.

Hovering a node lights up everything it affects and is affected by; clicking one opens the note dialog, with each linked row carrying its edge sign. Search, fullscreen, HTML export, and pan/zoom work as they do in mindmaps.

A runnable copy, with sample cards and loop notes, lives in examples/causalmap-demo/. Copy that folder into your vault root and open Causal map demo.md.

Using a map

The toolbar is a rail down the left: title and search at the top, then chip groups (View, Scale, Density, Rows, one per filter property, and Saved views), then a footer holding Display, Export, and the Reset / Refresh / Help row.

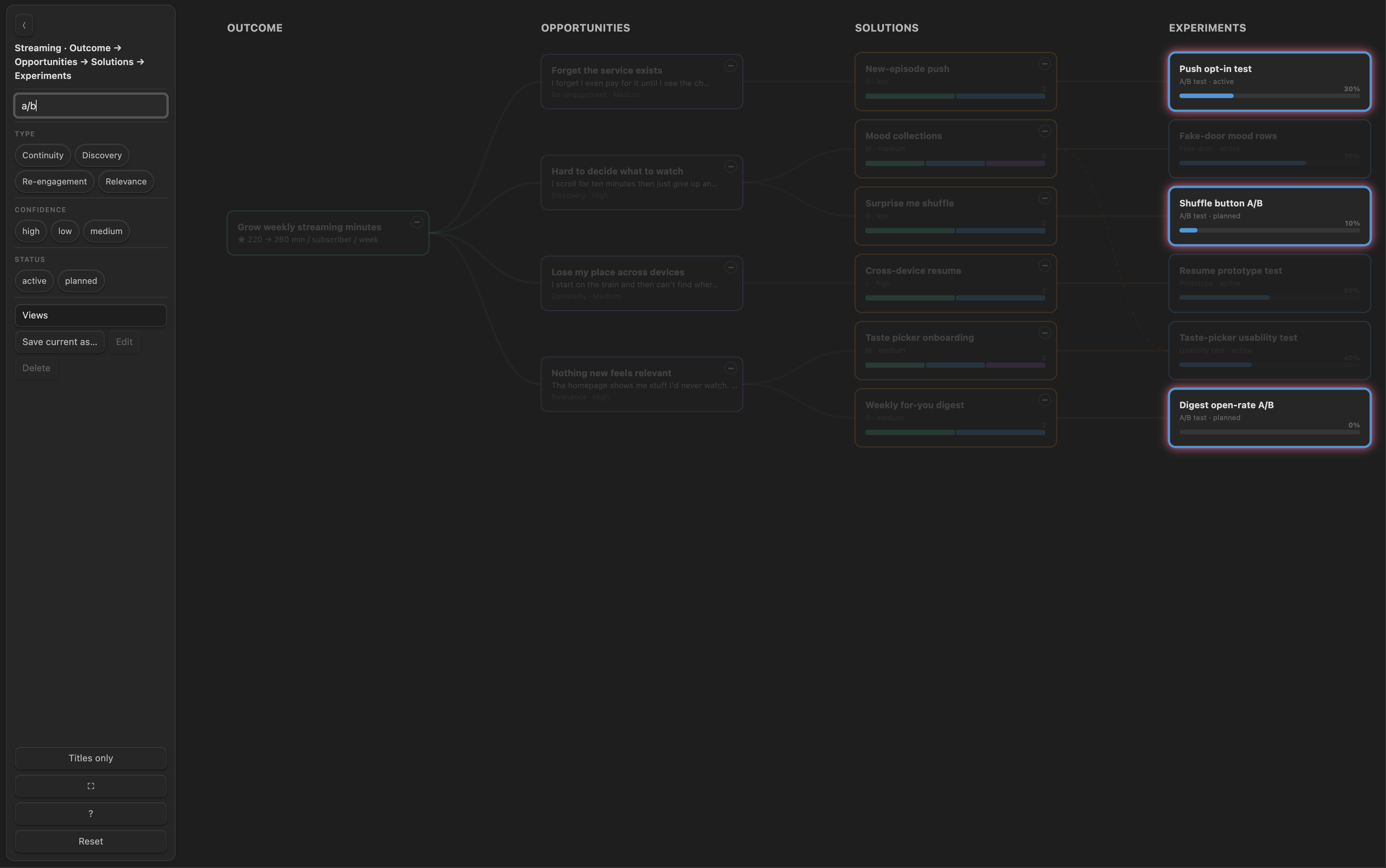

• Search — spotlight cards matching title / sub / meta and dim the rest.
• View chips — flip between map / gantt / kanban (shown once gantt: or kanban: is configured).
• Scale, Density, Rows chips — gantt only: the axis unit (week / month / quarter / year), compact vs comfortable row size for presenting, and show subtasks to expand or contract every parent row at once.
• Filter chips — multi-select per property, OR within a property and AND across them, options sorted alphabetically.

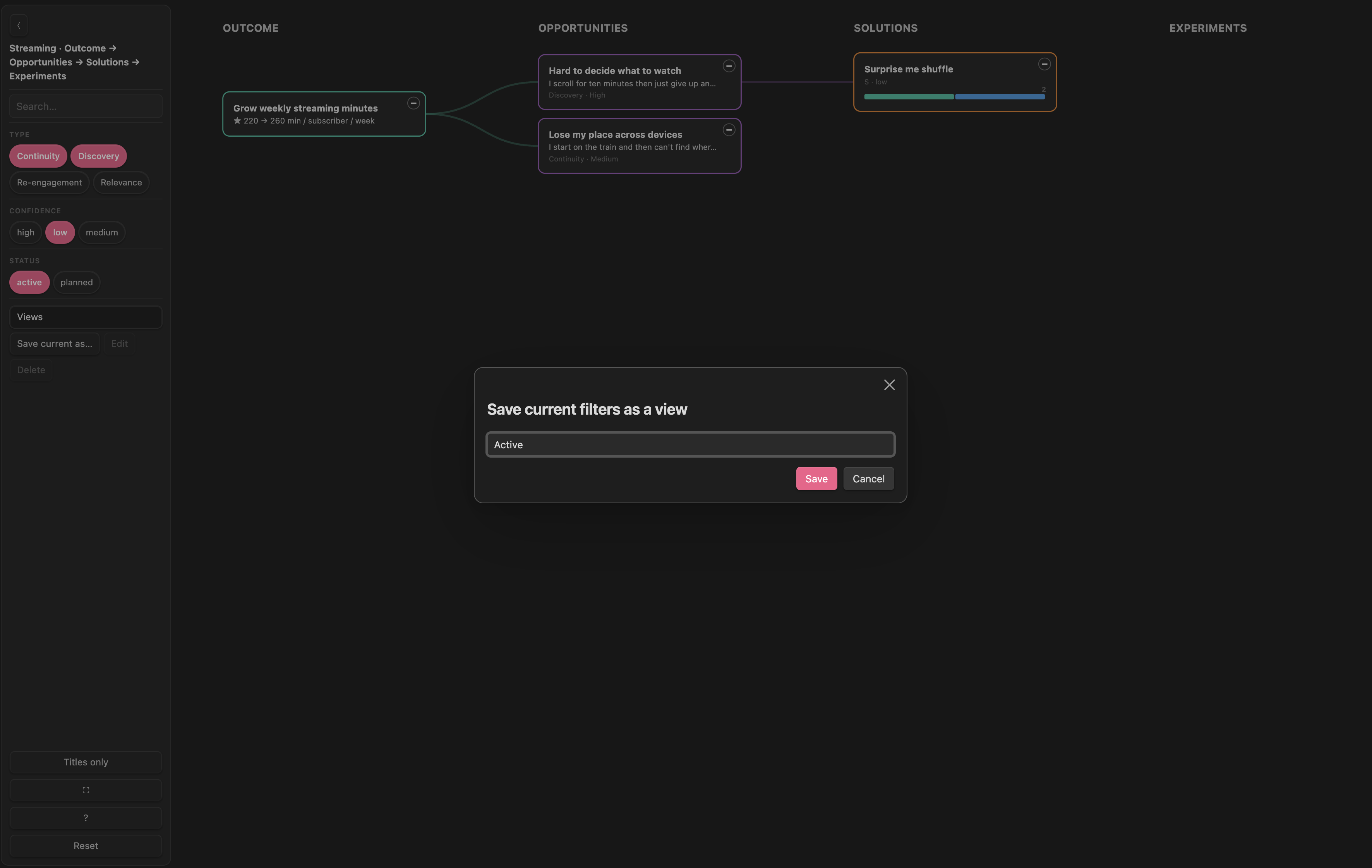

• Saved views — save the current filters and view type under a name, then apply, edit, or delete it from the dropdown. Each view also remembers which subtrees were collapsed. Views are written back into the block's views: key and the selected one into activeView:, so your choice survives a restart.
• Export — write the current view next to the note as a standalone .html file or an editable .excalidraw drawing. Both capture what's on screen: active filters, collapse state, and view type.
• Hover a card — highlight its full up/down lineage, in gantt and kanban as well as the map.

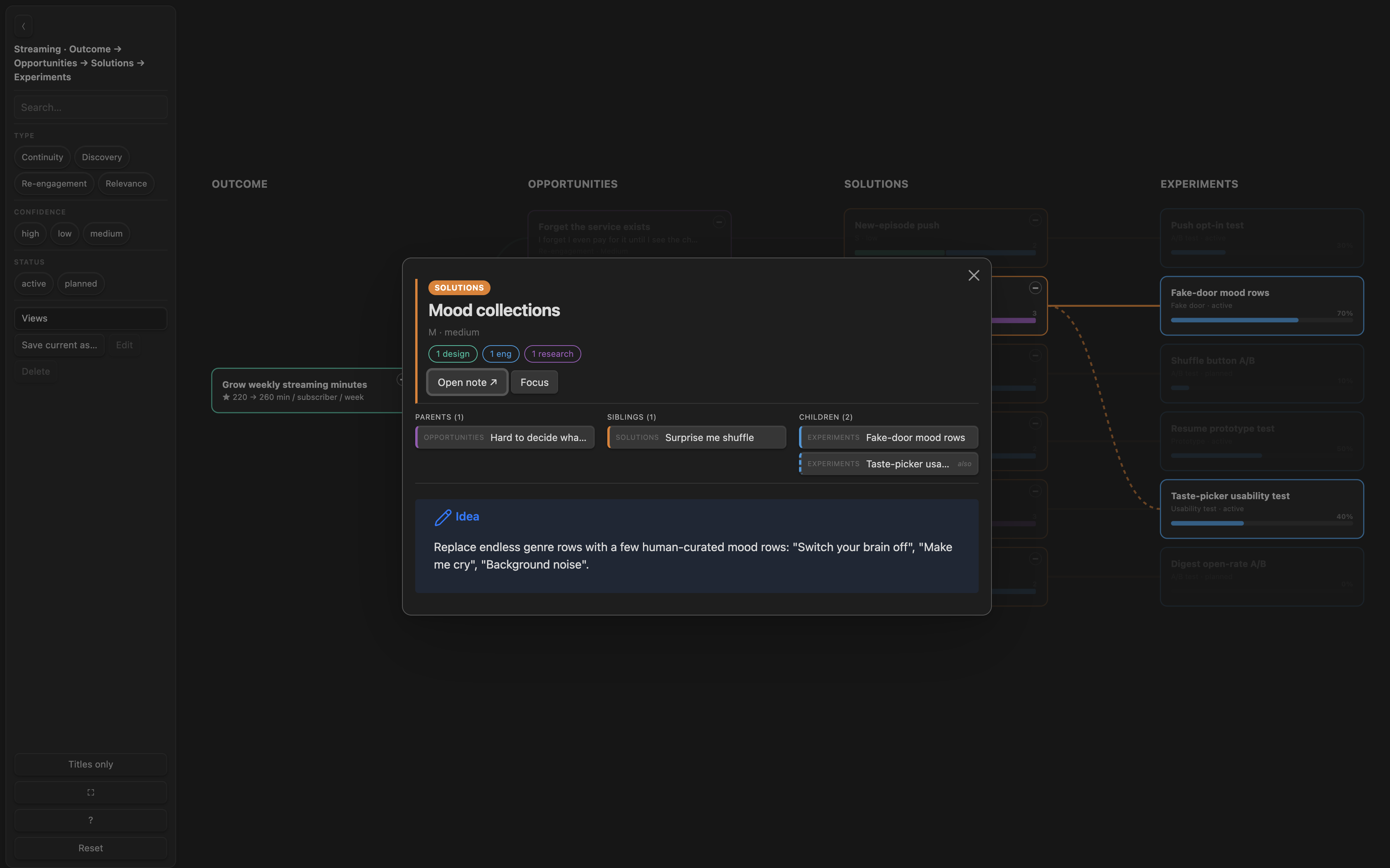

• Click a card — open a dialog with the title and file name, level badge, progress/category breakdown, its linked parents, siblings, and children (click one to jump there), optional frontmatter properties, the rendered note, and Open note / Focus buttons.
• Focus — narrow the map to a node, its ancestors, and its primary descendants. It persists while you pan and click; a Focus: … chip at the top of the rail clears it with ✕.

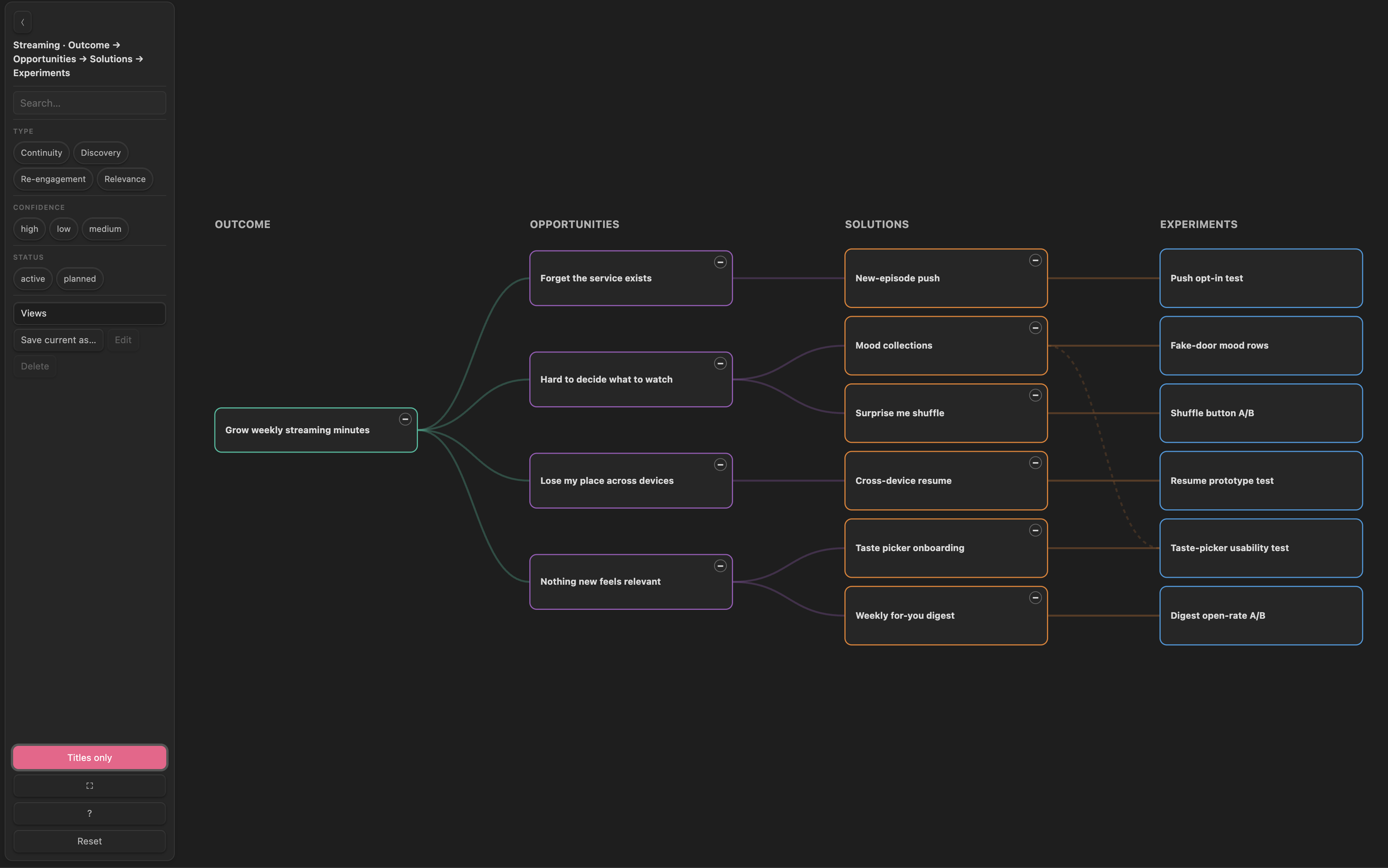

• Titles only — strip cards back to their titles, hiding subtitle, meta, bars, and labels. (Not shown in the gantt, which draws rows rather than cards.)
• + / − on a card, or a gantt row's toggle — collapse or expand that subtree.
• « / ☰ — collapse the whole rail to a single button when it's in the way, and bring it back.
• Refresh — re-read every note's frontmatter and redraw. A map reads the vault once, when the block renders, so edits to the notes it maps (a changed gantt.end, a new status:) don't show until the block re-runs. Your filters, view type, and collapse state carry over; pan/zoom and search do not, and it exits fullscreen.
• Help opens a quick reference · Fullscreen toggles fullscreen · Reset clears filters, search, collapse, focus, and titles-only, returns to the block's default view, and refits.
• Drag to pan, scroll to zoom. Clicking empty space clears the sticky hover highlight.

Configuration reference

mindmap — top level

levels[]

levels[].card

All card field values are frontmatter property names. Dotted paths work everywhere (customFields.serves, nested.key).

bars takes either a field name or a map. bars: demand is shorthand for bars: { field: demand, category: parens }.

edges[]

gantt

kanban

layout

causalmap

Using Project Manager task notes

Task notes written by the Project Manager plugin (pm-task: true frontmatter with status, start, due, progress, priority, assignees, tags, parentId/subtaskIds, customFields.*) render as-is: point a level's from: at your *_tasks folder, add the gantt: and kanban: blocks, and you're done.

Markdown Mindmap never writes task files — edit the note and the view re-renders. Editing, drag-rescheduling, notifications, recurring tasks, and the table view are deliberate non-goals.

VS Code

The same core drives a VS Code extension (src/vscode/). Unlike Obsidian it does not render inline in the editor — you run a command and the map opens in a panel.

To run it from source:

1. Open this repo's folder in VS Code.
2. Press F5 (Run and Debug → Run Extension). It builds, then opens an Extension Development Host window already pointed at examples/.
3. In that window, open a markdown note containing a ```mindmap block (e.g. mindmap-demo/Mindmap demo.md).
4. Command Palette (Cmd/Ctrl+Shift+P) → Markdown Mindmap: Open Map. The graph opens beside the note: drag to pan, scroll to zoom, click a card to open that note.

Some differences from the Obsidian plugin:

• Config comes from the active note's first ```mindmap block (same YAML).
• from: paths are relative to the workspace root, and links resolve by note basename or title frontmatter — there's no vault link index outside Obsidian.
• Visuals follow your VS Code theme (via --vscode-* variables), so the map looks different by design.
• Scope is render + pan/zoom + click-to-open, for whichever view the block's view: key selects. The toolbar, collapse toggles, and the note dialog are Obsidian-only for now.

Limits

• from: is folder-only — no tag or Dataview queries yet.
• Link resolution matches a wikilink, basename, title, or id, not an arbitrary shared field value: a keyword like stage: claims won't auto-link unless a note of that basename/title/id exists.
• Layout centring assumes primary edges connect adjacent levels.
• Gantt has no dependency arrows and no date-range filtering (filters are discrete values). Dates are read, never written — there's no drag-to-reschedule.
• Excalidraw export is lossy by design: rounded boxes, centred labels, straight arrows — no curves, progress bars, label pills, or column headers.
• Causal-map cycle detection is bounded (at most 64 loops, up to 12 nodes long), so a very dense graph reports the first loops found rather than all of them.

Development

npm install
npm run dev     # esbuild watch → main.js (Obsidian) + dist/ (VS Code)
npm run build   # type-check + production build
npm test        # vitest + coverage

Obsidian loads only main.js, manifest.json, and styles.css. For live iteration, symlink this folder into your vault:

ln -s "$(pwd)" "<your-vault>/.obsidian/plugins/markdown-mindmap"

(If you use Obsidian Sync, prefer a Release + BRAT, or commit the built files — Sync can remove a hand-linked plugin folder it doesn't recognize.)

The pure logic lives in src/core/ behind the src/graph.ts barrel, host-free and fully unit-tested; the Obsidian and VS Code adapters wrap it. See AGENTS.md for the architecture and conventions.

License

MIT © Kiko Castro
