Live Image Editor

Non-destructive image editing for Obsidian. Crop, rotate, flip, resize, and apply CSS filters — all live, without modifying the original file.

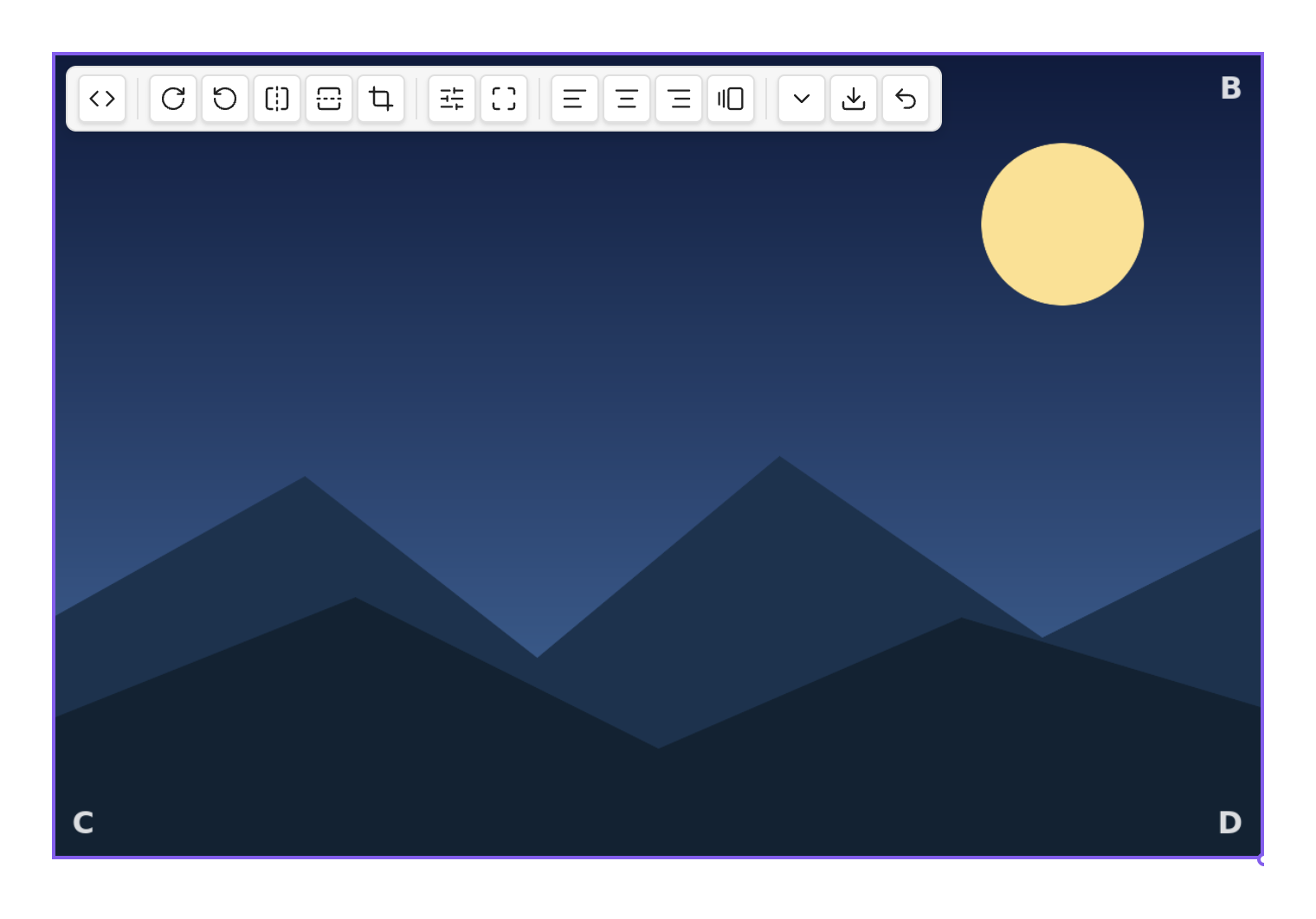

The Live Image Editor hover toolbar on a selected image

Features

  • Toolbar on selection — appears when you click an image, same trigger as Obsidian's native resize handles
  • Crop with free rotation — fixed frame, freely move/rotate/scale the image underneath
  • CSS Filters — brightness, contrast, saturation, hue, blur, grayscale, sepia with a side panel and live histogram
  • Filter Presets — one-click looks (B&W, Vintage, Warm, Cool, Sepia, ...)
  • Resize — scale up/down, custom dimensions, or predefined size classes
  • Flip & Rotate — horizontal/vertical flip, 90° steps or free rotation via crop
  • Inline/Block toggle — switch between text-wrapping and standalone display
  • CSS class management — auto-detects classes from your vault's CSS snippets
  • Export — render all edits to a new image file (original stays untouched)
  • Editing Toolbar integration — optionally registers commands as buttons in Editing Toolbar
  • Multilingual — follows Obsidian's language setting

How it works

Edits are stored as a small, portable attribute block after the image embed — standard Markdown/wiki syntax, never the alt text or the file. The original image is never touched.

![A caption](https://raw.githubusercontent.com/britz/obsidian-live-image-editor/HEAD/photo.png){rotate=90 width=420}
![[photo.png]]{align=left filter="sepia(0.8)"}
![square](https://raw.githubusercontent.com/britz/obsidian-live-image-editor/HEAD/photo.png){transform="translate(-50%,-50%) scale(2)" aspect-ratio=1/1 width=260 .rounded}

The block uses bare keys (align, width, rotate, flip, transform, filter, aspect-ratio, .class) — the same portable format MkDocs-Material / Python-Markdown / Pandoc understand. Open the note without the plugin and the image still shows: align/width carry through any renderer, and the rest fall back to the original, untransformed image. Obsidian's native wiki-link size (![[image.png|300]]) continues to work and is preserved.

Example vault

example-vault/ is a self-contained Obsidian vault that demonstrates every feature on synthetic, committable images (corner labels A/B/C/D + a TOP marker make rotate/flip obvious). To try it:

  1. In Obsidian, Open folder as vault → pick the example-vault/ directory.
  2. Enable Live Image Editor in Settings → Community plugins (install it first if needed — see Installation).
  3. Open 00 — Start here and work through the numbered pages (Rotate & flip, Crop, Size, Filters, Layout, Captions, Classes). Hover an image to reveal the toolbar and edit away.

Two features ship opt-in — turn them on from Settings → Live Image Editor: Show image captions and Install example snippets (the latter is already installed and enabled in this vault).

Documentation

📖 Documentation site — the user guide, the demo vault (with images rendered live by the plugin's runtime) and the design docs, published from docs/ via ProperDocs + MaterialX (the maintained MkDocs / Material forks).

  • User guide — how to use every feature, with screenshots.
  • example-vault/ — a demo vault that shows each feature on real images (open it as a vault with the plugin enabled; start at 00 — Start here).
  • Development docs — the design docs (requirements, architecture, plan, tests, the bug & lesson registry) and the developer workflow: building from source, the dev/debug loop, and previewing this docs site locally.

Installation

  1. Download the latest release from Releases
  2. Extract into your vault's .obsidian/plugins/live-image-editor/ directory
  3. Enable the plugin in Settings > Community Plugins

Development & Release compliance

Building the plugin from source, the watch / dev-install loop, live debugging in Obsidian (CDP), and previewing the docs site locally are all covered in the Development docs — everything builds inside the devcontainer.

Release compliance. Before each community-directory submission the plugin is audited against Obsidian's Developer policies, Plugin guidelines and Submission requirements. All R1–R30 rules are met — the former open items were closed in the v0.4.2 release-compliance pass. The v0.6.x automated review (eslint-plugin-obsidianmd + a CSS scan) is reproduced locally (npm run lint:obsidian / npm run lint:css, separate from the shipped linter — T9) and reports 0 errors; the kept warnings (architecturally-required :has, justified !important, the 1.12.7-floor API deprecations) and the false positives (the dev-only CDP bridge, the standalone runtime bundle) are documented with their rationale there. The full audit + submission checklist live in Release compliance.

File system access & platform support

File system access. Almost everything the plugin does stays inside your vault and is fully non-destructive — the original image file is never modified. The one exception is the Export as image action: on desktop it opens your operating system's native Save dialog, so you can write the rendered (transformed/filtered) copy to any location you choose, including outside the vault. Nothing is written outside the vault without you picking that location in the dialog. On mobile (no native dialog) export falls back to an in-app prompt that writes a copy inside the vault.

Platform support (isDesktopOnly: false). The plugin runs on both desktop and mobile. Two features use Electron/Node APIs that only exist on desktop, and both degrade gracefully on mobile: the export save dialog (mobile writes into the vault instead) and the macOS two-finger trackpad rotate gesture in the crop editor (the on-screen rotate handle is always available as the fallback). The access is dynamic and feature-detected, so core editing — rotate, flip, crop, resize, filters, classes — works on mobile too.

Reporting cross-platform issues. Development and testing happen on macOS, so that's the best-exercised platform; Windows, Linux, iOS and iPadOS should work but see less testing. If something misbehaves on a non-macOS system — especially native-OS behaviour such as the crop trackpad rotate gesture or the save dialog / file menu — please open a GitHub issue with screenshots; platform-specific problems are far easier to pin down that way.

License

MIT
