drawio-view

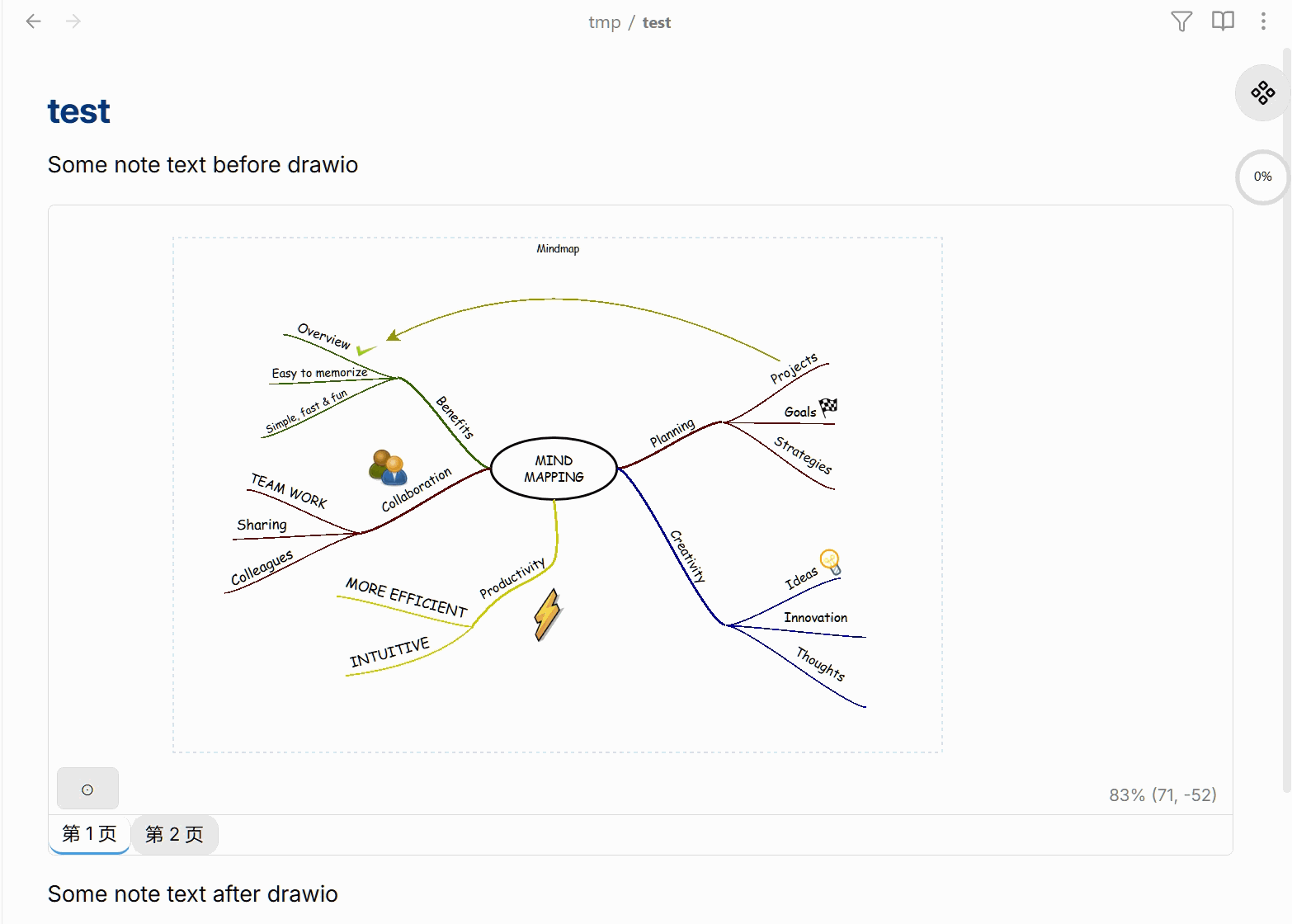

Renders draw.io .drawio diagrams inline inside Obsidian notes. Powered by @maxgraph/core — the TypeScript successor to the mxGraph library that draw.io is built on.

Usage

Place your .drawio file anywhere in the vault, then embed it with a fenced code block:

```drawio-view
my-diagram.drawio
```

The viewer supports optional parameters separated by |:

```drawio-view
my-diagram.drawio|<page>|<height>|<zoom>|<offset>
```

Parameters

Parameter	Format	Example	Description
Page	page name or `page-N`	`my_page` or `page-2`	Which page to show. Default: first page.
Height	`Npx`	`600px`	Viewer height. Default: 400 px.
Zoom	`N%`	`80%`	Initial zoom level. Default: auto-fit.
Offset	`(X, Y)`	`(190, 34)`	Initial pan offset (display pixels). Default: centred.

Parameters can appear in any order and all are optional:

```drawio-view
skb.drawio
```

```drawio-view
skb.drawio|my_page
```

```drawio-view
skb.drawio|page-2|600px|120%
```

```drawio-view
skb.drawio|my_page|80%|(190, 34)
```

Controls

Action	Result
Scroll wheel	Zoom in / out towards the cursor
Left-click drag	Pan the diagram
Double-click	Reset to the initial view (parameters or auto-fit)
Drag bottom edge	Resize the viewer height (written back automatically)
⊙ button (bottom-left)	Write the current page / zoom / offset back into the code block
Tab bar (bottom, multi-page only)	Switch between diagram pages

The ⊙ button is the easiest way to set default parameters: pan and zoom to the view you want, then click ⊙. The code block in your note is updated in-place with the current values, so that view is restored on the next open.

Pan and zoom are GPU-composited and committed to the renderer only when you stop interacting, so they stay smooth even with large diagrams in heavily-loaded vaults. The current zoom and offset are always shown in the bottom-right corner.

The plugin never stores view state between sessions — every open starts from the parameters in the code block (or auto-fit if none are given).

Settings

Setting	Options	Description
Zoom modifier key	Scroll wheel / Ctrl + scroll wheel	How the scroll wheel zooms. Choose Ctrl + scroll wheel so plain scrolling moves through the note instead of zooming the diagram under the cursor.

Installation

Manual

Download main.js, manifest.json, and styles.css from the latest release.
Copy them to <vault>/.obsidian/plugins/drawio-view/.
In Obsidian: Settings → Community plugins → Reload plugins, then enable Draw.io View.

BRAT (beta)

Add SdKay/obsidian-drawio-view via BRAT.

Known limitations

Third-party shape libraries

Shapes from draw.io's extended libraries (IBM, AWS, GCP, Azure, Cisco, etc.) use custom SVG stencils not bundled with this plugin. They fall back to plain rectangles with their label text intact. Core mxGraph shapes (swimlanes, basic geometry, UML, flowchart) render correctly.

Diagonal edges at non-integer zoom levels

Orthogonal edges can appear slightly diagonal at certain zoom percentages due to floating-point coordinate rounding. The shape-rendering: crispEdges CSS property mitigates most cases but does not eliminate the issue entirely. Cosmetic only.

draw.io-specific table shapes

shape=table, shape=tableRow, and shape=partialRectangle render as plain rectangles; labels and layout are preserved.

No wiki-embed support

![[file.drawio]] inline embed syntax is not supported. Use the code block syntax instead.

Building from source

git clone https://github.com/SdKay/obsidian-drawio-view.git
cd obsidian-drawio-view
npm install
npm run build   # produces main.js
npm run dev     # watch mode

Requires Node.js 18+.
