Base Graph

Base Graph

Adds a Graph view to Obsidian Bases. The notes a base returns are drawn as a force-directed graph, like the core graph view.

• Filters: use the normal Bases toolbar to add, edit and remove filters. The graph updates as you change them.
• Depth: like the local graph, also show notes up to n links away from the base's results. Choose whether to follow links, backlinks or both.
• Groups: if the base is grouped, each group gets its own colour and appears in the legend. When grouped by a list property, each item in the list is its own group, and a note with several items is split equally between their colours.
• Link properties: draw only the links in chosen properties, such as parent or blocks, to graph relationships like an org chart or task dependencies. Each property's links get their own colour.
• Layouts: a free force-directed layout, rings by link distance from the base's results, or layers for hierarchies such as parent links, running top to bottom, bottom to top, or sideways.
• Clusters: optionally pull notes that share a property value together, separately from how they're coloured.
• Embeds: works anywhere a base does, including ![[Projects.base#Graph]] and inline base code blocks.

Requires Obsidian 1.10.2 or later with the Bases core plugin turned on.

Usage

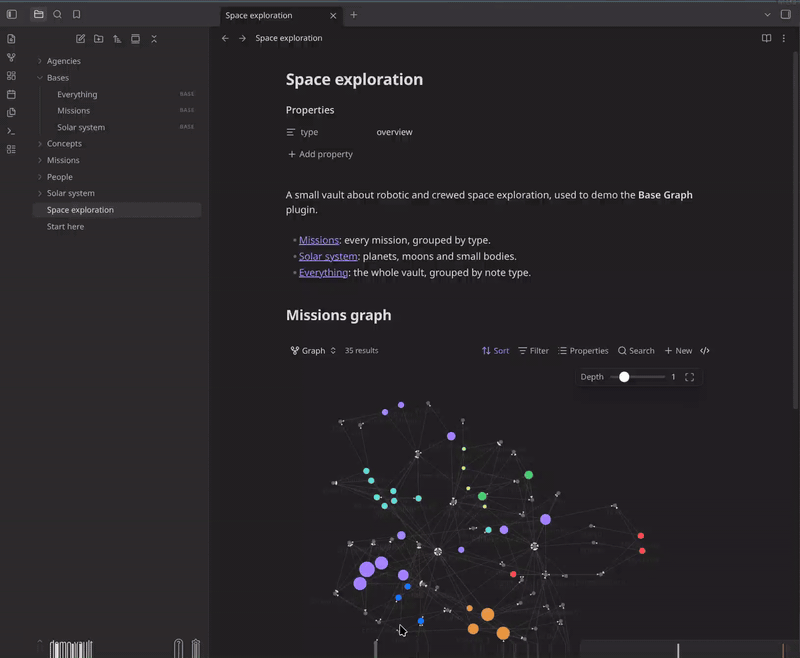

1. Open a .base file. In the view switcher, select Add view, then choose Graph.
2. Set up filters from the toolbar as you would for a table.
3. Drag the Depth slider in the top right to include linked notes. They take the colour of their group but are drawn faded, so you can tell them apart from notes the base matched.

Using the graph:

• Select a node to open it. Hold Ctrl/Cmd to open it in a new tab.
• Drag nodes to move them. Scroll to zoom, and drag the background to pan.
• Hover a node to see the properties chosen in the toolbar's Properties menu, rendered as they are in a table. Empty values are left out. Move onto the card to select its links.
• Select the pin on the card, or Pin highlight in the node's menu, to keep that note and its links highlighted. Select an empty part of the graph to unpin it.
• Hover with Ctrl/Cmd held for a page preview.
• Right-click a node for the file menu.
• Hover an item in the legend to highlight that group's notes or that link property's links. Select it to keep the highlight, and select it again to clear it. Hold Ctrl (Cmd on macOS) while selecting to highlight several items at once.

View options

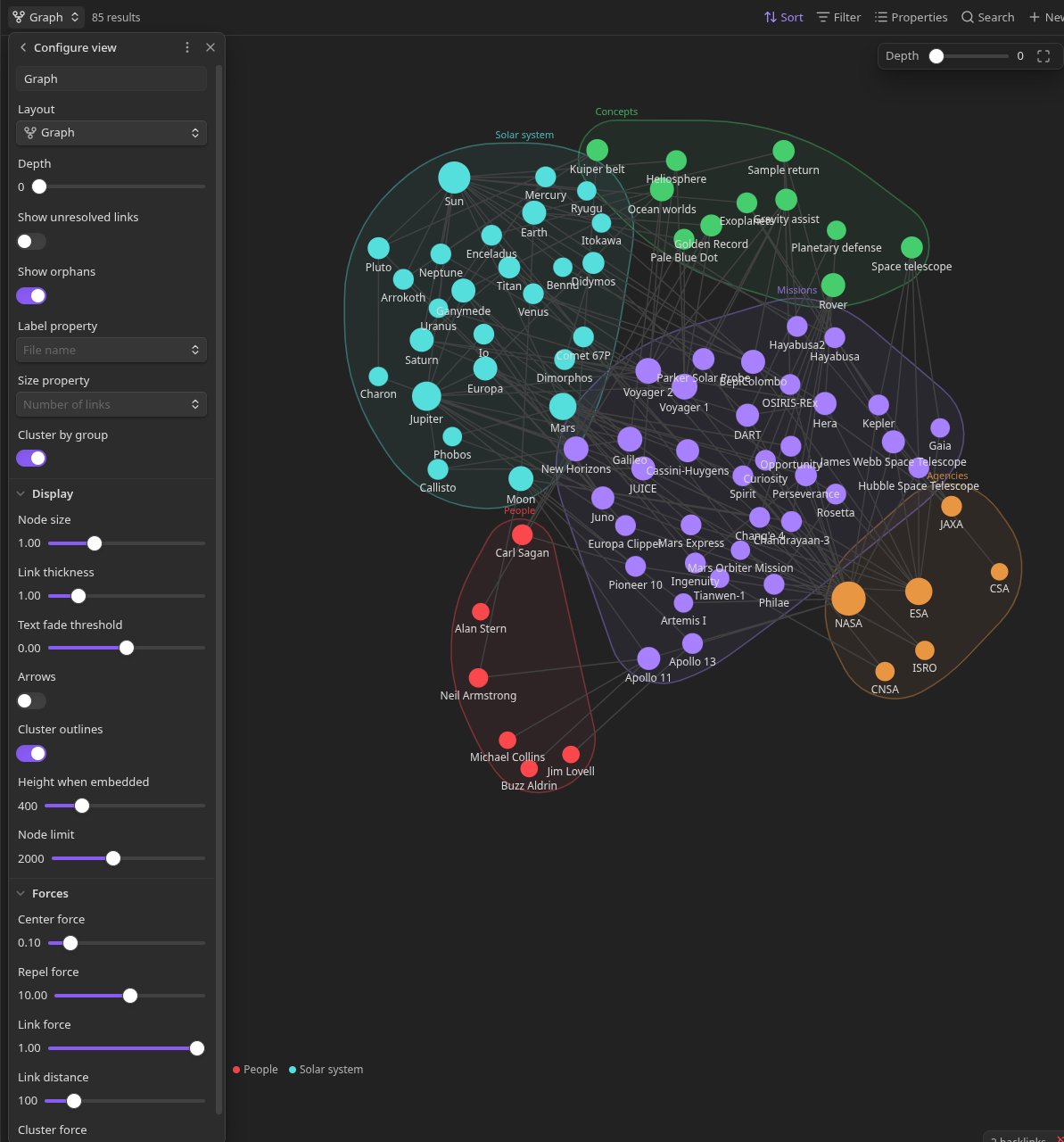

These are under the view's settings in the Bases toolbar and are saved in the .base file.

Layered layout

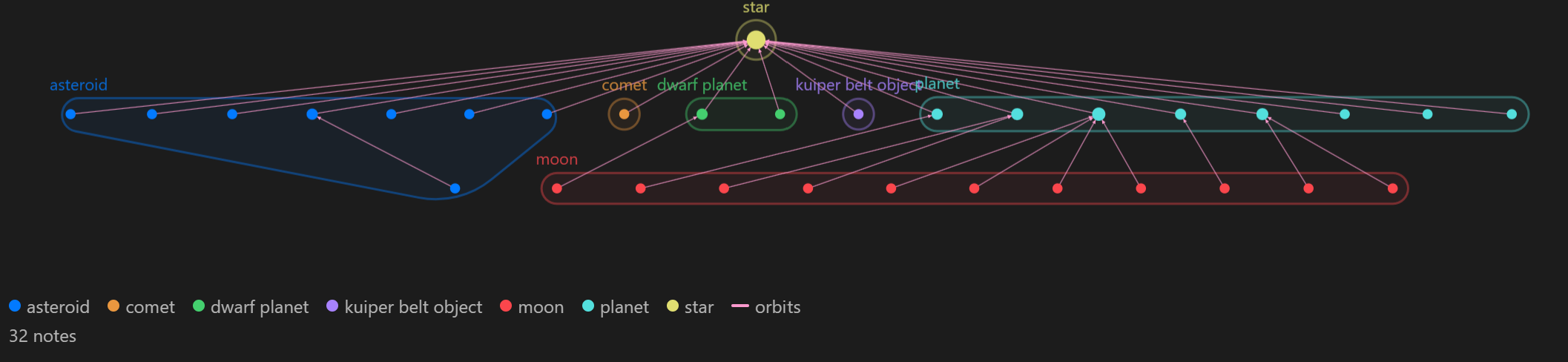

Layered suits links that only go one way, such as a parent property, task dependencies, or moons that orbit planets that orbit the Sun. Notes that don't link to anything are in the first layer, the notes linking to them are in the next layer, and so on. With Direction set to Top to bottom, the first layer is the top row. Linked notes are lined up with each other, and with clustering on, each cluster's notes stay together in every layer. When two notes link to each other through the same property, that link is ignored when placing them. When properties disagree, such as blocked_by and blocks between the same notes, the property listed first in Link properties decides, and other links come last.

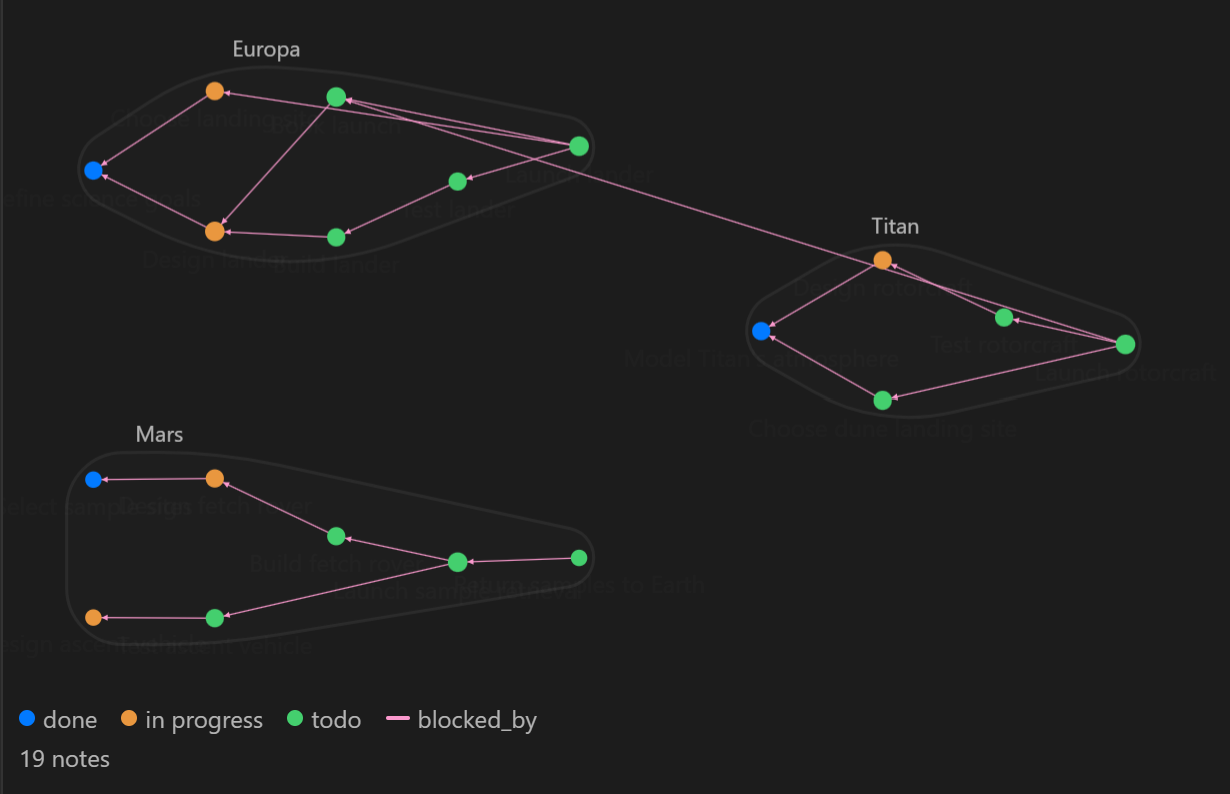

Turn on Lay out clusters separately to lay out each cluster as its own small graph instead, from only the links inside it, with the clusters packed into rows to fit the view. Links between clusters are still drawn, but don't affect where notes go.

Embedding

Embed a view from a .base file:

![[Projects.base#Graph]]

Or define the base inline. Filters can refer to the note it's embedded in with this. For example, this shows the notes linking to the current note and everything linked to them:

```base
filters:
  and:
    - file.hasLink(this.file)
views:
  - type: base-graph
    name: Linked notes
    depth: 1
    height: 500
```

Development

npm install
npm run dev     # watch build
npm run build   # production build
npm run lint

To test, copy main.js, manifest.json and styles.css to <Vault>/.obsidian/plugins/base-graph/, reload Obsidian, and turn on Base Graph in Settings → Community plugins.

Layout

src/
  main.ts                 Registers the Bases view and hover source
  constants.ts
  graph/
    linkIndex.ts          All links, plus a lazily built backlink index
    propertyLinks.ts      Only the links in chosen properties, from frontmatter links
    buildGraph.ts         Base results → nodes and links, with depth expansion
    types.ts
  view/
    GraphBasesView.ts     The BasesView: rebuilds on data and link changes, opens files
    options.ts            View options and reading them from the view config
    clusters.ts           Assigns clusters from the base's groups or a property
    controls.ts           Depth slider, fit button, status line and legend
    entries.ts            Looks up entries, creating them for linked notes outside the base
    groups.ts             Maps notes, including linked ones, to the base's groups, splitting lists
    propertyCard.ts       Hover card listing the view's selected properties, with a pin button
  render/
    renderer.ts           d3-force simulation, zoom/pan, dragging, hit testing
    clusterForce.ts       Forces pulling each cluster together and keeping other notes out of it
    clusterShapes.ts      Cluster outlines, backgrounds and labels
    rings.ts              Ring sizes for the rings by depth layout
    layers.ts             Layers, and the order within them, for the layered layout
    layered.ts            Positions for the layered layout, packing clusters laid out separately
    layerForces.ts        Forces holding notes in their layers and lining up linked notes
    hull.ts               Convex hulls and rounded outlines for cluster shapes
    draw.ts               Canvas drawing
    theme.ts              Reads graph colours from the current theme
