Archify HTML Preview

Click an Archify diagram thumbnail in your notes and explore its self-contained interactive HTML — theme toggle, pan/zoom, node search, route tracing, and Presentation mode all work — without leaving the app.

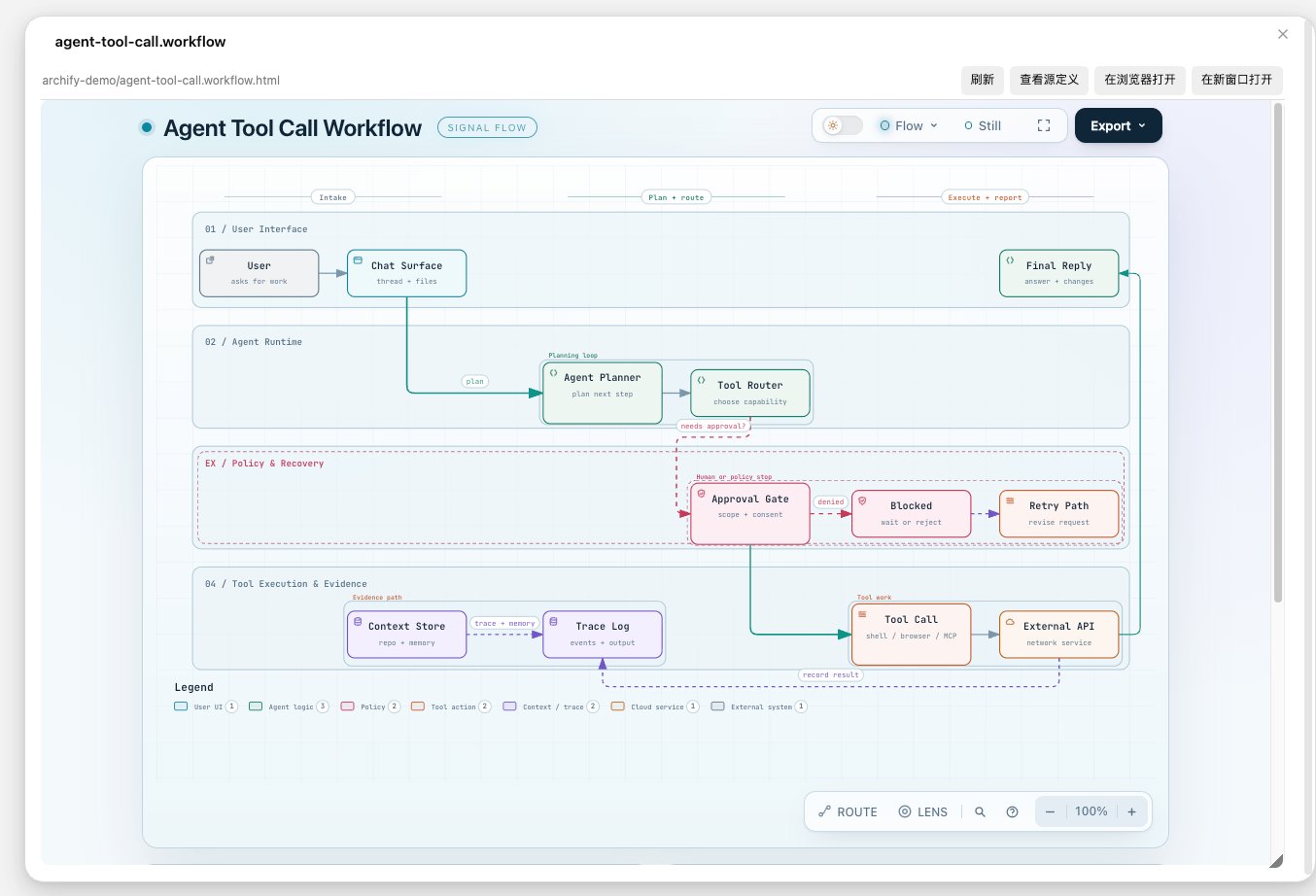

Archify diagram previewed inside Obsidian

Why this exists

Archify emits its diagrams as a set of artifacts, referenced from Markdown like this:

[![System architecture](https://raw.githubusercontent.com/charonwwang/obsidian-archify-preview/HEAD/diagrams/system-architecture.visual-check.1440x900.light.png)](diagrams/system-architecture.html)

This "image wrapped in a link" syntax is valid CommonMark, and most Markdown previews render the thumbnail and open the linked HTML interactively. In Obsidian, however, the chain breaks in four places: relative paths resolve differently, .html files are not recognized by default, there is no built-in HTML renderer, and a plain iframe cannot load local files.

This plugin bridges exactly those gaps: it fixes up the thumbnail, detects Archify-style links, and opens the linked HTML in a sandboxed in-app preview.

Features

Card detection — recognizes [![thumbnail](https://raw.githubusercontent.com/charonwwang/obsidian-archify-preview/HEAD/x.png)](x.html) links, including Archify's naming heuristic (*.visual-check.<W>x<H>.<theme>.png with a sibling source definition — <name>.json, candidate.json, or the legacy <name>.archify.json), and shows an "Interactive" badge on hover.
Broken-thumbnail repair — re-resolves image paths using "relative to the note" semantics, so thumbnails render even when the Markdown uses GitHub-style relative paths.
One-click interactive preview — open in a new tab (default), a modal, or expand inline beneath the thumbnail.
Source definition link — the preview toolbar offers "Source definition" to open the sibling source definition (<name>.json, candidate.json, or the legacy <name>.archify.json).
Sandboxed by default — runs in sandbox="allow-scripts" (opaque origin), so a diagram can never touch your vault files.
Desktop and mobile — uses Blob URLs rather than file://, so behavior is identical everywhere (isDesktopOnly: false).

Compatible with Archify 2.x and 3.x output bundles (verified against 3.1 artifacts); already generated HTML keeps its embedded viewer.

Demo

See demo/agent-tool-call.workflow.md for a working example of the Archify reference format, with a real Archify 3.1 interactive diagram (agent-tool-call.workflow.html) and its typed source definition (agent-tool-call.workflow.json).

Usage

No changes to your notes are required. Any "thumbnail linking an .html file" (the standard Archify output format) is enhanced automatically:

[![System architecture](https://raw.githubusercontent.com/charonwwang/obsidian-archify-preview/HEAD/architecture/diagrams/system-architecture.visual-check.1440x900.light.png)](architecture/diagrams/system-architecture.html)

Click the thumbnail to open the interactive version inside the app. There is also a command: Open active HTML file in the interactive preview.

Installation

Requires Obsidian 1.4.0 or newer.

From a release

Download main.js, manifest.json, and styles.css from the latest release into <vault>/.obsidian/plugins/archify-html-preview/, then enable the plugin in Settings → Community plugins.

From source

npm install
npm run build

Copy main.js, manifest.json, styles.css into <vault>/.obsidian/plugins/archify-html-preview/. For development, npm run dev watches and rebuilds on change — pair it with the third-party Hot-Reload plugin for auto-reload.

Settings

Setting	Default	Description
Click behavior	New tab	New tab / Modal / Inline expand

There are three surfaces, each with only the actions that make sense for it:

Surface	Toolbar (right-aligned)	Notes
New tab	Refresh · Source definition · Open in browser · Open in new window	full-size view
Modal	Refresh · Source definition · Open in browser · Open in new window	draggable by its title, resizable from the corner, closed with the built-in button (no pop-out button — it is already a modal)
Inline expand	Source definition · Open in browser · Open in new window · Collapse	height adjustable by dragging the bottom grip (remembered)

Buttons are right-aligned and use Obsidian's native control styling. Ctrl/Cmd + click always opens a new tab, whatever the mode.

Setting	Default	Meaning
Take over `.html` files	Off	When on, double-clicking an `.html` file also opens the interactive preview (reload the plugin after changing). Mutually exclusive with HTML Viewer / Polyglot Renderer-style plugins
Allow same-origin	Off	Lets previewed pages use `localStorage`, at the cost of the opaque-origin isolation
Inline height	560px	iframe height for inline mode (drag the bottom grip to adjust; it is remembered)

Everything an interactive artifact normally needs works in the preview:

Export (PNG / SVG / WebM via canvas.toBlob / MediaRecorder + <a download>) — sandbox grants allow-downloads
Dialogs and forms — popups, print / confirm dialogs and form inputs (copy-link fields) are allowed
Copy link — navigator.clipboard does not exist in an opaque origin, so the preview injects a runtime shim that forwards text to the plugin frame via postMessage, where the clipboard really works
State persistence — localStorage throws in an opaque origin; the shim backs it with an in-memory store so theme and view state keep working

Open in browser hands the file to a real browser. It tries, in order: spawning a known browser executable directly (Edge / Chrome / Firefox, then the OS opener), Obsidian's openWithDefaultApp, Electron's shell.openPath / shell.openExternal (each raced against a 1.2 s timeout so a stalled bridge cannot swallow the action), and finally the app:// resource URL. Success is silent; only a total failure reports — and then it copies the absolute path so you can paste it into the address bar.

Open in new window pops the preview into a detached OS window owned by the app, without touching the OS shell or any file association.

Custom styling

All surfaces expose stable CSS hooks for user snippets (.obsidian/snippets/*.css): .archify-linked-html, .archify-badge, .archify-inline-wrap, .archify-inline-grip, .archify-preview-view, .archify-toolbar, .archify-preview-modal, .archify-frame-box, .archify-float, .archify-float-header, .archify-float-title. All colors go through Obsidian theme variables, so light/dark themes follow automatically.

Known limitations

Enhanced cards (badge / inline expand) apply in Reading view and hover previews; in Live Preview, clicking relies on the "Take over .html files" setting.
With the default opaque-origin sandbox, localStorage/sessionStorage are unavailable inside the preview (inherent browser behavior). Archify artifacts are self-contained so this rarely matters; enable "Allow same-origin" if a diagram needs storage.
Source definitions are plain .json files (<name>.<type>.json, candidate.json, or the legacy <name>.archify.json), so they cannot be registered as their own file type (extension registration only looks at the last segment) — only the "Source definition" shortcut is provided.

Localization

The settings UI, commands, badges and notices follow the app's interface language automatically. Currently included: English, 简体中文, 繁體中文, 日本語. The full documentation is also available in 简体中文. Contributions for other languages are welcome — add a dictionary in src/i18n.ts and register it in the STRINGS map.

Project structure

├── src/
│   ├── main.ts        # plugin entry: registration, markdown enhancement, click routing
│   ├── resolve.ts     # path resolution + Archify metadata parsing
│   ├── settings.ts    # settings interface, defaults, settings tab
│   ├── view.ts        # sandboxed iframe, ItemView, Modal, inline child
│   └── i18n.ts        # localization (en / zh / zh-TW / ja)
├── demo/              # sample note + interactive HTML + source definition
├── esbuild.config.mjs
├── manifest.json
├── styles.css
└── versions.json

Releasing (community plugin submission)

Bump version in manifest.json and mirror it in versions.json ({"<version>": "<minAppVersion>"}).
Push a tag named exactly the version (no v prefix) — the bundled GitHub Actions workflow builds and attaches main.js, manifest.json, styles.css to the release.
Open a PR against obsidian-releases adding this repo to community-plugins.json, following the Plugin guidelines.

Credits

Archify by tt-a1i — the agent skill that produces these interactive architecture diagrams.

License

MIT
