Obsidian Stats logoObsidian Stats

ANSI Viewer

by Adam Jacobson
5
4
3
2
1
Score: 50/100
New Plugin
Install Code

Description

Support for ANSI escape sequences in Obsidian Notes code blocks

Reviews

No reviews yet.

Stats

0
stars
downloads
0
forks
0
days
0
days
0
days
0
total PRs
0
open PRs
0
closed PRs
0
merged PRs
0
total issues
0
open issues
0
closed issues
24
commits

Latest Version

1.0.1
4 hours ago

Changelog

First release of MVP functionality

Second attempt at submission to Obsidian.

  • Render ANSI formatted text in codeblocks with ansi keyword
  • Support code block level styles with keywords dark, light and theme
  • Can set a global style to be used when keyword missing
  • Support code block level escape sequence converstion with keywords esc_string and esc_real
  • Can set a global escape sequence conversation rule when keyword is missing
  • Support dealing with iTerm2s quirky codes for multi-bit color and bright background colors
  • Can set a global behavior of how to deal with multiline styles
  • Configurable dark and light mode with custom colors and brightness offsets-
See all version on GitHub

README file from

Github

Obsidian ANSI Viewer

Render ANSI-formatted terminal output in code blocks.

This allows for color coded text taken directly from terminal outputs. I created this plugin specifically so that I could copy terminal output from iTerm2 and save it into my notes.

If you are using iTerm2, highlight the desired text and use the option Copy with Control Sequences. Paste the result in the code block.

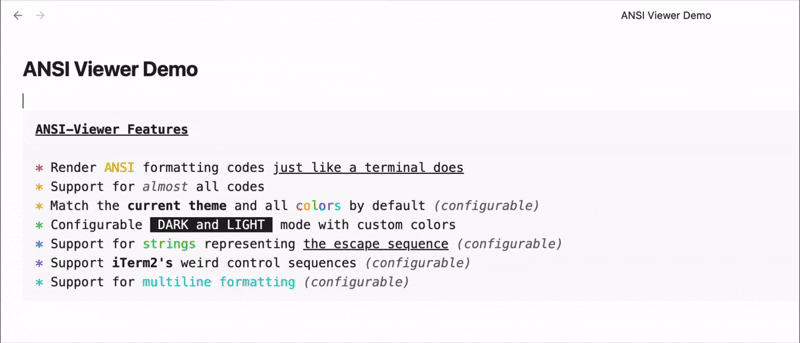

Gif of features being demonstrated

Features

  • Render ANSI formatting codes just like a terminal does
  • Support for almost all codes
  • Match the current theme and all colors by default (configurable)
  • Configurable dark and light mode with custom colors
  • Support for strings representing the escape sequence (configurable)
  • Support iTerm2's weird control sequences (configurable)
  • Support for multiline formatting (configurable)

Usage

Simply create a code block with the word "ansi" and paste in your code.

NOTE: Actual escape sequences may not be rendered in Obsidian.

```ansi
\x1b[0;33mYELLOW\x1b[0m \x1b[0;31mRED\x1b[0m\x1b[0m
\x1b[0;32mGREEN\x1b[0m \x1b[0;35mMAGENTA\x1b[0m

Text with no formatting.

\x1b[0;32mLorem ipsum \x1b[0;33mdolor sit amet, \x1b[0;34mconsectetur adipiscing elit...\x1b[0m
```

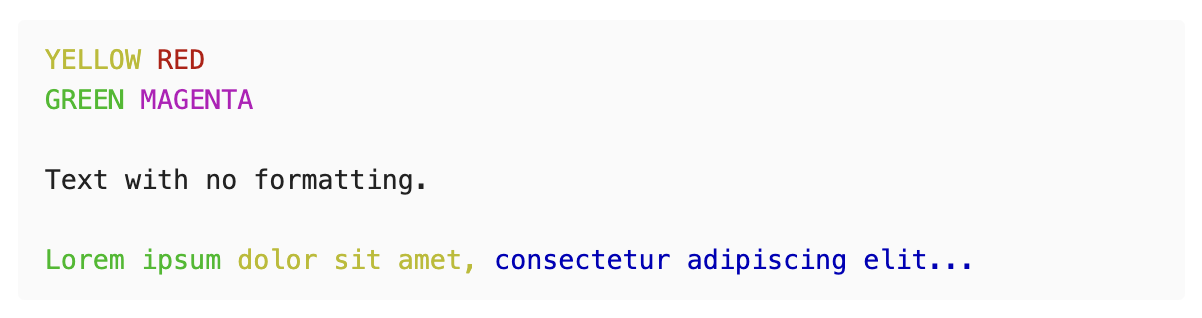

Code block with Obsidian default theme in light mode

Literal Escape Codes

By default, both real escape sequences and those represented by strings will be used to evaluate the codes. This behavior is controlled by the Convert string escape sequences to literal escape sequences setting.

You can set this behavior per block using the keywords esc_real to consider only actual escape sequences or esc_string to consider strings such as "\x1b", "\e" or "\033" as escape sequences.

Themes

The Default theme setting controls how ansi code blocks are displayed globally. Choose "Current theme" to match the active Obsidian theme (default), or "Custom dark theme" / "Custom light theme" to use the plugin's customizable colors everywhere.

The "Current Theme" option will have code blocks match, not only the current theme, but Obsidians dark/light mode.

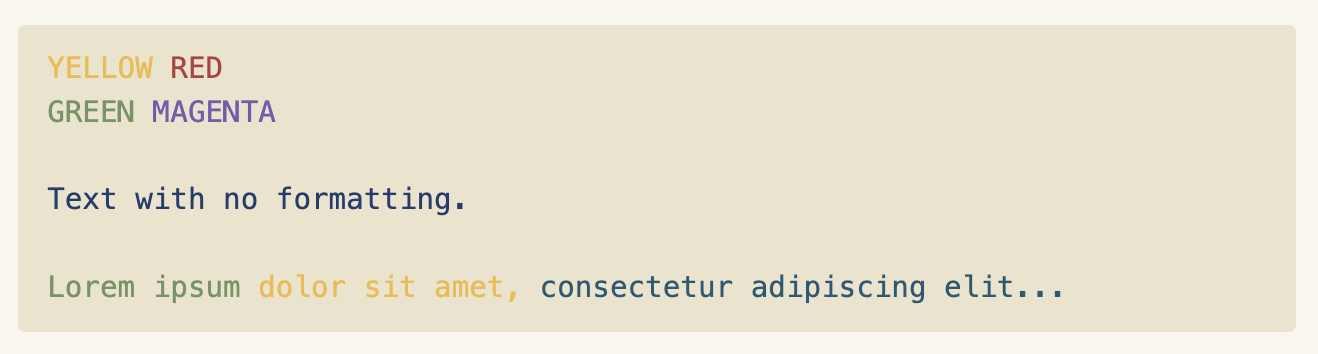

Code block with the RetroNotes theme and Obsidian in light mode

Code block with the RetroNotes theme and Obsidian in light mode

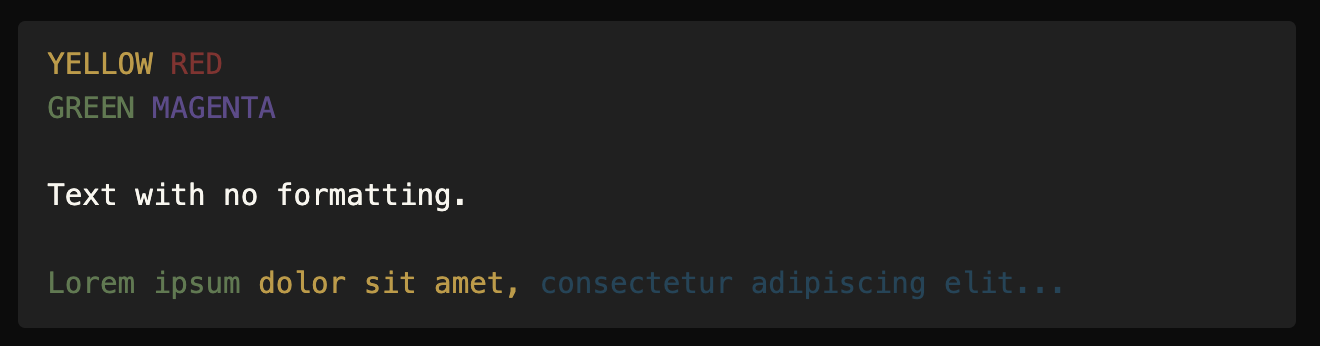

Code block with the RetroNotes theme and Obsidian in dark mode

Code block with the RetroNotes theme and Obsidian in dark mode

You can override the global theme setting on a per-block basis adding the right keyword after ansi:

  • theme -> Match Obsidians current theme and dark/light mode
  • dark -> Use the plugin's customizable dark theme
  • light -> Use the plugin's customizable light theme

Code block using dark keyword with Obsidians default theme in light mode

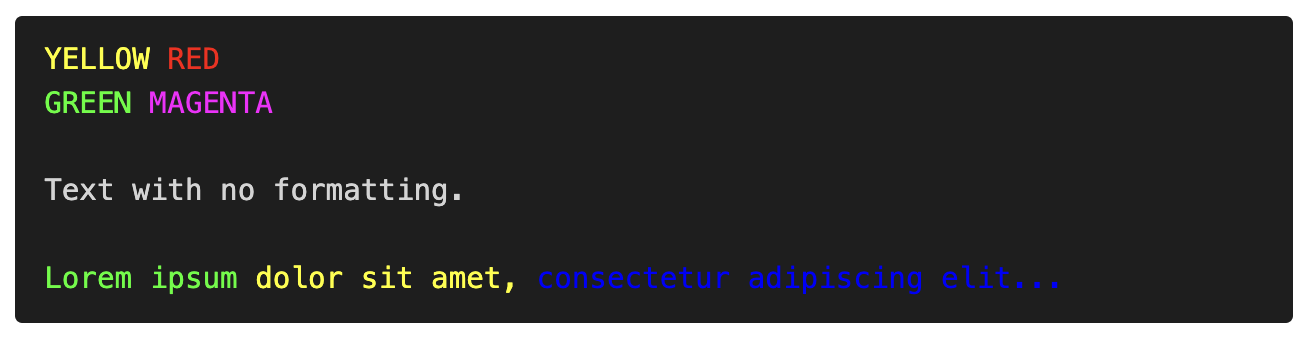

basic examples

Important Caveats

  • iTerm2 has an unusual way of formatting certain sequences. This plugin can account for them but those codes may not behave the same if pasted into a different terminal. You can disable this behavior by toggling the option "Correct iTerm2 formatting" (enabled by default).

  • iTerm2 also offsets codes used for bright background colors by +8. The option "Correct iTerm2 formatting" will also correct for this.

  • Strikethrough text and blinking text are not supported. This is a limitation of ansi_up, a dependency this plugin uses.
