English | 简体中文

LaTeX-like numbering, cross-references, figures, tables, and local PDF export for Obsidian.

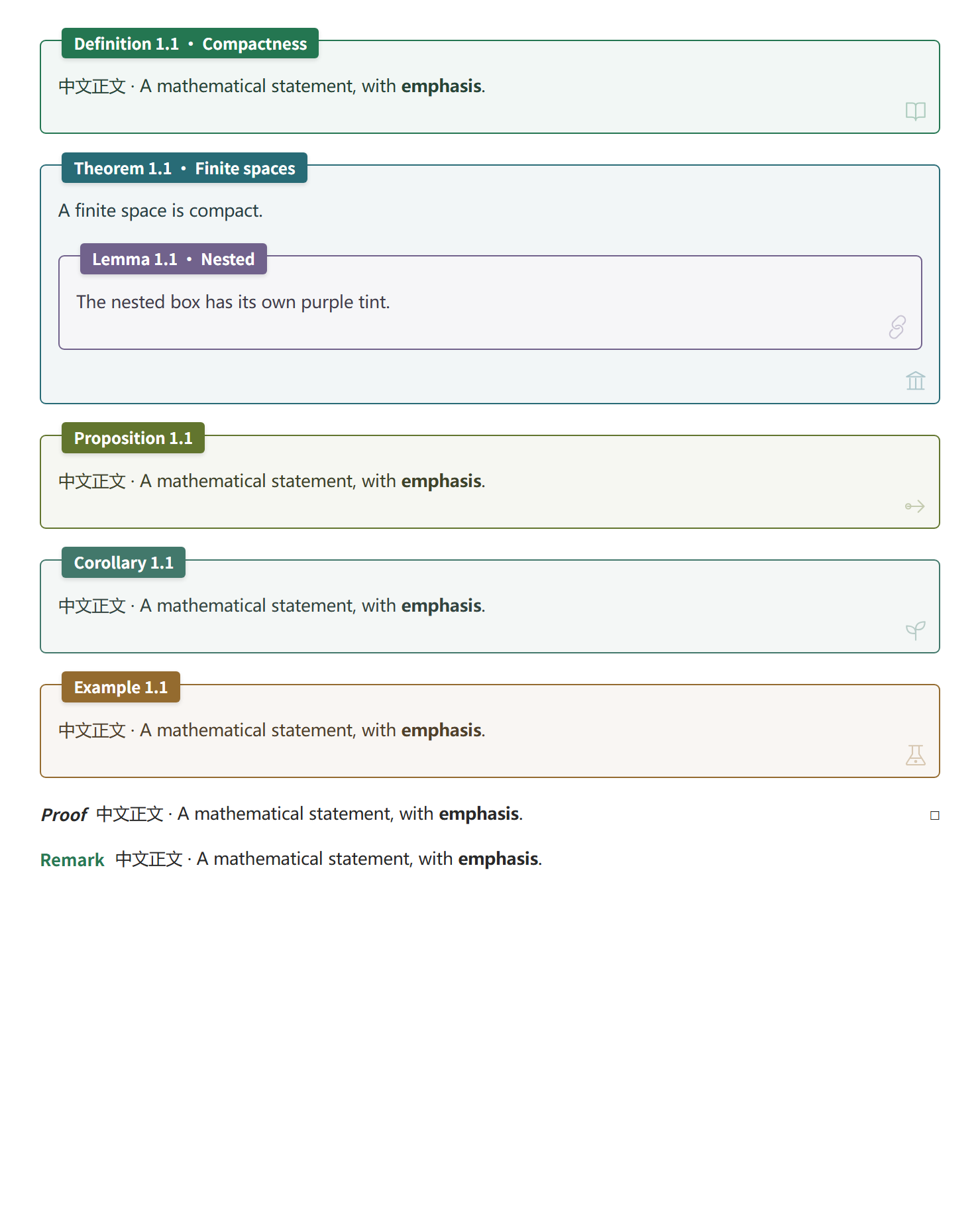

The mathematical environments are visually inspired by ElegantBook: framed theorems, simple proofs with an end-of-proof square, and remarks with an inline colored title. Colors follow the selected Academic Notes palette.

Features

• Number theorems, definitions, lemmas, equations, figures, tables, and subfigures automatically or manually.
• Reference blocks across notes, with reference suggestions and an option to number only referenced equations.
• Choose light and dark color palettes, style nested callouts, and use three-line tables.
• Write borderless proofs with an automatic QED square and remarks with a palette-matched title.
• Draw commutative diagrams with a local grid editor (Beta), or use the optional TikZJax integration.
• Add clickable tables of contents, PDF bookmarks, and measured PDF page numbers.
• Export a single note or a multi-note book to PDF or HTML without modifying the source notes.
• Optionally use Knuth–Plass paragraph line breaking in Reading view, inactive Live Preview prose, and desktop PDF exports (Beta).
• Optionally reduce PDF page gaps with selectable 80% shrinking and safe paragraph movement (experimental).
• Process notes locally, without telemetry, an account, or a separately installed export engine.

Installation

Requires Obsidian 1.9.0 or later on desktop or mobile. Install Academic Notes from Community plugins when it is listed for your device, or download main.js, manifest.json, and styles.css from the latest release and place them in your vault:

.obsidian/plugins/academic-notes/
├─ main.js
├─ manifest.json
└─ styles.css

Enable Academic Notes under Settings → Community plugins. Figure and table styles are included; no CSS snippet is required. The same plugin runs on iPad and desktop. On mobile, numbering, cross-file references, the table of contents, academic environments, settings and HTML snapshot commands remain available. PDF export and its commands run only on desktop, using Obsidian's bundled Electron; no Python or separate Chrome installation is needed.

Interface language

The interface follows Obsidian → Settings → General → Language automatically. Chinese locales use Simplified Chinese; English and other languages use English. Restart Obsidian after changing its language. Settings, dropdowns, commands, dialogs, diagnostics and export messages are translated. Your note text, custom titles, reference syntax and saved settings are preserved.

For standalone table and caption styling without automatic numbering, copy academic-layout.css into .obsidian/snippets/ and enable it under Appearance. Avoid enabling duplicate styles alongside the plugin.

Quick start: theorems and references

## Continuous maps

> [!def] Continuity
> A map is continuous if the inverse image of every open set is open.

^def-continuity

> [!thm] Composition
> The composition of two continuous maps is continuous.

^thm-composition

Use [[#^def-continuity]] to prove [[#^thm-composition]].

> [!proof]
> Take inverse images successively.

By default, these display as Definition 1.1 · Continuity and Theorem 1.1 · Composition. References display def 1.1 and thm 1.1 and navigate to their targets. Each environment type has its own counter unless shared counters are enabled.

Use > [!thm]- Title for an initially collapsed callout, or > [!thm]+ Title for an expanded one. Add another > for each nesting level. Export expands collapsed content.

• Manual number: > [!thm|A.1] Title.
• No number: > [!thm|*] Title. |- and empty metadata | also suppress numbering.
• Automatic number: omit metadata or use |auto. Automatic counters avoid manual numbers already used in the same scope.

Proofs and remarks

Use a proof callout for an unnumbered proof. If the opening line has no title, Proof occupies its own line and the argument starts below. A hollow square □ appears at the end automatically. A custom title or reference can sit beside the first paragraph; add an empty quoted line after the header to start the argument below it.

> [!proof]
> Let $U$ be open. Since $f$ and $g$ are continuous, both
> $f^{-1}(U)$ and $g^{-1}(f^{-1}(U))$ are open.
>
> Thus the composition $f \circ g$ is continuous.

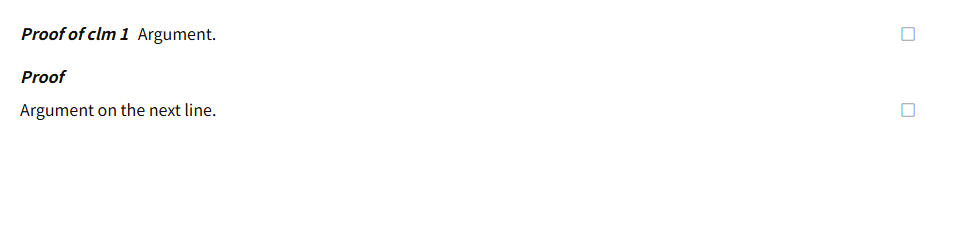

To prove a previously stated theorem, lemma or claim, put its block reference directly after the marker:

> [!proof][[Chapter one#^claim-a]]
> Here is the argument.

This displays Proof of clm 1.1, with a clickable reference. > [!proof] [[#^thm-a]] works too. The reference follows numbering settings, aliases and book chapter renumbering. Use the block ID of the mathematical environment as the target.

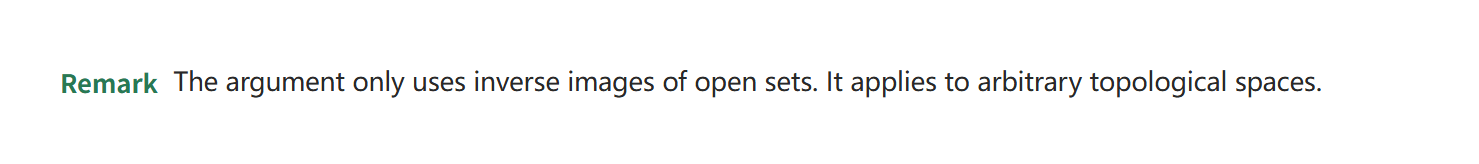

A remark callout has an inline title in a brighter shade of the selected palette's main hue, with ordinary text underneath or beside it. It has no frame, shaded background, or QED square.

> [!remark]
> The argument only uses inverse images of open sets.
> It applies to arbitrary topological spaces.

Both environments use normal note text color for their content. pf is an alias for proof; rem and rmk are aliases for remark. Add a title such as > [!proof] Composition or use the usual +/- folding syntax. They support nested callouts and multi-paragraph content. If a proof starts with a list or display equation, its title occupies a separate line; if it ends with one, the square follows on its own final line. Long proofs can continue across PDF pages, with a single square at the end.

Equation numbering

## An identity

$$
a^2+b^2=c^2
$$

^eq-example

See [[#^eq-example]].

By default, only display equations referenced in the indexed vault receive automatic numbers; unreferenced equations do not consume a number. You can number all display equations or disable automatic numbering. Inline math is not numbered.

Manual \tag{A} values are preserved. Without a manual tag, \notag or \nonumber suppresses automatic numbering. Each display-math block receives at most one automatic number; split it into separate blocks for separate references. Blocks containing multiple manual tags retain the original math without guessing a single reference number.

References and commands

Same note: [[#^thm-composition]]
Another note: [[Chapter One#^thm-composition]]
Custom label: [[Chapter One#^thm-composition|composition theorem]]
Markdown link: [composition theorem](Chapter%20One.md#^thm-composition)

Block IDs use letters, digits, and hyphens and must be unique within a note. Leave a blank line after the block and place ^id on its own line. For nested blocks, use the add-ID command to avoid assigning an ID to the wrong nesting level.

Open the command palette (Ctrl+P on Windows) and search for Academic Notes:

Type \ref, \tref, or \eqref for reference suggestions. The latter two filter to mathematical callouts or equations. Reading view and Live Preview replace reference labels; Source mode preserves the syntax. Moving the cursor into a reference in Live Preview also reveals its source. Custom aliases are preserved by default.

Numbering settings

With H2 headings, material before the first H2 belongs to section 0. If a note has no H2 headings, section numbers are omitted. Headings inside code, math, or comments do not start sections.

Equation references default to eq:{number}; mathematical callouts use {type} {number}. {type} follows the abbreviation setting, {abbr} is always abbreviated, and {name} is always the full name. {title} and {file} are also available. Figures and tables default to fig {number} and tab {number}.

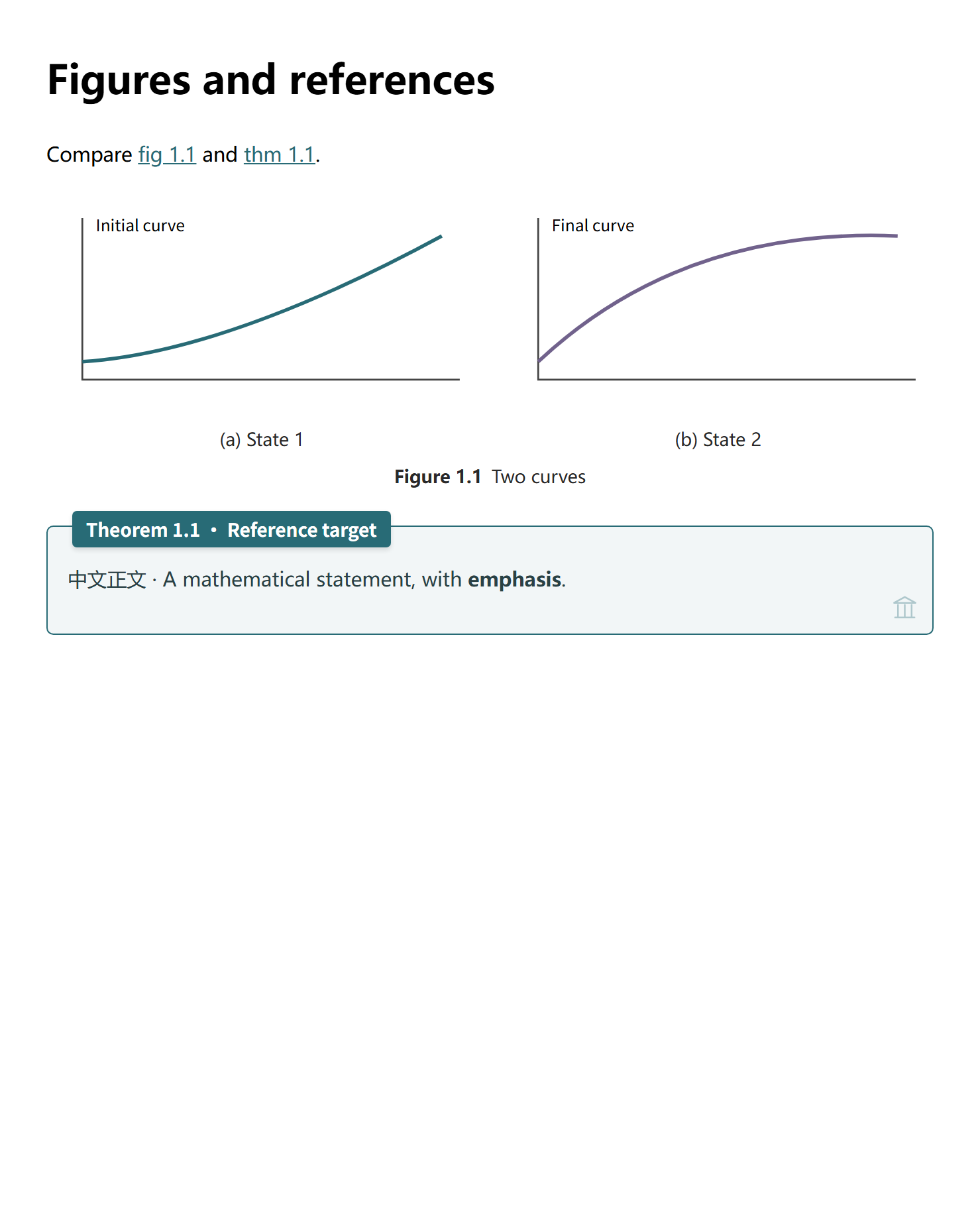

Figures, tables, and subfigures

Write captions in callout titles. Figure captions appear below images; table captions appear above three-line tables. Replace image paths with files in your vault.

> [!figure] Function curve
> ![[Attachments/curve.svg]]

^fig-curve

> [!table] Parameters
> | Parameter | Value |
> | --- | --- |
> | $a$ | 1 |
> | $b$ | 2 |

^tab-parameters

See [[#^fig-curve]] and [[#^tab-parameters]].

Subfigures must be nested inside a main figure:

> [!figure] Two states
> > [!subfigure] Initial state
> > ![[Attachments/initial.svg]]
>
> ^fig-initial
>
> > [!subfigure] Final state
> > ![[Attachments/final.svg]]
>
> ^fig-final

^fig-states

Subfigures display (a), (b), etc.; [[#^fig-initial]] can render as fig 1.1(a). Layout wraps in narrow windows. An orphan subfigure keeps its caption and produces a warning. Aliases fig, tbl, and subfig are supported. Use explicit callouts for figures and tables; ordinary image alt text and H6 headings are not captions.

Optional note properties:

---
cssclasses:
  - academic-serif
  - academic-indent
---

academic-serif uses local serif fonts. academic-indent indents ordinary paragraphs, excluding callouts and lists. academic-keep-table-style preserves the theme's table styling.

An untitled subfigure (> [!subfigure] with nothing after the closing bracket) shows only its image when it is not referenced: no letter and no empty caption row. It does not consume a letter, so the next titled subfigure starts at (a). An existing block ID alone does not require a caption. If a link actually references that ID, or a manual number is supplied, a label remains available. Explicit folding controls remain usable on screen; empty captions are removed from PDF export.

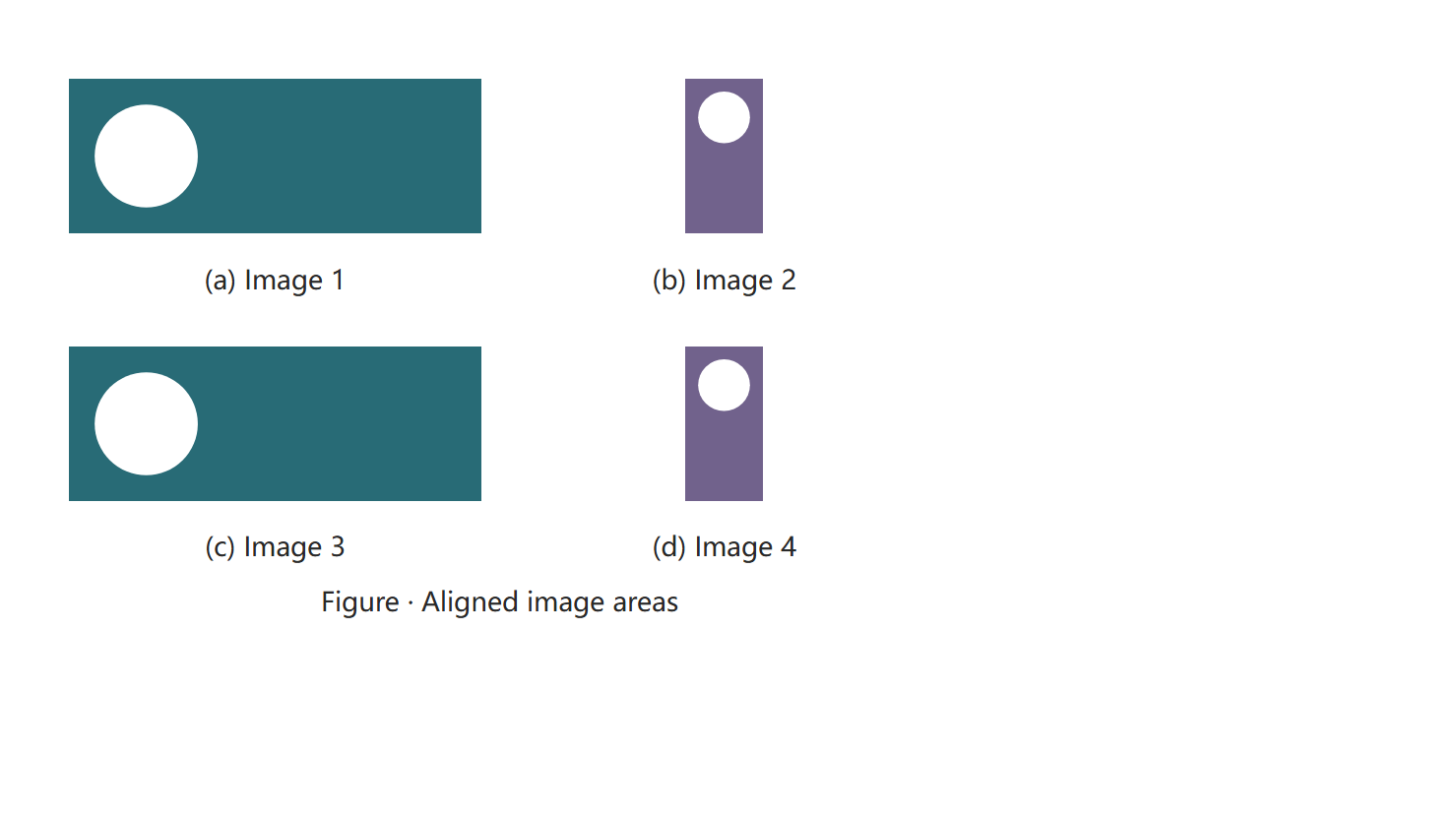

Quick insertion and group layout

Run Academic Notes: Insert academic environment from the command palette, or assign it a hotkey under Obsidian's Hotkeys settings. Choose a theorem, definition, proof, remark, single figure, subfigure group or table. Groups offer 2–12 images, a maximum column count and an optional shared image height. The command inserts before the current line (before the enclosing quote block when inside a callout), preserves existing text, selects the title and generates block IDs that do not collide with the current note. Replace the sample image paths with your own attachments. Edit the generated Markdown freely afterward.

Place group options on the outer figure, for example:

> [!figure|cols=auto height=180] Comparison
> > [!subfigure] Wide image
> > ![[Attachments/wide.png]]
>
> > [!subfigure] Tall image
> > ![[Attachments/tall.png]]

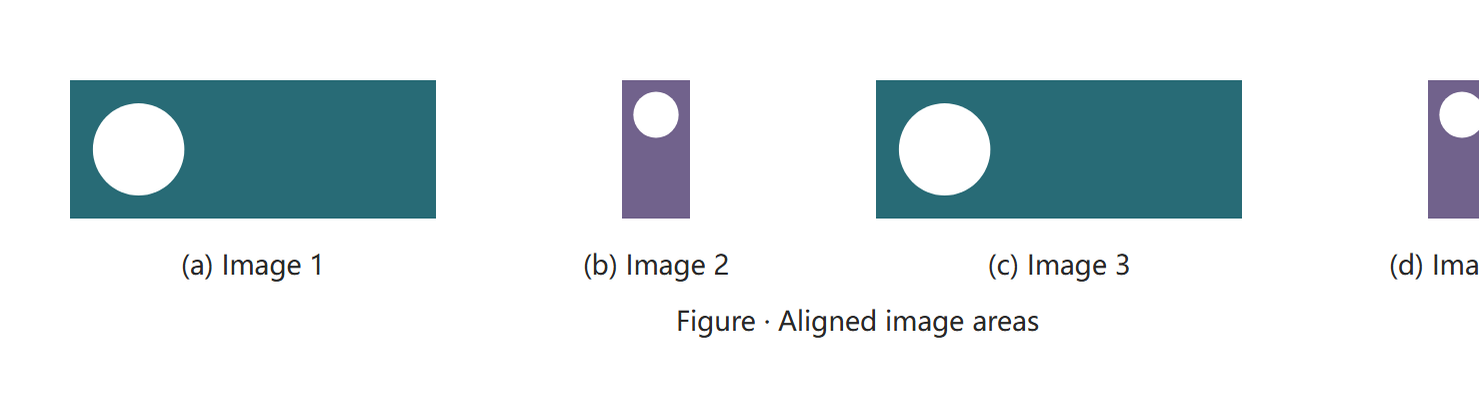

• cols=auto: two images use up to two columns, four use up to four, and other counts use up to three. Four columns switch directly to two, then one; four-image groups never wrap as 3+1. Rows retain equal cell widths; a final partial row is centered.
• cols=1, 2, 3 or 4: cap the column count. Narrow figures still reduce columns; a four-column cap also skips three columns. The figure's own width controls wrapping, including split panes and PDF pages.
• height=180 or height=180px: use the same target height of 180 pixels for every subfigure. Images stay proportional and fully visible. If the widest image cannot fit its column, the entire group uses the same reduced height. This explicitly overrides individual ![[image.png|300]] widths inside this group. It is a shared image height, not a crop or a guarantee of equal visible artwork height. Accepted range: 16–1200 pixels; PDF export proportionally reduces oversized groups to fit the page, subject to the picture-pagination limits below.
• Omit height to preserve individual image-width settings. These options apply to subfigures inside this group, not ordinary images. Invalid layout values are ignored. Combine with existing numbering metadata, e.g. |A.1 cols=2 height=180 or |* cols=2.

For abbreviation expansion, the optional LaTeX Suite snippets provide subfig2, subfig3, subfig4, subfig6, athm, aproof and aremark. Merge the entries into your existing snippets array, type a trigger on a blank top-level line and press Tab; further Tab presses move between fields. See LaTeX Suite's instructions. Snippets do not create IDs; use Academic Notes' add-block-ID command when a reference is needed. The built-in insertion command needs no other plugin.

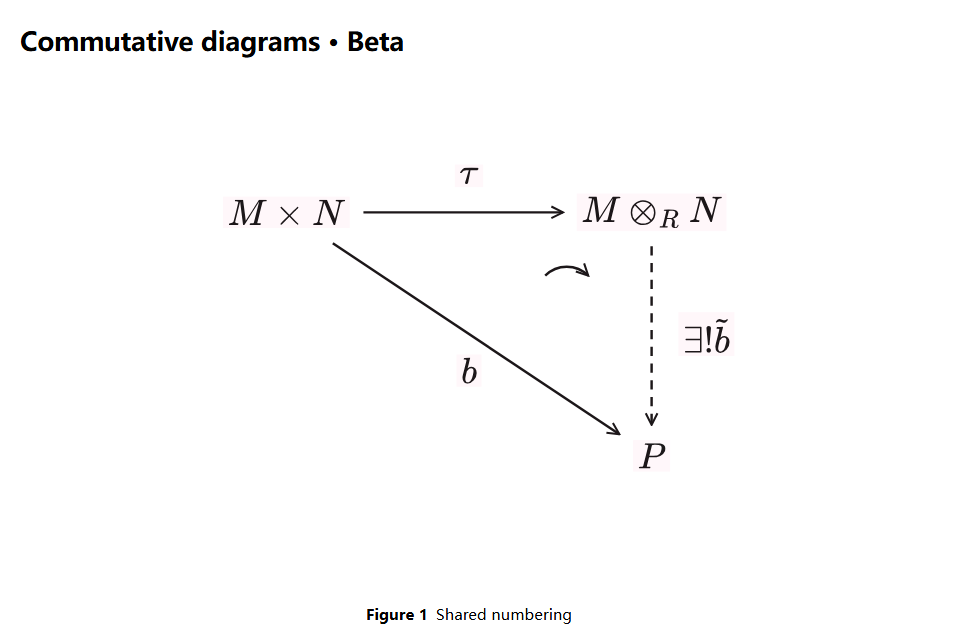

Commutative diagrams (Beta)

1. Run Academic Notes: Insert or edit commutative diagram (Beta) from the command palette. Choose a 2×2 or 3×3 grid.
2. Click a point to enable/select it, then enter its Node formula, such as M \otimes_R N. Disable a point with Enable selected node. Labels accept bare TeX such as \alpha, $\alpha$, or \(\alpha\). Obsidian's SVG math is retained when available; a bundled local TeX/AMS-to-SVG renderer handles hosts that return CommonHTML instead. No extra plugin or network connection is needed.
3. Choose Connect arrows, then click the source and target. Tap an arrow in the preview or its list button to select it, enter a label, choose a solid/dashed line, or move the label above/below or left/right. Delete selected arrow removes that arrow. Undo restores recent changes, including nodes removed by shrinking the grid.
4. To show that a triangular diagram commutes, connect A → B, B → C and A → C, then choose Mark commutativity and click A, B, C in that order. A short quarter-circle arrow appears inside the triangle. Tap the curve or its list button to select it; Delete selected commutativity marker removes it. Removing a required node or arrow also removes its marker. Undo restores recent changes.
5. Optionally enter a Caption, then click Save diagram. The result is stored in an academic-diagram JSON code block. Use Edit diagram to reopen it, or Delete diagram to remove it directly from reading view or Live Preview, without opening source mode.

The Beta supports straight arrows, one arrow per ordered pair, 2×2/3×3 grids, single-line labels up to 200 characters, and up to 12 triangular commutativity markers. The three nodes must be non-collinear and the three directed arrows must exist. Markers express your intended equality; the editor does not prove it. Curves are placed automatically inside the triangle; manual placement and more general path markers are not yet supported. Formulas and arrows share SVG coordinates, including in narrow mobile views. Diagrams render locally in reading view and Live Preview and are preserved in HTML/PDF exports.

Standalone diagrams share the Figure counter with ordinary pictures, in source order. A caption is optional. New diagrams receive a unique ^fig-diagram-N block ID; reference them with [[#^fig-diagram-1]] or a cross-file link. For older diagrams, add an ID after the code fence manually or with the add-block-ID command. A diagram already inside a figure or subfigure callout uses its enclosing caption and is not counted twice. Deleting a standalone diagram also removes its adjacent owned block ID. A complete editable example is in examples/commutative-diagram.md.

TikZ with the optional TikZJax plugin

Install and enable TikZJax from Obsidian's Community plugins. Use Insert academic environment → TikZ (TikZJax) for a starter block, or write:

```tikz
\usepackage{tikz}
\begin{document}
\begin{tikzpicture}
  \node (A) at (0,0) {$A$};
  \node (B) at (3,0) {$B$};
  \draw[->] (A) -- (B) node[midway,above] {$f$};
\end{tikzpicture}
\end{document}
```

TikZJax also offers tikz-cd for handwritten commutative-diagram source; follow its documentation for supported packages. Academic Notes waits up to 60 seconds for its SVG, preserves glyph references across multiple diagrams/chapters, and includes the completed drawing in HTML/PDF. If TikZJax is missing or rendering does not finish, export stops with an explanatory error. Put a tikz block inside a figure callout to add a numbered caption.

Appearance

Light palettes: Forest (default), Sakura, Mint, Sky, Mauve, Golden, Cherry, and Prussian. Dark palettes: Radiation (default), Vampire, and Abyss. Each palette assigns colors by environment type. Light/dark mode follows Obsidian's current mode, which can itself follow the operating system.

The follow Obsidian theme colors option uses the theme's public accent for definitions, blue for theorems/claims, purple for lemmas, green for propositions, cyan for corollaries, orange for examples, and secondary text color for solutions, mixed with normal text color. Remark titles use a brighter tone of the definition color; proof titles use normal text color. It does not choose a preset automatically or read the operating system's accent directly. Select a fixed palette to control border and fill colors independently of the theme.

Use normal text color inside callouts makes framed callout text match ordinary note text. When disabled, 36% of the callout color is mixed in. Proof and remark content always uses normal text color. Links and code keep their own styles.

Framed callouts mix 6% callout color with 94% white in light mode, or 8% callout color with 92% neutral dark gray in dark mode. Nested callouts use their own colors. The corner decoration can be hidden; this does not hide a proof's QED square. The optional Style Settings plugin can adjust border width, corner radius (0 means square corners), motif size and opacity.

Under Settings → Academic Notes → Environment customization, select an environment such as Theorem, Definition or Axiom. Enable a color override and choose a color separately for light and dark modes. Turning its switch off restores the selected palette. The accent controls the border, title background and subtle same-hue fill; title text automatically uses black or white for contrast. Proof and Remark keep their unframed layout, and their accent changes only the title.

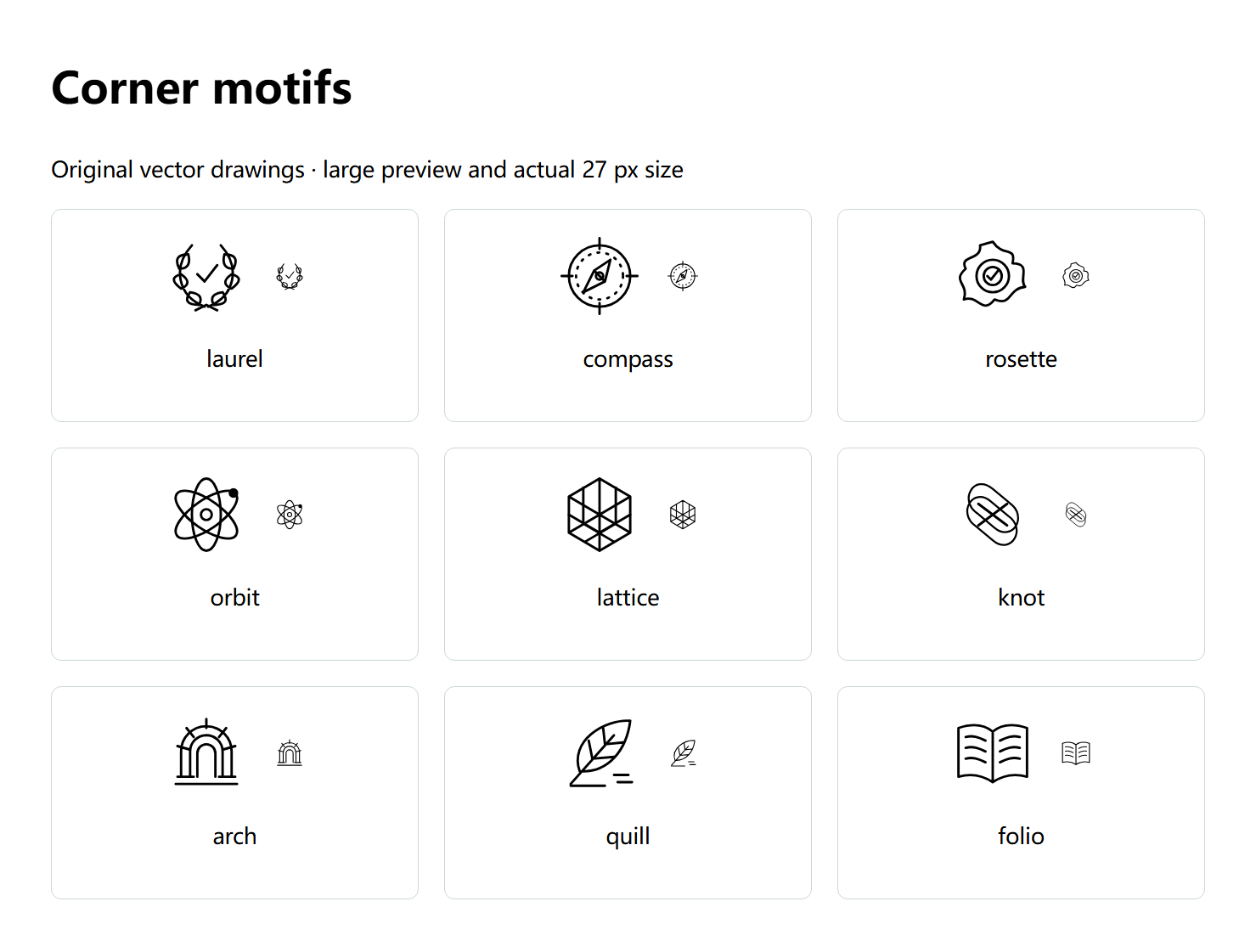

Each framed environment also has independent light/dark motif colors and a motif selector: keep the original drawing, hide it, or choose one of nine fine-line vector designs. Click a gallery tile to select it; the callout preview shows the current mode. Reset this environment clears only the selected environment's overrides. The global hide-decoration option takes precedence and never hides the proof's QED square. Custom appearance is preserved in PDF exports, including exports with theme capture disabled.

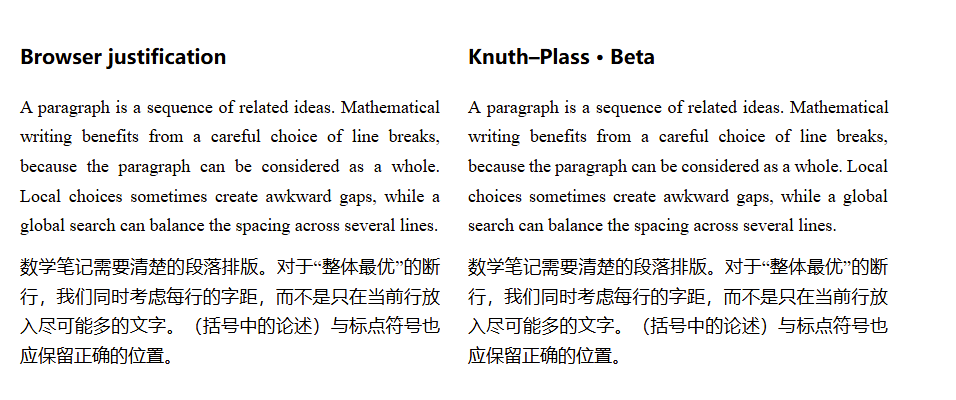

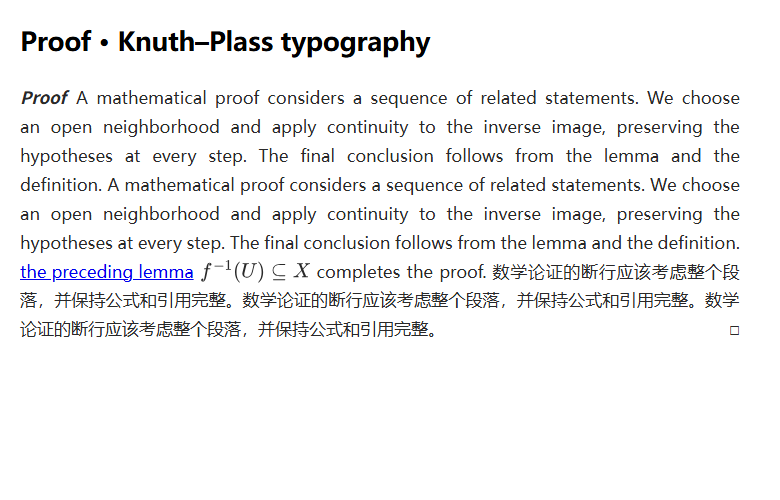

Paragraph typography (Beta)

Open Settings → Academic Notes → Paragraph typography (Beta). The three KP switches and the first-line indentation option are off by default and work independently:

Knuth–Plass considers line breaks across a whole paragraph and adjusts spacing to reduce uneven lines. It supports basic Latin text and CJK characters with common Chinese punctuation rules. Inline links and formulas remain intact; they are treated as units that cannot be split across lines. Enable the Reading view switch, open a note in Reading view, and compare its paragraphs at different window widths. No Markdown syntax changes are needed, and the source note is preserved. Source mode keeps its normal editing layout; HTML snapshots keep responsive browser layout.

Proof, Remark, theorem, definition and other mathematical callout bodies use the same solver. Inline headings reserve space on the first line; subsequent lines use the full width. Proof reserves space for a single final QED square, including across PDF pages. Long or multi-line floating headings retain native layout. Optimized non-final lines fill their available width; the final line keeps natural spacing. When inline formulas make fitting difficult, a bounded second pass evaluates the actual visible spacing. Small rendered-width differences are corrected through flexible gaps. At a formula-ending row, presentation wrappers trim theme end margins without modifying the original formula nodes or LaTeX spacing. Formulas remain indivisible: one wider than the remaining space moves to a later line; oversized formulas or unsupported paragraphs retain native layout.

This Beta does not add automatic word hyphenation. Lists, tables, headings, captions, image paragraphs, explicit line breaks, and right-to-left or vertical text use normal browser layout. Complex markup, paragraphs that cannot fit, and content beyond the processing limit also fall back to normal layout; long notes may therefore be only partly optimized. The result depends on the text, font and width, so it will not improve every paragraph.

The Live Preview switch keeps a narrower scope for ordinary editable prose: it handles paragraphs written as one source line, surrounded by blank lines (or file boundaries), without inline Markdown formatting. Math, links, emphasis and multiline-source ordinary paragraphs keep native line breaking with browser justification while the Live Preview KP switch is enabled. Active prose also keeps browser justification. Lists and code keep their original layout. This fallback is not a global KP optimization. Read-only mathematical callout bodies also support inline formulas and links. Entering a callout restores its native body; an editable title remains under Obsidian's control. An inactive editable title alone does not exclude its read-only body from KP. A native caret still inside the callout defers further updates even after focus changes. Touch scrolling and momentum must settle before layout resumes. Copy selections defer reflow, and disabling the switch or removing the extension restores native content. All selected paragraphs and IME composition use native editing. Only visible prose is optimized, with bounded work; very large notes retain native layout. It never inserts source line breaks or changes note text. Reading/PDF retain their broader inline-content support.

Table of contents

Write [toc] as a standalone paragraph, or specify a depth:

```academic-toc
3
```

Depths 1–6 are supported; omission uses the setting. Note TOCs are clickable. PDF TOCs use measured printed page positions and include bookmarks.

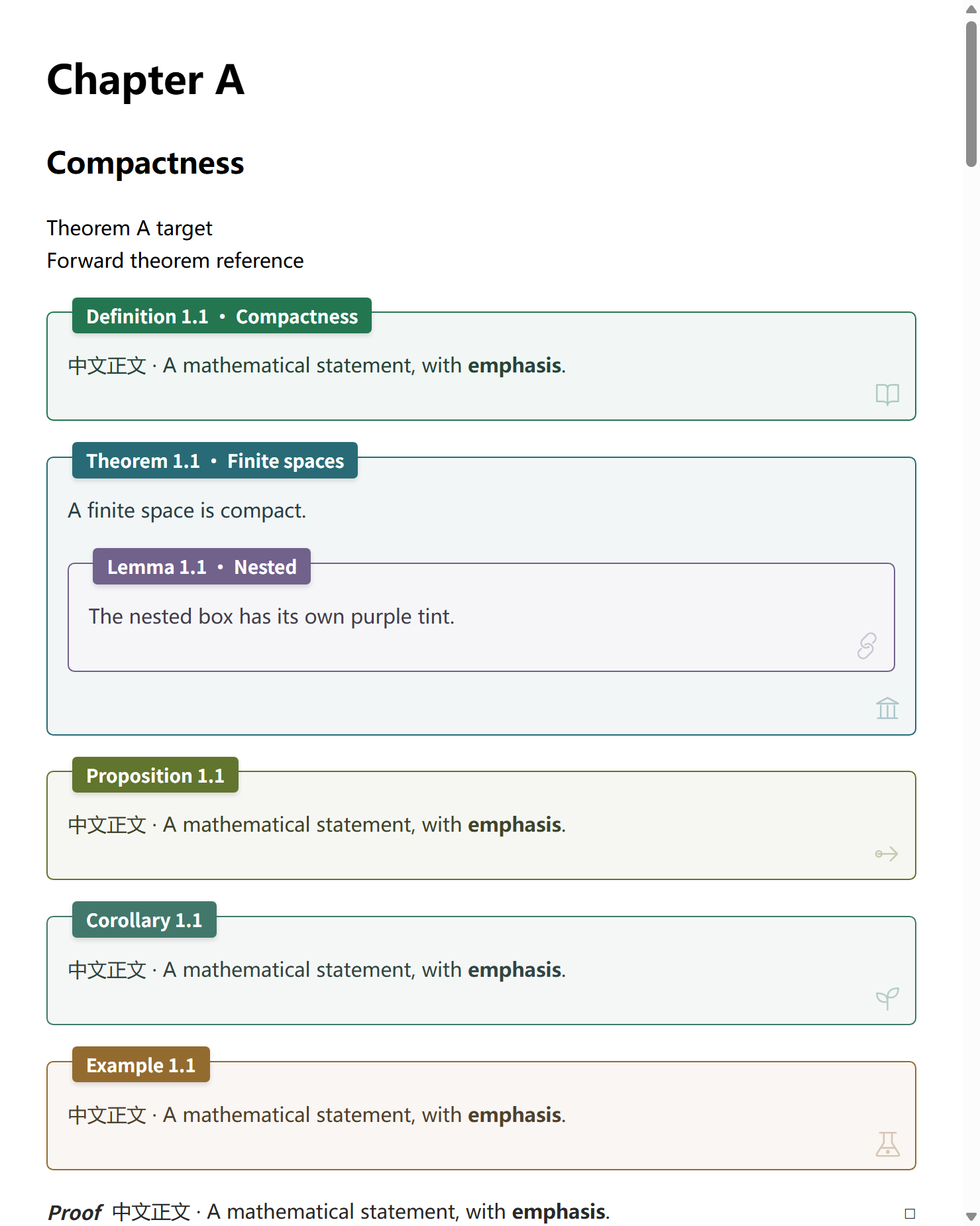

PDF, HTML, and book export

Use the export commands listed above. HTML is a static snapshot; re-export after editing a note. The multi-note selection dialog lets you choose notes, change their order, and edit chapter titles.

Alternatively, create a book manifest note:

---
phb-book:
  title: Analysis Notes
  subtitle: A sample collection
  tocDepth: 3
  files:
    - Chapter One.md
    - path: Chapter Two.md
      title: Continuity
---

phb-book is a chapter list in the note's YAML properties. It is unnecessary for single-note export or the multi-note selection dialog. Open the manifest and run the manifest PDF or HTML command. Paths are relative to the vault root; list order determines chapter order. The manifest itself is not included as a chapter.

Book numbering supports chapter.section.number (default, e.g. 2.3.1), chapter.number (continuous per chapter), or preserve vault numbering (which may repeat across chapters). In chapter.section mode, material before the first H2 or in a chapter without H2 belongs to section 0. Renumbering affects export copies only. Include cross-file targets in the export; otherwise the report flags unresolved references.

Enable theme-and-snippet capture to include current CSS, or disable it to use built-in callout, figure, and print styles. Both retain the current light/dark mode and palette. Collapsed callouts expand, long callouts may span pages, and wide SVG math scales to the available width.

Outputs default to _exports/ inside the vault. Only vault-relative output directories are accepted; absolute paths and .. are rejected. Exports include timestamped HTML snapshots, snapshot reports, PDFs, and pagination reports. TOC calibration allows up to six passes. Export stops if calibration does not converge or if image, math, font, or internal-link validation fails.

Picture pagination

PDF output uses A4 pages. Figures, subfigure groups and captions stay together when they fit on one page. A group that does not fit in the remaining space moves to the next page. Taller drawings are proportionally reduced to fit the usable page height; individual images are protected too. Very long textual legends can span pages once reducing the pictures is insufficient. The pagination report includes mediaPagination counts for protected groups, scaled groups and remaining oversized groups.

Experimental figure layout

On desktop, open Settings → Academic Notes → Figure layout priority (experimental). The default is Keep whitespace (off). Choose a priority:

Movement advances at most three consecutive ordinary paragraphs below a standalone figure/fig callout, leaving the complete picture and caption on the next page. It stops at headings, mathematical environments, lists, tables and other pictures. Figures inside environments are not moved. The experiment measures actual PDF boundaries and rejects changes that split a figure or advanced paragraph; captions retain their font size. Source numbering and notes stay unchanged.

Set Maximum figure adjustment attempts to 1, 3, 6 (default) or 10. This is a total limit for the export. If another adjustment is needed after the limit, all experimental adjustments are undone and the normal page gaps remain. Changes are checked again after TOC calibration; invalid boundaries or unstable calibration also restore the normal layout. If normal TOC calibration itself fails, export still reports an error. The pagination report's figureLayout records attempts, shrinking, movement, skips and fallback reasons.

This is a bounded experiment for explicit figure callouts. Standalone diagrams, unwrapped images, tables and text-heavy figures do not float automatically; the normal page protection remains active. HTML snapshots retain source order. A synthetic sample is in examples/figure-floating.md.

Privacy and permissions

• Markdown is indexed locally to resolve cross-file references, with configurable exclusions. No account, telemetry, or developer server is involved; note contents are not sent to the developer.
• The installed plugin does not install software, launch external commands, or download runtime dependencies. Printing and PDF post-processing run locally.
• The installed plugin does not use the Node filesystem API. PDF printing loads the snapshot as an in-memory Blob in an isolated hidden window; it does not create temporary HTML files outside the vault. Node integration, document scripts, network requests, local-file requests, and permission requests are disabled in that window. External hyperlinks can remain in PDFs without being visited during export.
• To preserve appearance, snapshots may read locally loaded CSS, fonts, and images, including local files outside the vault referenced by a theme. They are embedded in the local snapshot. Disabling theme capture reduces theme-resource access.
• Final exports and reports are written only to the configured directory inside the vault. Reports may contain paths, note titles, and warnings; review them before public sharing. Do not publish your local data.json settings file.
• Save remote images to the vault first. Export does not download remote images or CSS. Obsidian's and other plugins' network behavior is outside this plugin's control.
• Indexing and export do not rewrite notes. The add-ID, reference, environment and diagram commands edit the current note when invoked; rendered diagram edit/delete buttons update that diagram in the same note. Diagram data stays in the note's code block. TikZJax is an independently installed optional plugin; consult its documentation for its own permissions and behavior.

Troubleshooting

Record a device-specific layout or scrolling issue

If Proof lines look uneven or Live Preview stops scrolling, open the affected note and run Record layout and scrolling diagnostics (90 seconds). First leave the affected paragraph visible in Reading view for a few seconds, then switch to Live Preview, edit the Proof title/body and try scrolling. Keep the same note open. Run Stop and save layout and scrolling diagnostics, or wait for recording to stop automatically after 90 seconds.

A separate _exports/academic-layout-diagnostics-*.md is written immediately and every 15 seconds, using your configured vault export folder. If restarting the app is necessary, the last saved checkpoint remains available. Send this report from iPad and optionally desktop to compare the two devices. No Mac or remote developer tools are required. Reports are ordinary Markdown notes containing a JSON code block, created through the vault API and verified by reading back the saved content. Look in the vault root, not the plugin folder. The existing general diagnostics offer Start/Stop, View recording, and Open saved report buttons; the recording can be viewed in-app even if a file write fails. Older .json recordings may be hidden by Obsidian's unsupported-file filter.

Recording is off until you run the command. It observes visible callout geometry, computed font/layout/scroll styles, KP markers and visible right-edge gaps, selection location, passive touch/scroll events, event prevention by other handlers, DOM mutation counts and plugin layout activity. Viewport resize events and anonymous hit-test results help check keyboard/overlay problems; during recording, touch/pointer events outside the selected note are classified without recording their content. Logs are bounded and listeners stop with recording or plugin unload. It does not record note text, formula source, file names, block IDs, HTML, input values or error messages, and does not upload anything. It never changes the note, theme, KP switches or editor selection. Font/style and device/version metadata are included. Review the JSON before sharing it.

A native paragraph without KP markers uses browser line breaking. All KP switches remain off by default; check the Reading and Live Preview switches separately. Diagnostics gather evidence and do not themselves fix an iPad scrolling freeze.

The export progress window shows errors. Afterwards, open diagnostics and inspect errors and lastPdfExport. Use Save diagnostic JSON to export folder to save diagnostics, normally to _exports/academic-diagnostics-*.json. Error history lasts for the current plugin session, so save it before reloading.

pdf.interfaceAvailable only checks whether the interface exists; it does not prove export succeeded. A successful export creates .report.json; on failure, a .phb.html snapshot may already exist. For more logs, open Developer Tools (Ctrl+Shift+I on Windows) and search the Console for [Academic Notes].

The minimum app version is an API requirement, not a guarantee that every OS, theme, and plugin combination has been tested. Mobile support is checked with a mock Obsidian host and a no-Node/no-Electron load test of the release bundle; an actual iPad installation still needs acceptance testing. Native PDF access depends on Electron interfaces exposed by Obsidian desktop and should be retested after application updates.

Development

Use Node.js 22 or later:

npm ci
npm test
npm run lint
npm run build
npm run test:electron
npm run check:release

npm ci installs development dependencies, including the Electron test runtime; the installed plugin never runs it. npm run dev watches source files. TypeScript lives in src/; esbuild bundles pdf-lib, the local MathJax SVG fallback and export CSS. Distribution requires only main.js, manifest.json, and styles.css.

Styles are maintained in src/styles/callouts.css (environments and TOC), src/styles/ui.css (plugin controls), src/styles/document.css (export layout), and snippets/academic-layout.css (figures and tables). The build flattens CSS nesting and uses the same compiled callout styles in the release and export snapshots.

examples/ contains synthetic notes and images, including proofs and remarks. Native tests launch a hidden standalone Electron window, save README screenshots to screenshots/, and write PDFs and reports into output/. They verify Chromium printing and styles, but do not replace testing inside Obsidian. Set ACADEMIC_TEST_THEME to a local theme stylesheet path for additional compatibility checks. Linux CI uses Xvfb and configures Electron's sandbox helper; see ci.yml.

For releases, update package.json, the lockfile, manifest.json, versions.json, and the changelog together. Push a tag matching the manifest version. GitHub Actions tests and builds the plugin, checks reproducibility, and creates a draft release with three installable assets. See RELEASING.md.

License

MIT. Dependency licenses are listed in THIRD-PARTY-NOTICES.md.
